Campaign - Faulty Coolant Hose Sealing O-Ring: Overview

Code: UP

April, 2000

Subject:
2000 Model Volkswagen Jetta Replace Coolant System Sealing Ring

Dear Volkswagen Dealer:

This is to inform you of the initiation of a service action campaign involving some 2000 model year 1.8T, 1.9LTDI and 2.0L Jetta vehicles. The campaign involves the replacement of a coolant hose coupling O-ring.

Problem Description
Volkswagen has found that the sealing ring inside the coupling, connecting the lower radiator hose to the radiator, may not seal properly, causing the potential of coolant seepage.





Vehicle Identification Number Range
The vehicles affected are within the vehicle identification number range as shown.

Please note that the above VINs represent the lowest and highest serial numbers of affected vehicles. Use of the OTIS campaign inquiry system will allow you to determine whether or not a particular vehicle, within the above VIN range, requires the corrective work.

Note:
Volkswagen will not reimburse under this action any duplicate repair work or a repair outside the VIN range.

Pre-Corrected Vehicles
Most vehicles within the above VIN range have already been corrected by the Factory or at Port facilities prior to shipment to dealers. It is, therefore, imperative that you do not start the repair work without first verifying in the OTIS system if the vehicle needs the repair.

Owner Notification Mailing
Volkswagen of America, Inc. will mail first class notification letters to all known owners of affected vehicles on or about April 13, 2000. A copy of the owner letter is enclosed in this circular.

Vehicle Allocation
By separate mail and prior to owner notification, we will furnish you with a computer list containing information for vehicles located within your area of responsibility.

Work Procedure
^ Raise vehicle on hoist

^ Remove lower sound dampening pan below engine

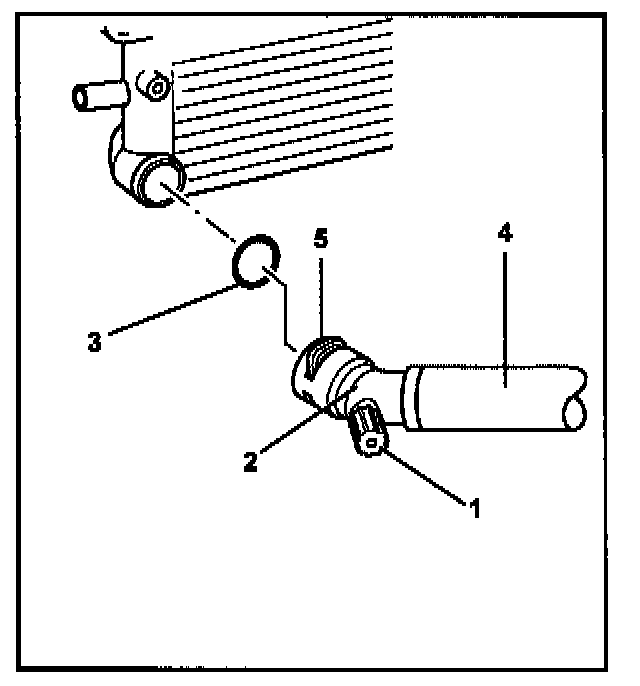

<= Clamp off lower radiator hose -4-

<= Unscrew radiator drain plug -1- and drain coolant into drain pan

<= Remove retaining clip -5- and disconnect lower radiator hose coupler -2-

<= Remove 0-ring -3- from inside coupler -2- and discard

<= Install new 0-ring -3- (1JM 121 700) inside coupler -2-

<= Reconnect lower radiator hose coupler -2- and secure with retaining clip -5-

<= Tighten drain plug -1-

<= Remove clamp from lower radiator hose

^ Lower vehicle on hoist





^ Refill cooling system with new coolant mixture; use antifreeze, part number ZVW 237G12, and mix 50/50 with water prior to filling

NOTE:
System must be filled with VW-supplied antifreeze only, part number ZVW 237G12

^ Do not spill drained coolant fluid

^ Store drained coolant fluid in appropriate container in accordance with your state, local or Canadian requirements





^ Dispose of drained coolant fluid according to your state, provincial or local requirements as appropriate

^ Fill expansion tank with coolant up to Max. mark

^ Turn off A/C (if equipped) and turn on heater

^ Start engine and run for 3 minutes at approximately 2000 RPM

^ Check for leaks

NOTE:
Radiator fan must come on at least once

^ Check coolant level and top-up if necessary

^ Reinstall lower sound dampening pan below engine

NOTE:
When engine is at normal operating temperature, coolant level must be on Max. mark; when it's cold, between Min. and Max. marks

Parts Information
We will automatically ship to you an initial supply of the modified O-rings, part number 1JM 121 700.

Additional parts must be ordered by you from your depot. Please refrain from over-ordering; otherwise, you may be required to return excess inventory.

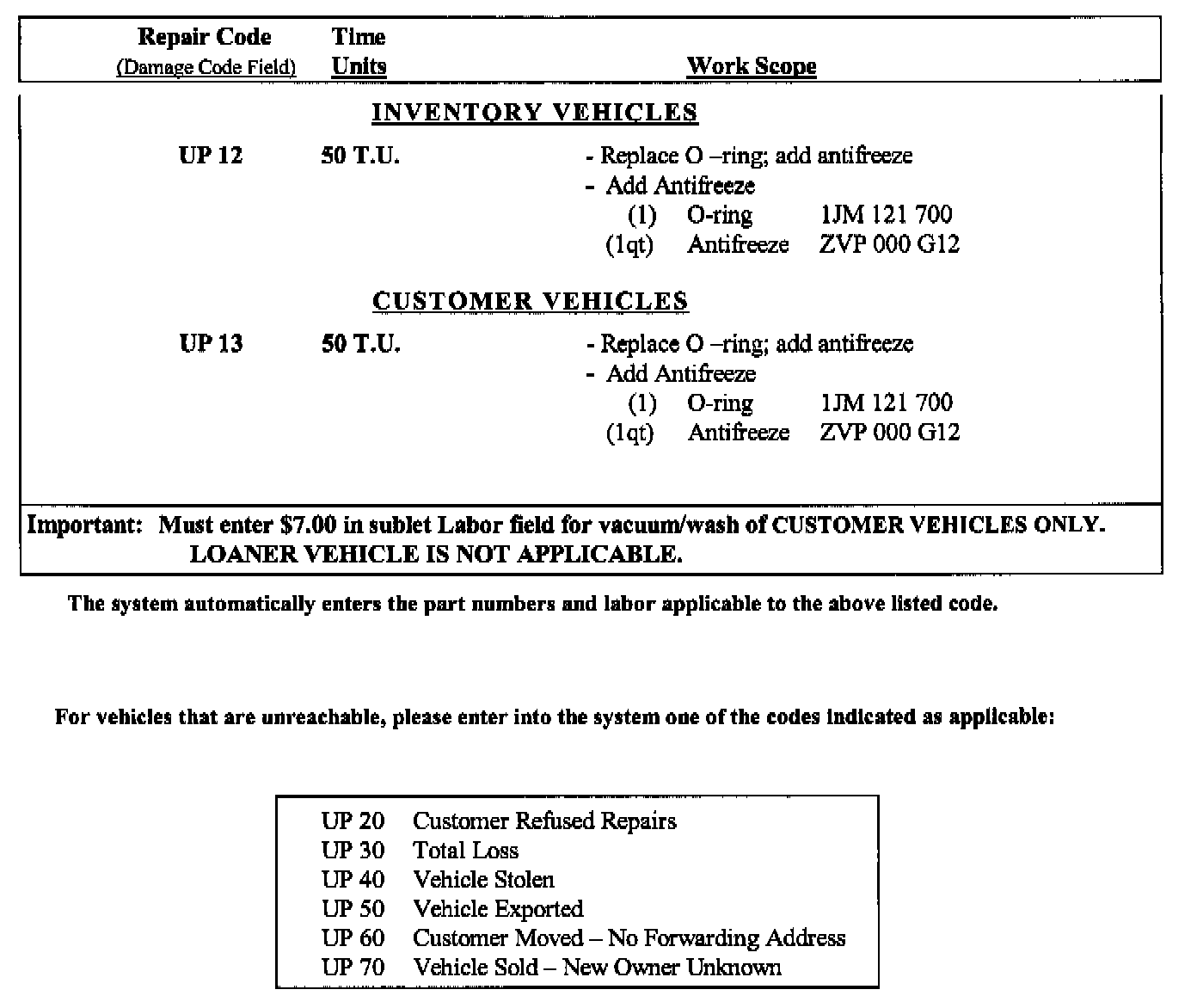

UP Data Entry Procedure
