Fuel Gauge Sender: Service and Repair

Fuel Gauge Sensor, Removing and Installing


Removing
- Remove fuel delivery unit.

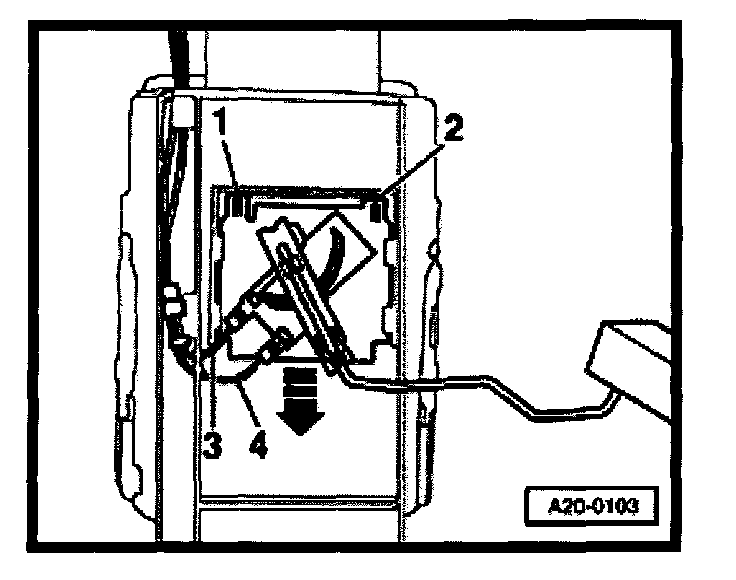

- Release and pull off the terminals for wires -3- and -4-.
- Lift retaining tabs -1- and -2- with a screwdriver and pull fuel gauge sensor out downward -arrows-.

Installing
- Insert fuel gauge sensor in the guides on the fuel delivery unit and push up until it engages.
