Body Dimensions - New Information

Group: OO

Number: 99-01

Date: Jan. 8, 1999

Subject:
Body Dimensions

Model(s):
New Beetle 1998

This Bulletin includes new information which will be integrated into the Repair Manual at the next update.

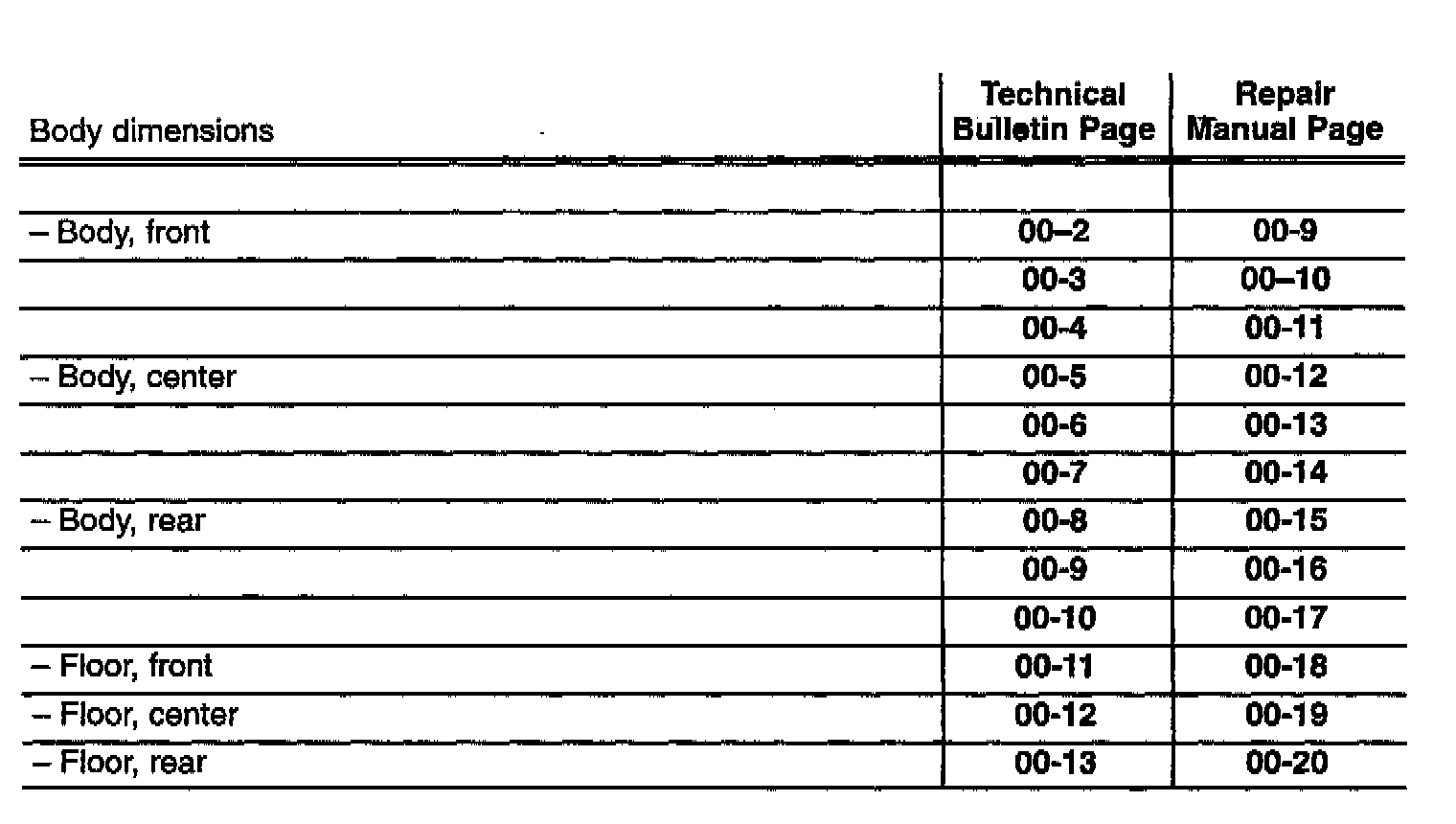

Contents





Body Dimensions





Body, front

Dimension between suspension struts.

Dimension between long members.

CAUTION!
Dimensions only given for checking purposes. The straightening fixture dictates final figure.





Dimension between fender supports under windshield.

Dimension between tender supports.

CAUTION!
Dimensions only given for checking purposes. The straightening fixture dictates final figure.

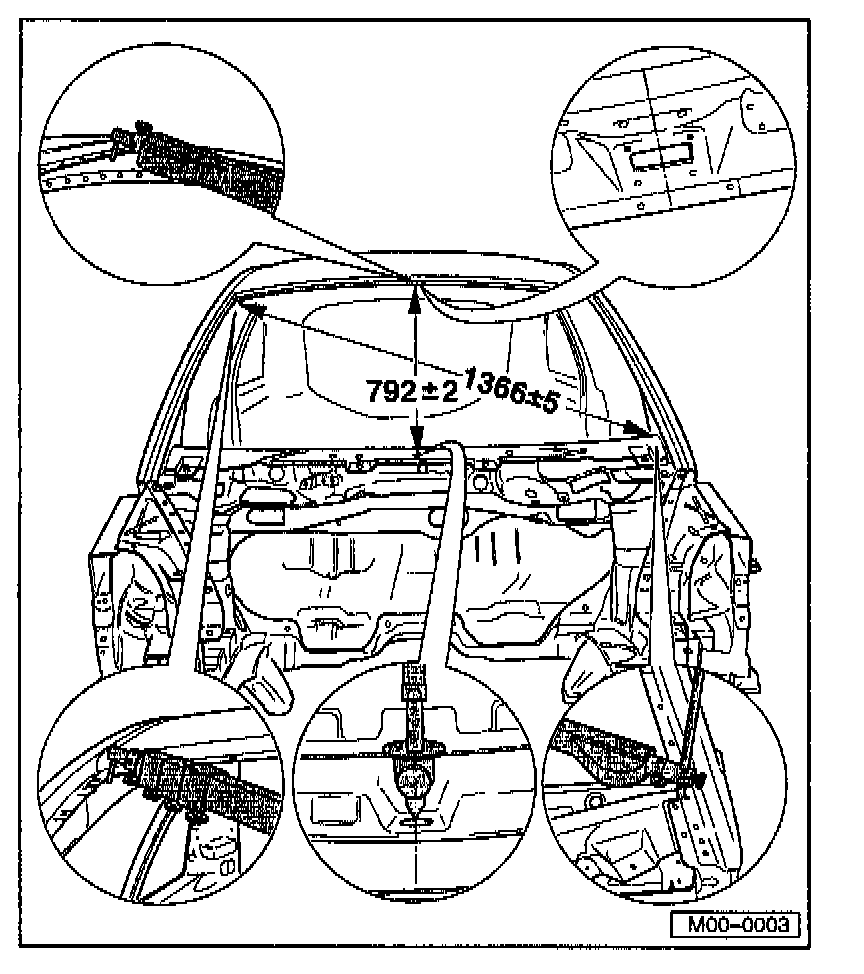

Windshield opening, diagonal dimension.

Windshield center, from plenum to roof dimension.

Body, center

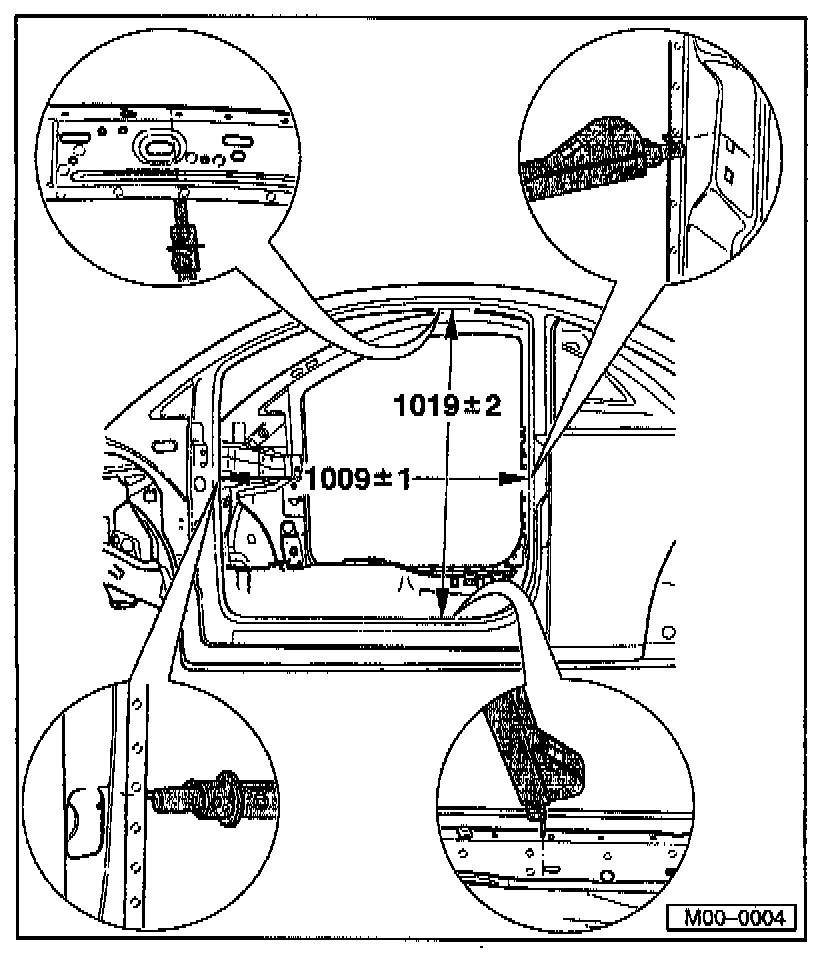

Door opening

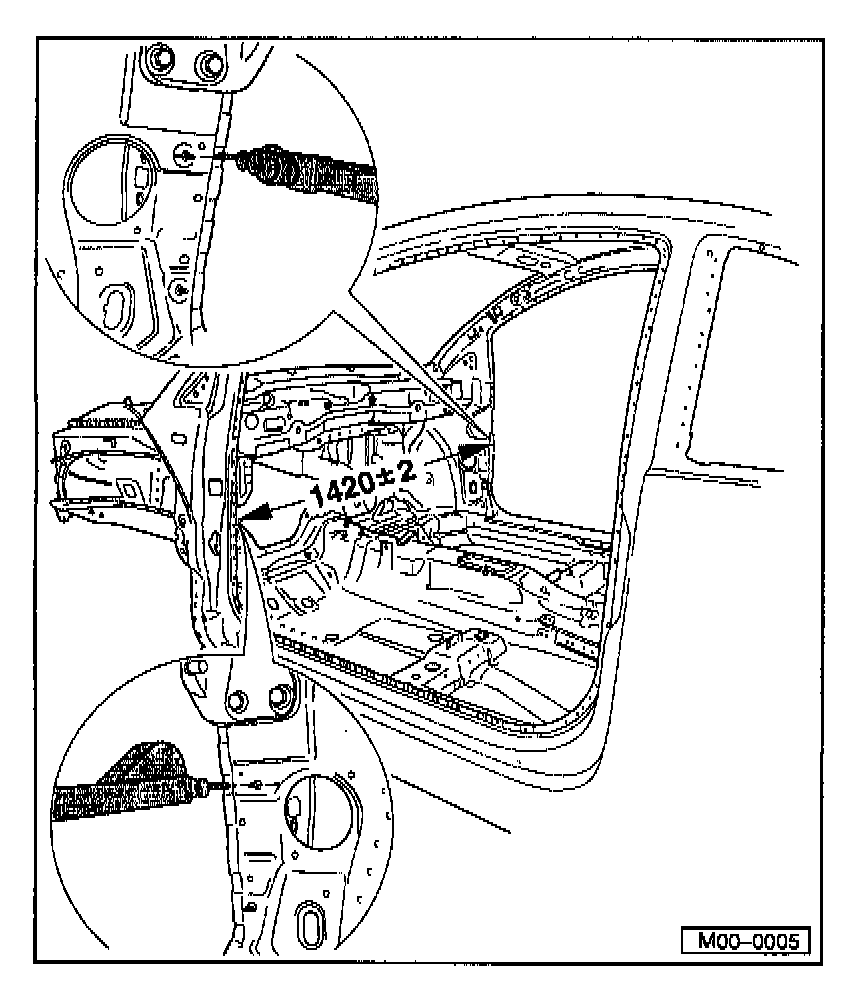

Dimension between A-pillars

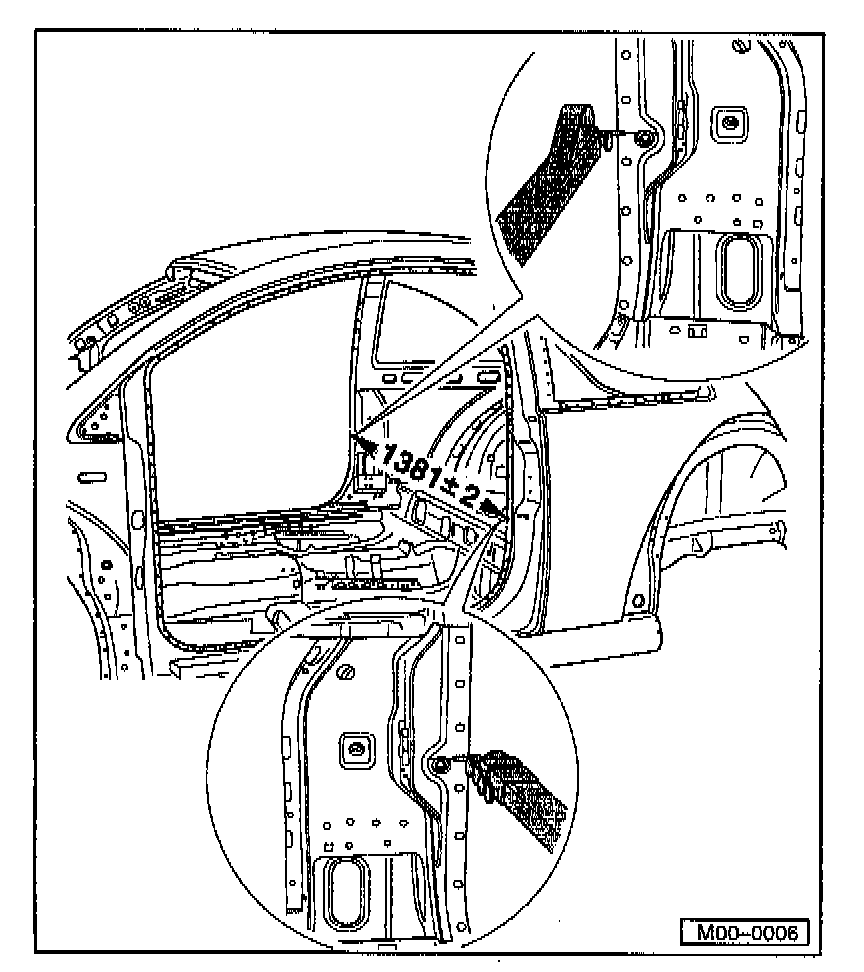

Dimension between B-pillars

Body, rear

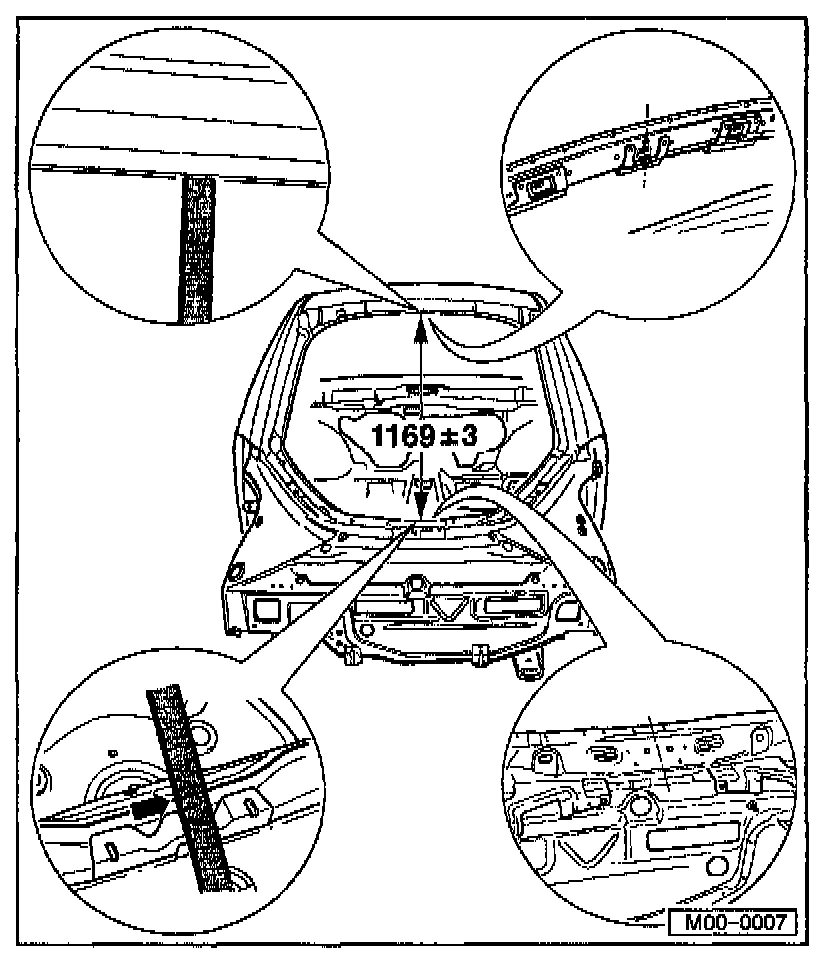

Hatch opening, height dimension





Hatch opening, width dimension

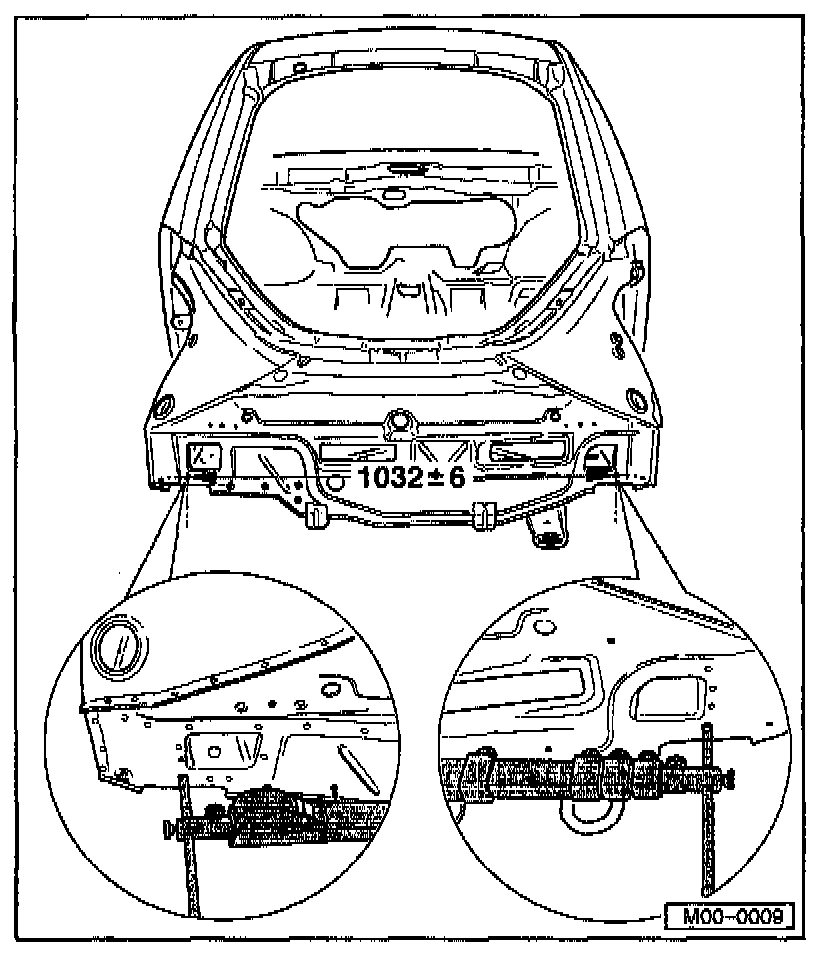

Dimension between long members.

CAUTION!
Dimensions only given for checking purposes. The straightening fixture dictates final figure.

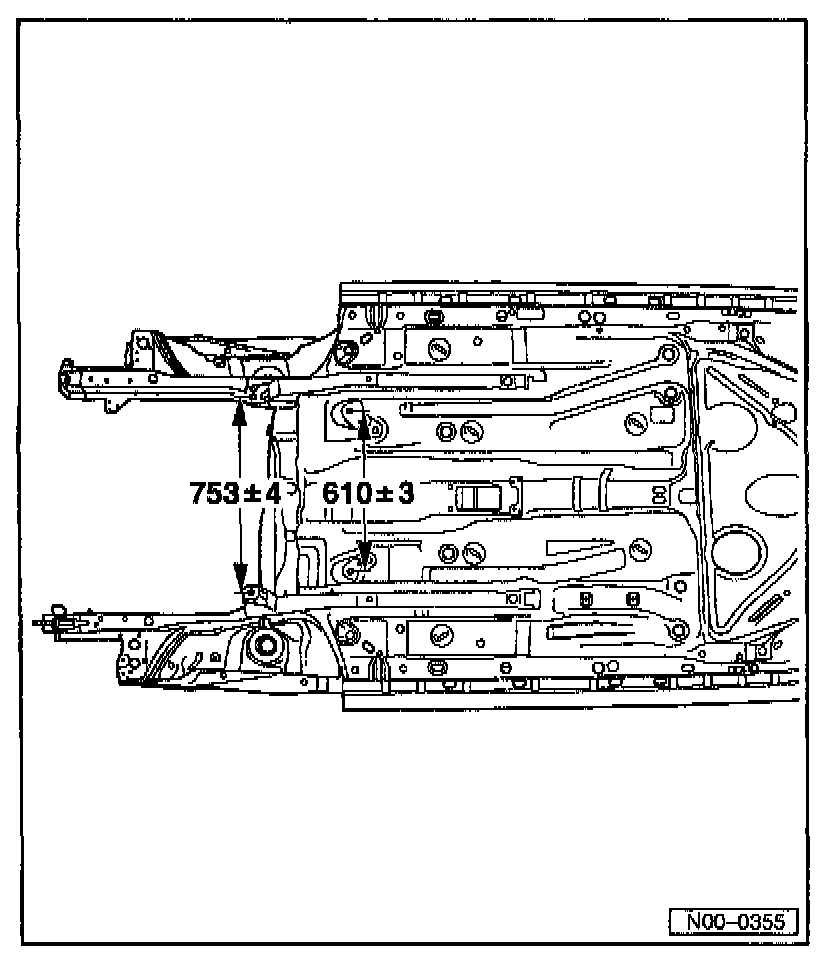

Floor, front





CAUTION!
Dimensions only given for checking purposes. The straightening fixture dictates final figure.

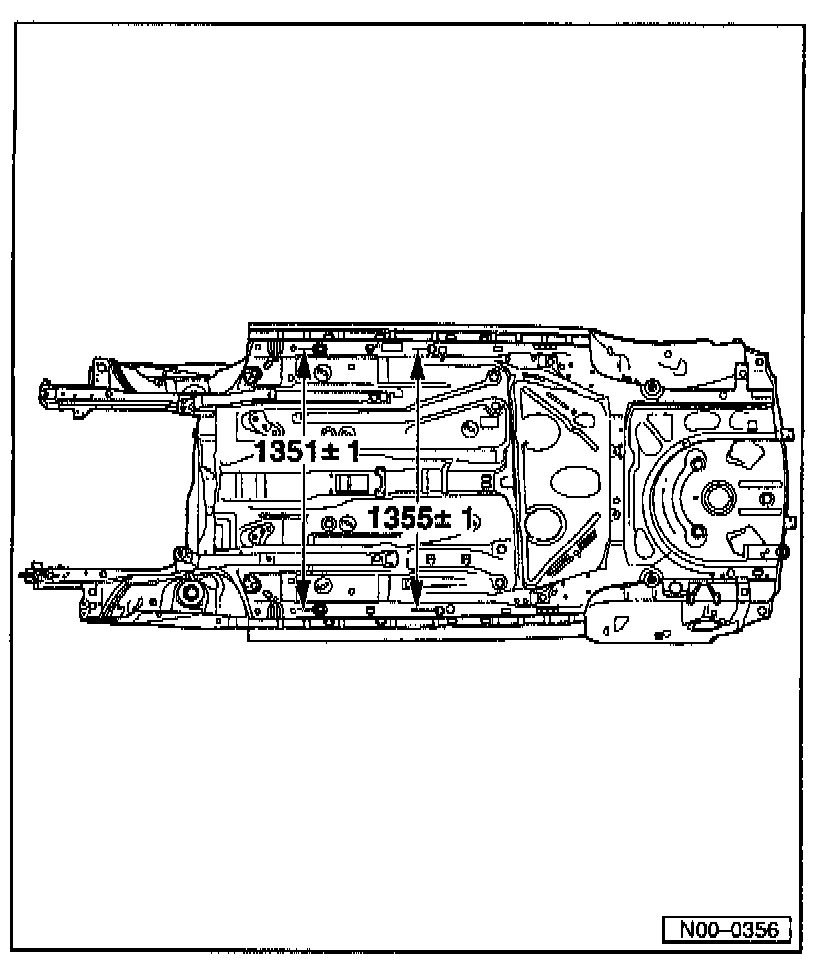

Floor, center





CAUTION!
Dimensions only given for checking purposes. The straightening fixture dictates final figure.

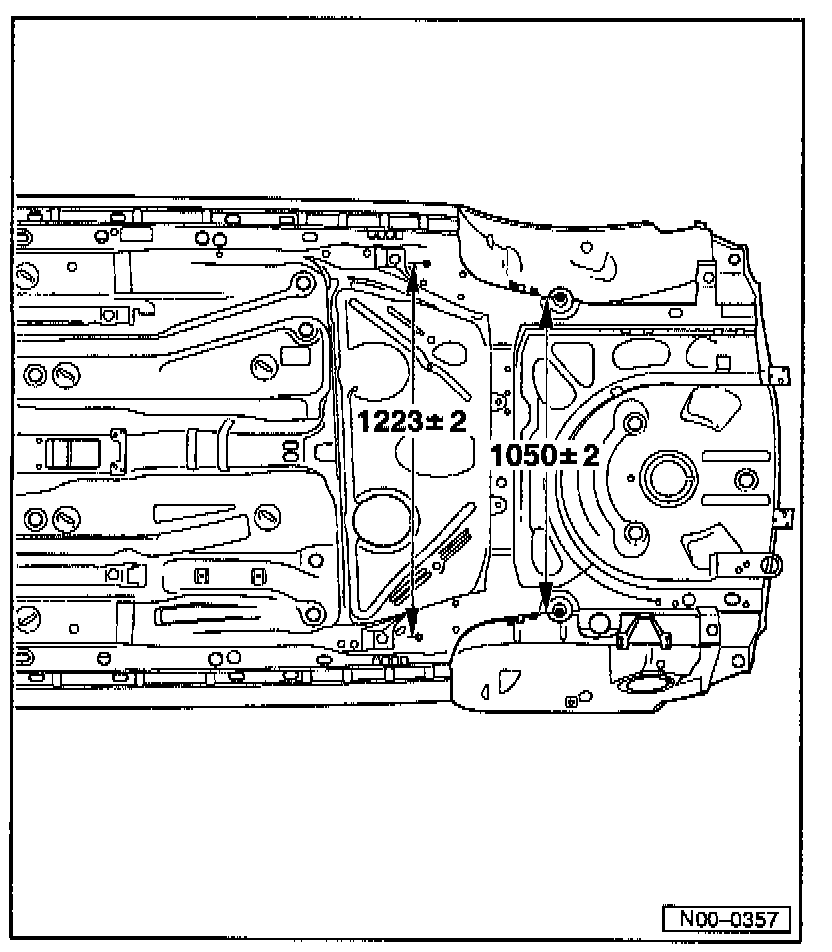

Floor, rear





CAUTION!
Dimensions only given for checking purposes. The straightening fixture dictates final figure.
