Front Door Lock/Latch - Squeaking Noise
Group: 57Number: 00-02
Date: June 7, 2000
Subject:
Door, Squeaking Noise in Latch/Lock Area
Model(s):
New Beetle 1998 --> 2000
Condition
Squeaking noise in area of front door latch/lock area.
May be caused by lack of lubrication at door latch contact surface over time.
Service
Lubricate door locks as follows:
- Open doors.
- Thoroughly clean door locks with clean cloth.

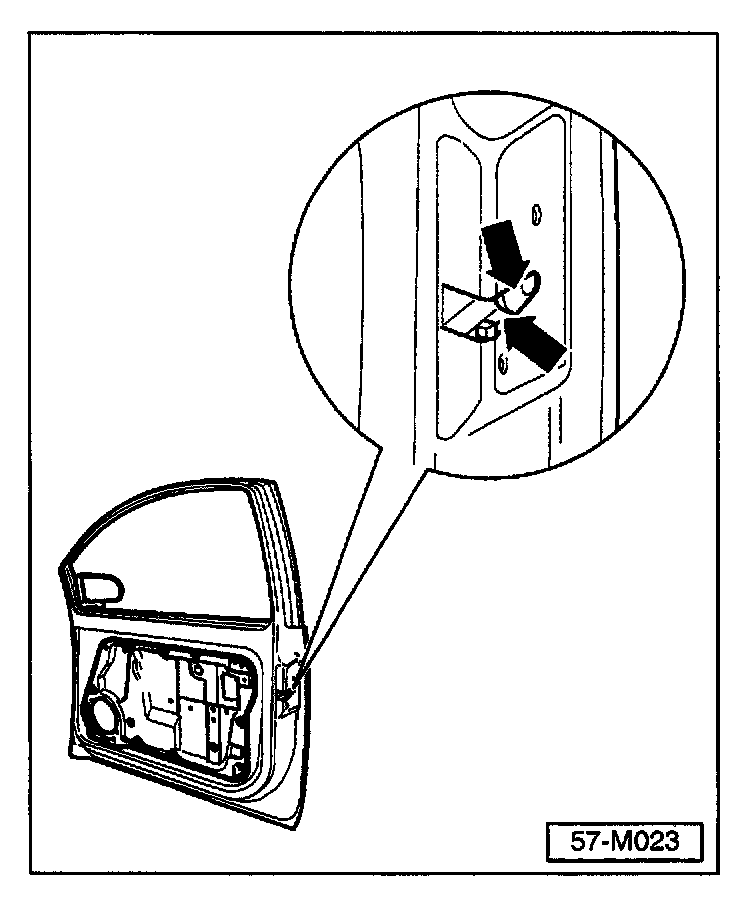

- Lubricate door locks at -arrows- using silicone spray Part No: D 007 000 A2 in short bursts.
- Close and open doors several times.
- Inspect sprayed areas -arrows- (they must be damp with silicone spray), reapply if necessary.
CAUTION!
Always read and follow directions on silicone spray container.
- Confirm noise has been eliminated.
Note:
Do not adjust the door for this condition because, this may introduce subsequent problems such as: wind noise, uneven gaps between door and body poor fit of door etc.
