Windshield Washer Spray Nozzle: Testing and Inspection

NOTE:
- The washer jets are preset but small height adjustments can be made.
- The spray jets must not be cleaned opposite to direction of spray, e.g. blown through from front.

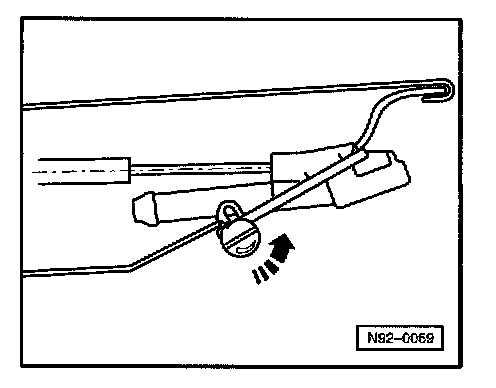

Using screwdriver, turn eccentric on spray jet in direction of arrow to move spray field on windshield upward.
