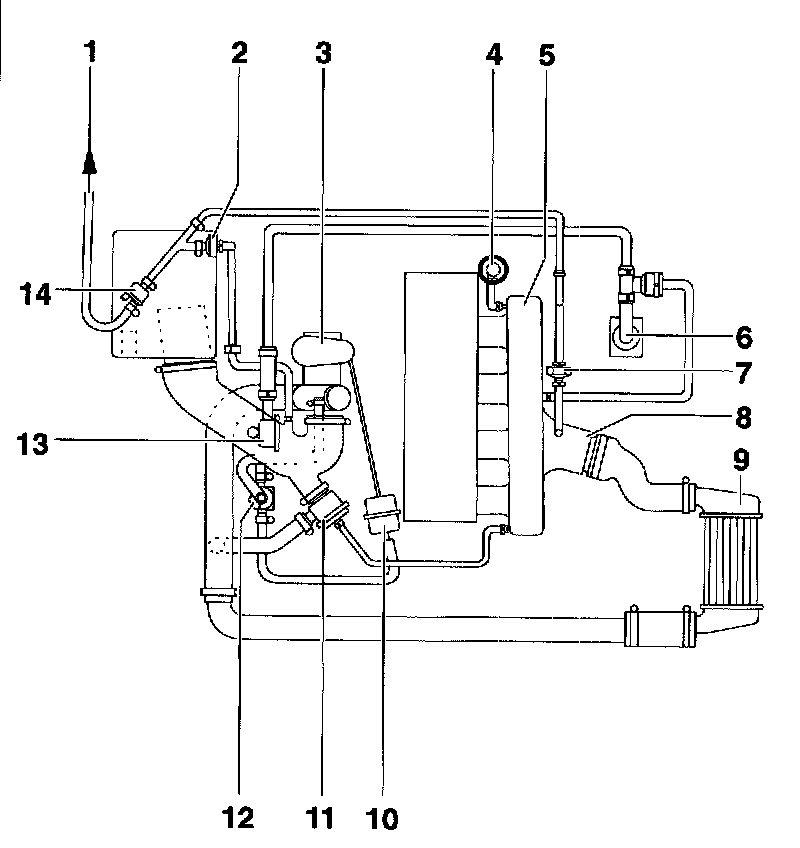

Turbocharger Hoses and Lines

1 - To EVAP canister
- In spare wheel well on floor
2 - Check valve
- For Evaporative (EVAP) emissions system
3 - Turbocharger
- Wastegate Bypass Regulator valve and Wastegate Bypass Regulator valve vacuum unit are integral components of the turbocharger and cannot be replaced individually
4 - Fuel pressure regulator
5 - Intake manifold
6 - Positive Crankcase Ventilation valve
7 - Check valve
- For Evaporative (EVAP) emissions system
8 - Throttle Body Control Module
9 - Charge Air Cooler
10 - Pressure unit
- For Wastegate Bypass Regulator valve
- Integral part of turbocharger cannot be replaced
11 - Boost pressure recirculation valve
12 - Wastegate Bypass Regulator valve N75
- Valve is activated via Engine Control Module pulsing
- Activation, checking via Output Diagnostic Test Mode
13 - Positive Crankcase Ventilation valve
- For Positive Crankcase breather
14 - EVAP canister purge regulator valve 1 N80
- Checking via Output Diagnostic Test Mode
