Flywheel: Service and Repair

4 Speed Automatic 01M

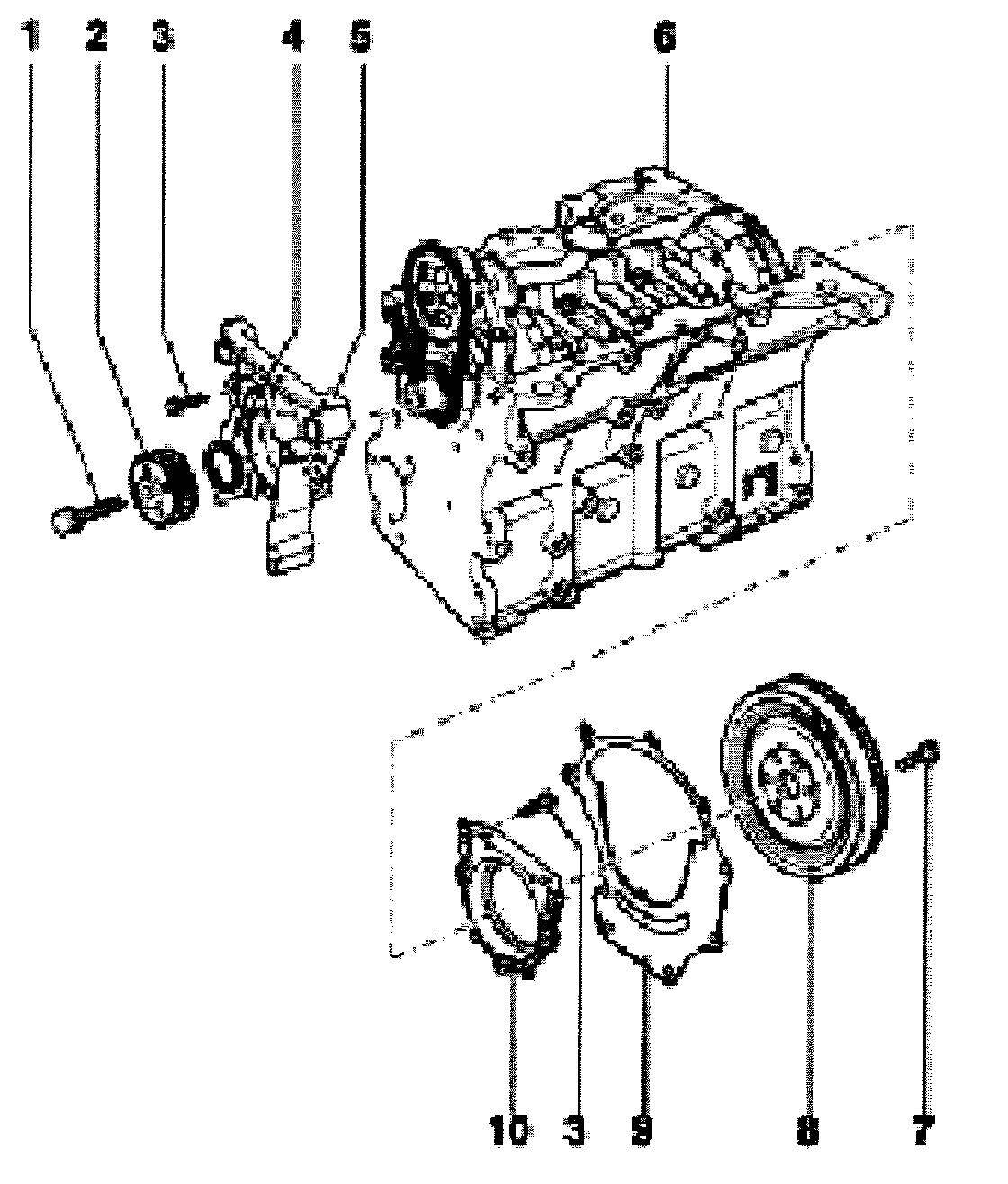

Sealing Flange and Flywheel/Drive Plate, Remove and Install

Note:

- For clutch repairs, Refer to Transmission and Drivetrain.






1. 90 Nm (66 ft. lbs.) 1/4 turn (90°)
- Always replace
- Do not lubricate with oil or grease
- To loosen and tighten: counterhold with 3415
- 90° additional angle can be measured with torque angle meter i.e., Hazet 6690
2. Crankshaft toothed belt sprocket
3. 15 Nm (11 ft. lbs.)
4. Oil seal
5. Sealing flange
- Must fit on alignment pins
- Installing with silicone sealer D176 404 A2.
6. Engine block
7. 60 Nm (44 ft. lbs.) + 1/4 turn (90°)
- Always replace
- 90° additional angle can be measured with torque angle meter i.e., Hazet 6690
8. Flywheel/drive plate
- Flywheel: remove and install with 3067 counterhold tool
9. Intermediate plate
- Must be located on dowel sleeves see Fig. 5
- Do not damage/bend when assembling
10. Sealing flange with oil seal
- Only replace complete
- Only install flange using PTFE sealing ring
- Lightly oil lip on seal
- Install new sealing flange using guide sleeve supplied with new part (do not remove guide sleeve from crankshaft seal before installing)

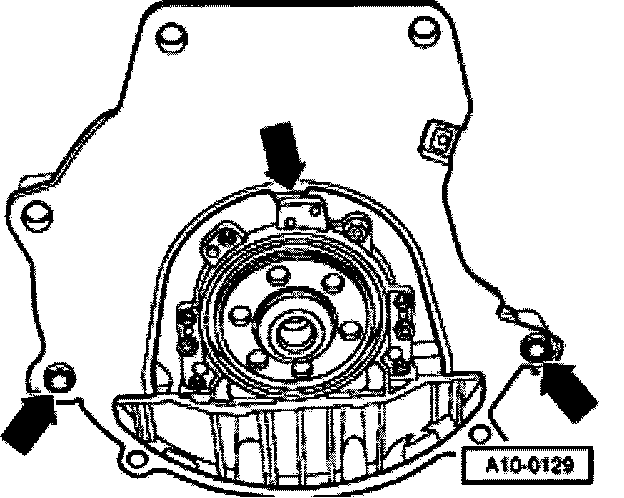

Fig. 5






Intermediate plate locates on alignment pins on sealing flange and engine block (arrows).
