Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volkswagen
>>
2001
>>
Golf GLS (1J1) L4-1.9L DSL Turbo (ALH)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Master Diagram Index
>>

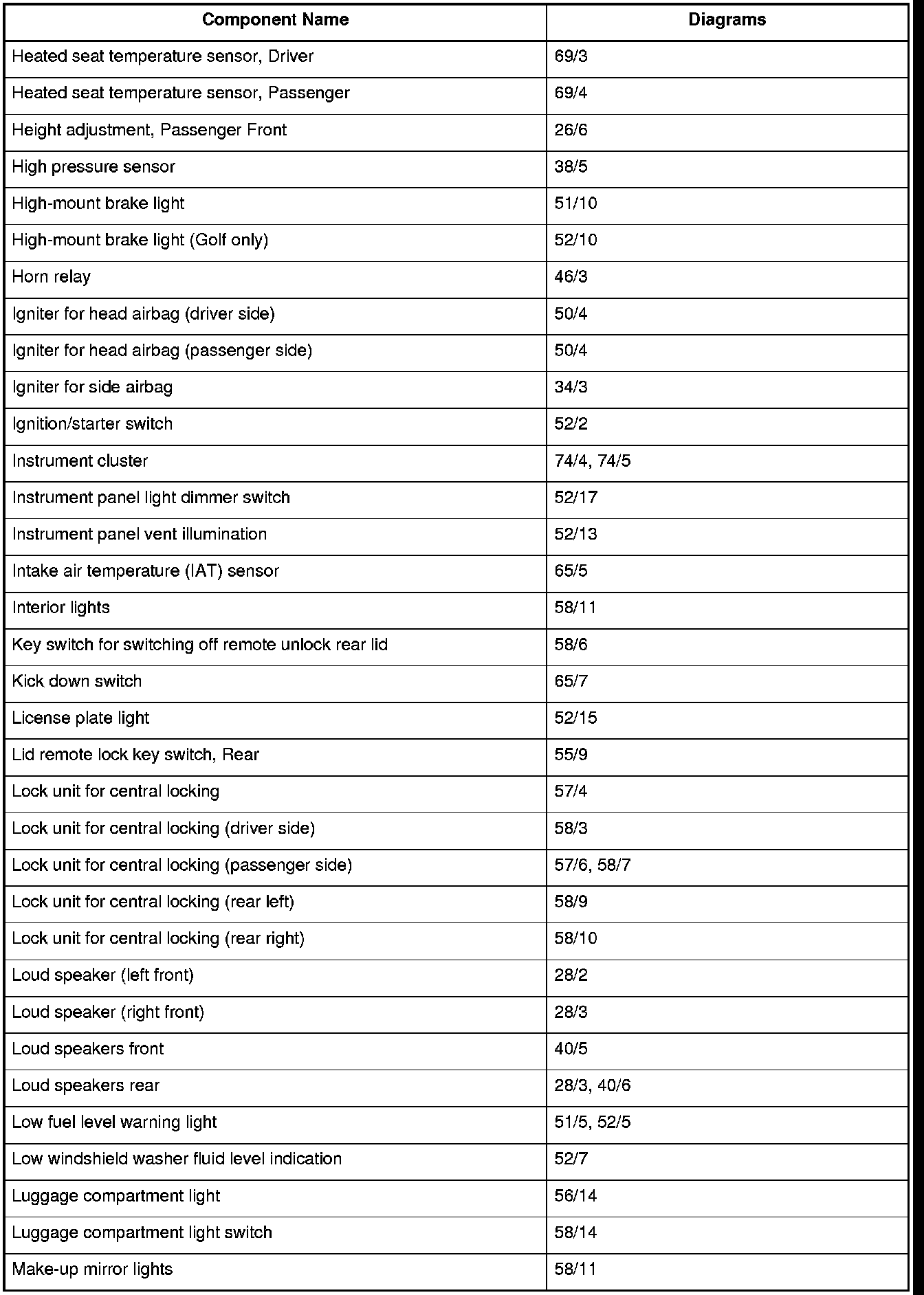

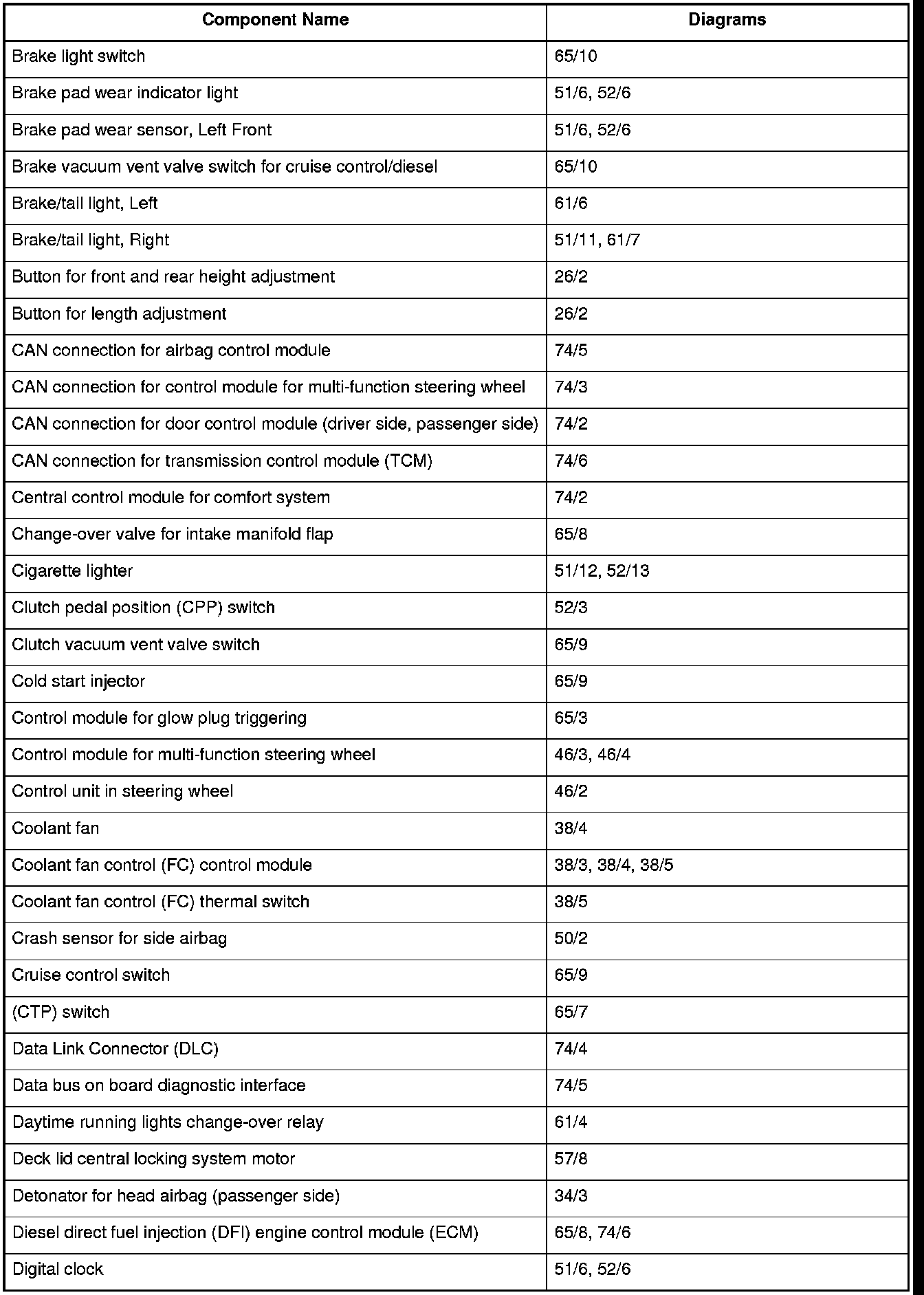

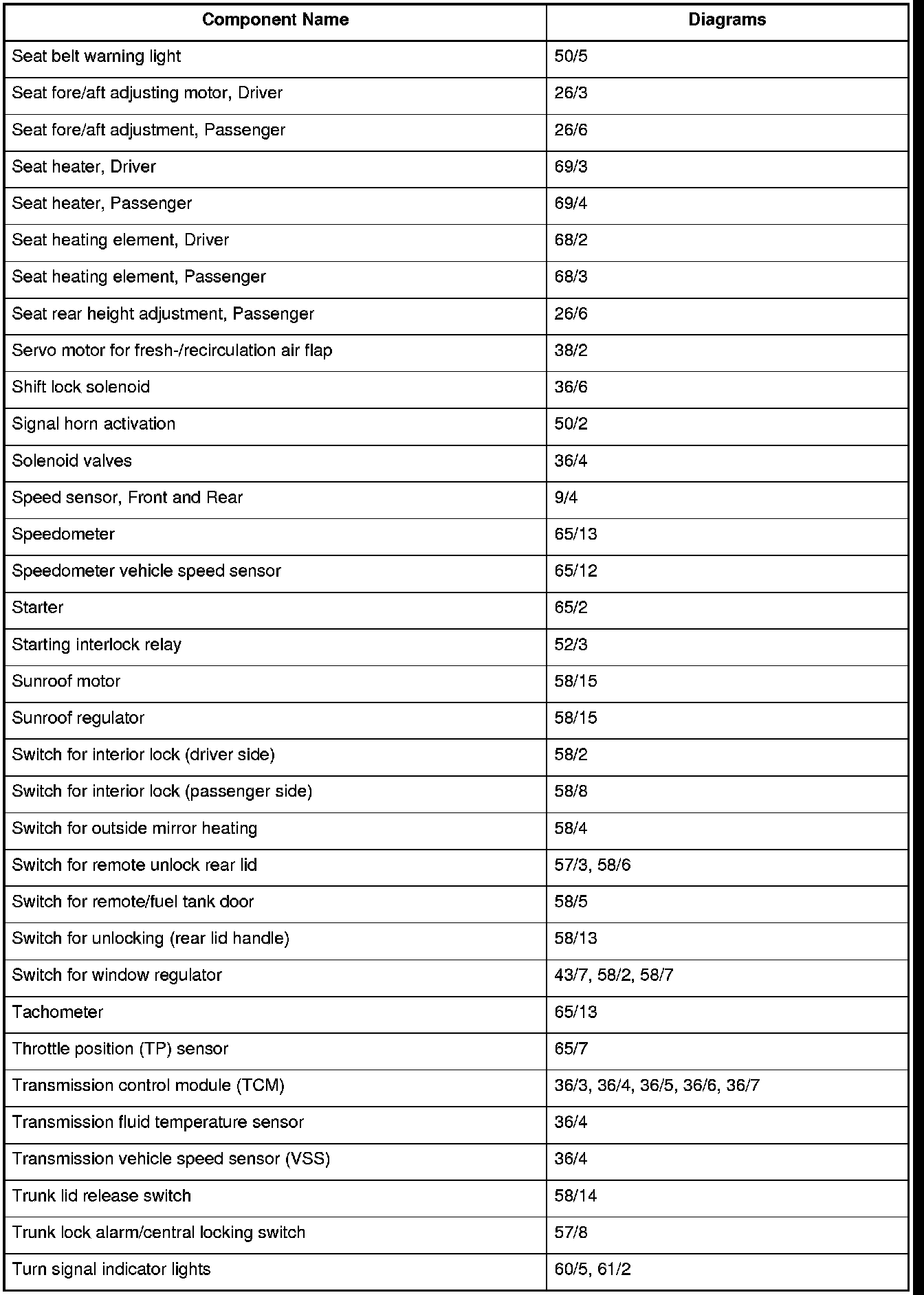

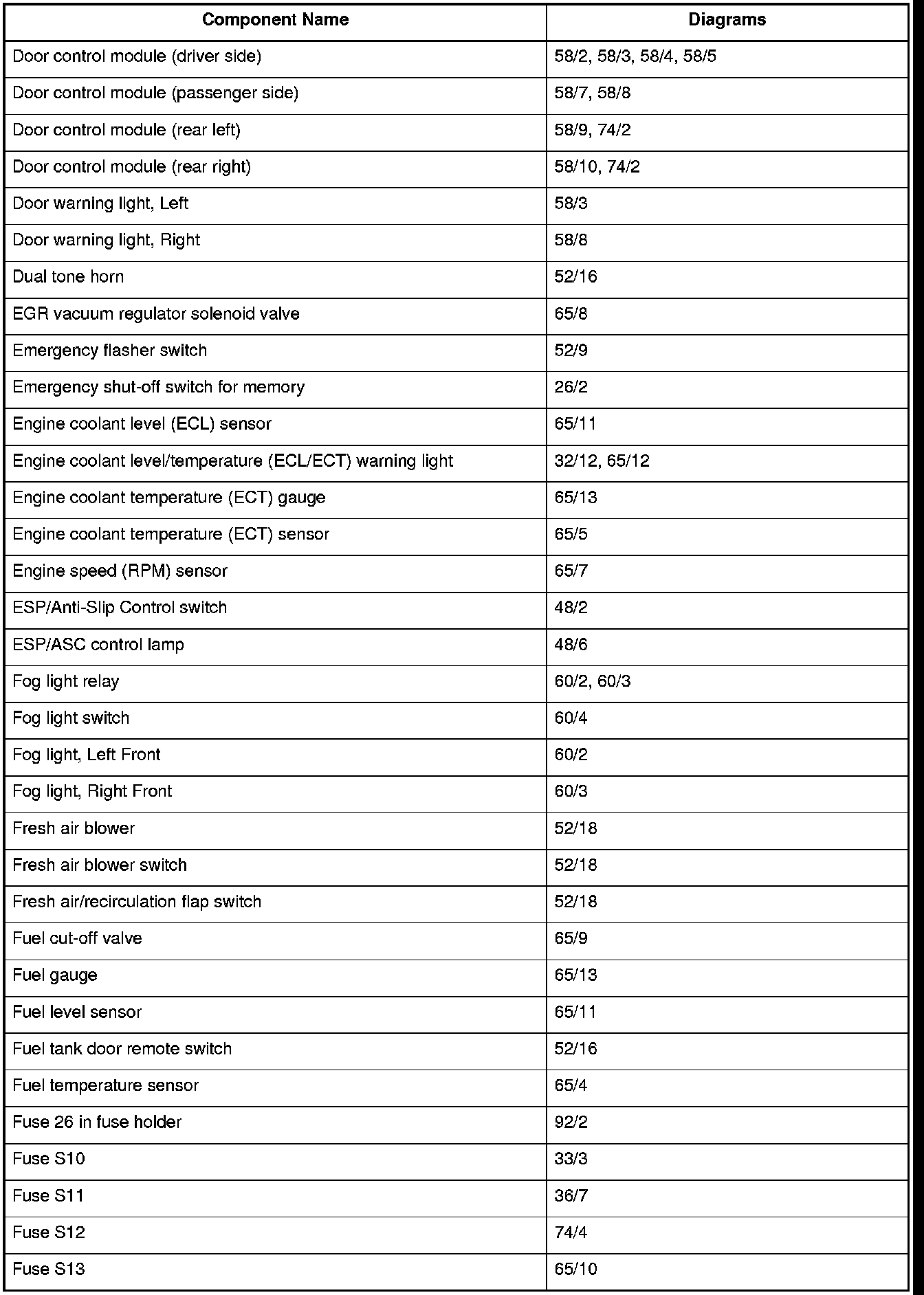

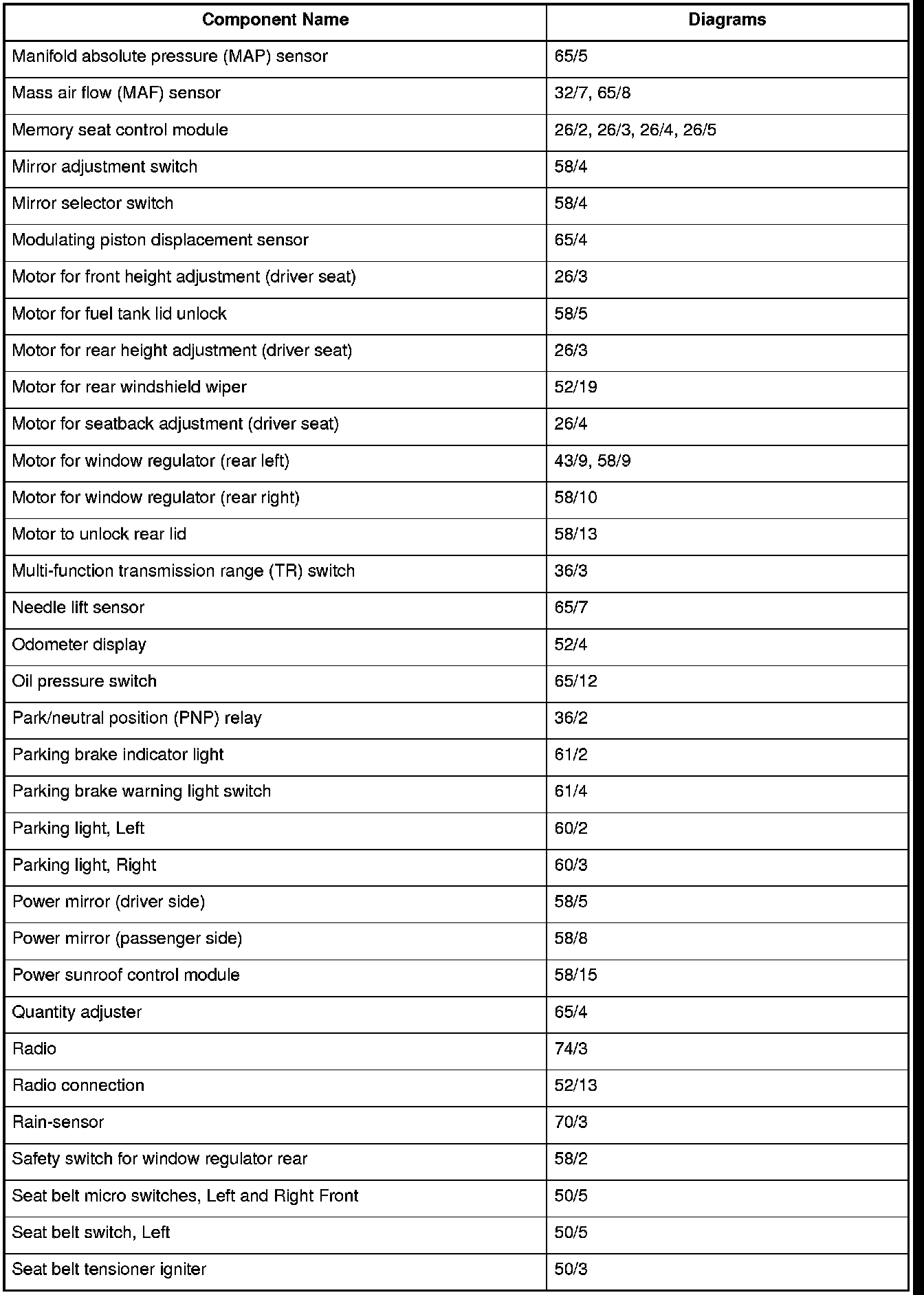

Complete Index
Complete Index
12 V - Br:
Br - Di:
Do - Fu:
Fu - He:
He - Ma:
Ma - Se:
Se - Tu:
Tu - Wi:
