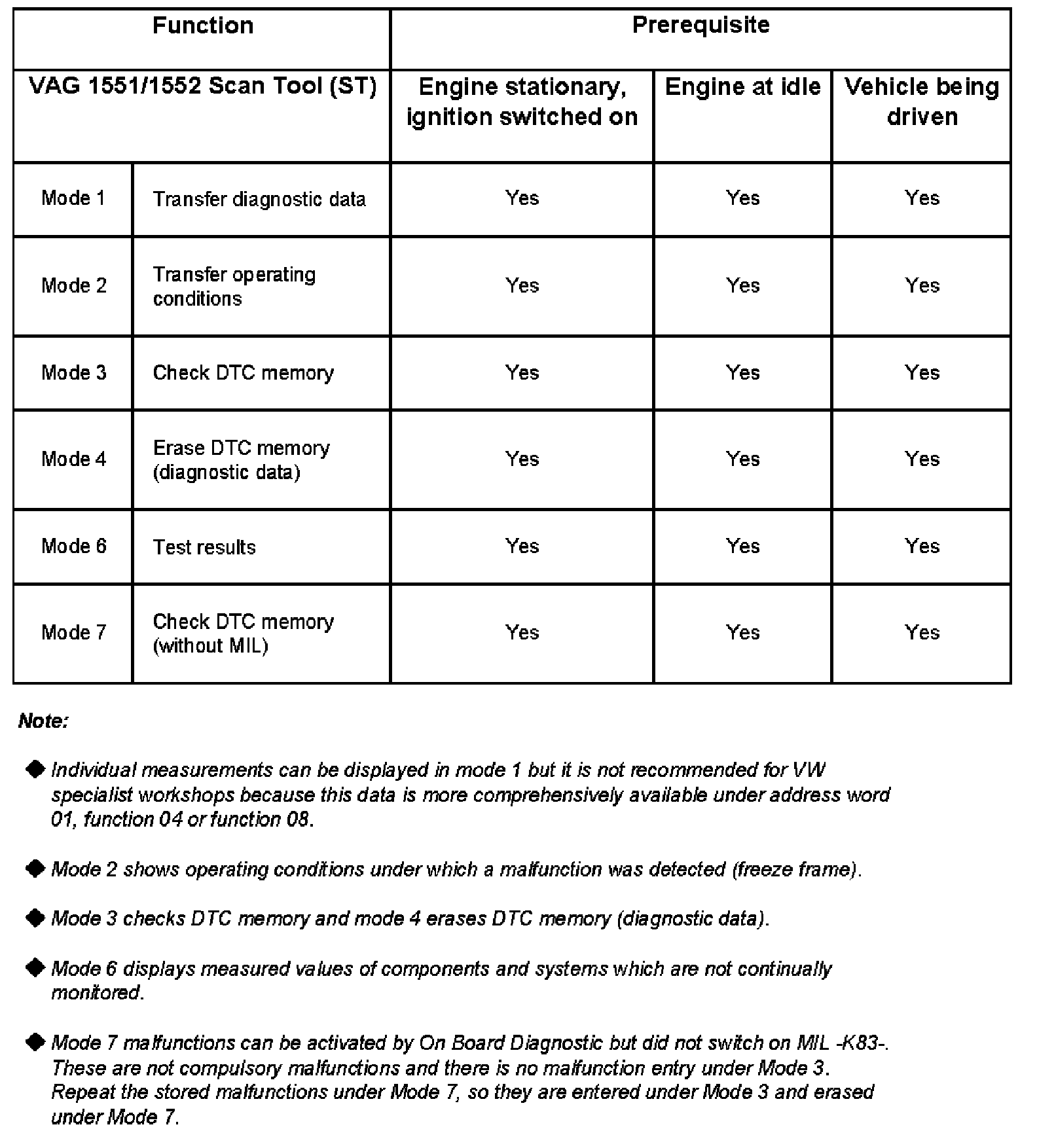

Selectable Functions (Modes) Under Address Word 33, CARB/OBD II
Selectable Functions (Modes) Under Address Word 33, CARB/OBD II
Address word 33,
CARB
/OBD II, Selectable functions (modes)
Function Mode 1 - 7:
