Cabin Ventilation Grille: Service and Repair

Removing cowl panel

NOTE: The cowl panel is clipped into a guide rail below the windshield.





- Remove wiper arms.

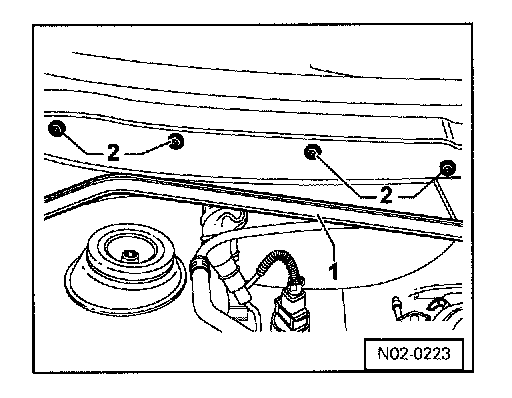

- Pull out rubber seal -1- and unscrew bolts -2-.
- Remove pollen filter cover.





- Unclip trim on inner fender (arrows) on both sides.
- Carefully press cowl panel out upward.

Installing cowl panel
Installation is in reverse order of removal.

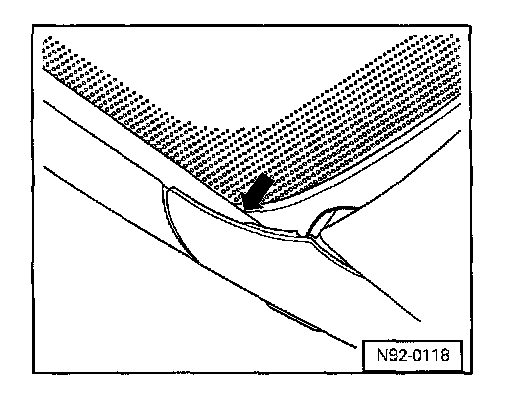

NOTE: The sides of the cowl panel must be inserted under the rubber strip of the cowl panel strip on the -A- pillar (arrow).
