Windshield Washer Spray Nozzle: Adjustments

Windshield Washer Jets, Checking And Adjusting


CAUTION!
Washer jets must not be cleaned opposite to the spray direction, e.g.: blown through from front


m.y. 2000 >

- New design washer jets are installed from m.y. 2000.

Washer jets are preset but small height adjustments can be made.







Both spray fields are defined with points A & B.

Distance between points A & B and upper windshield are indicated in a straight line as follows.

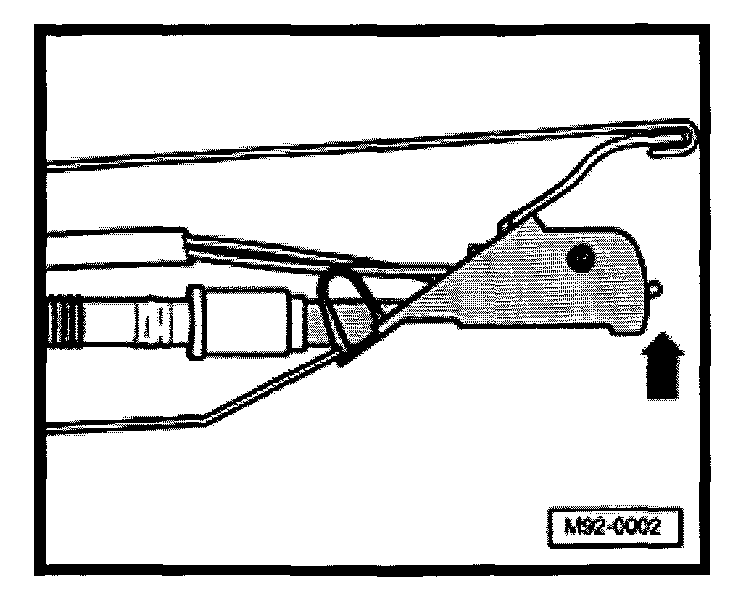

- Move spray jet in direction of arrow with finger.
