Tail Lamp: Locations

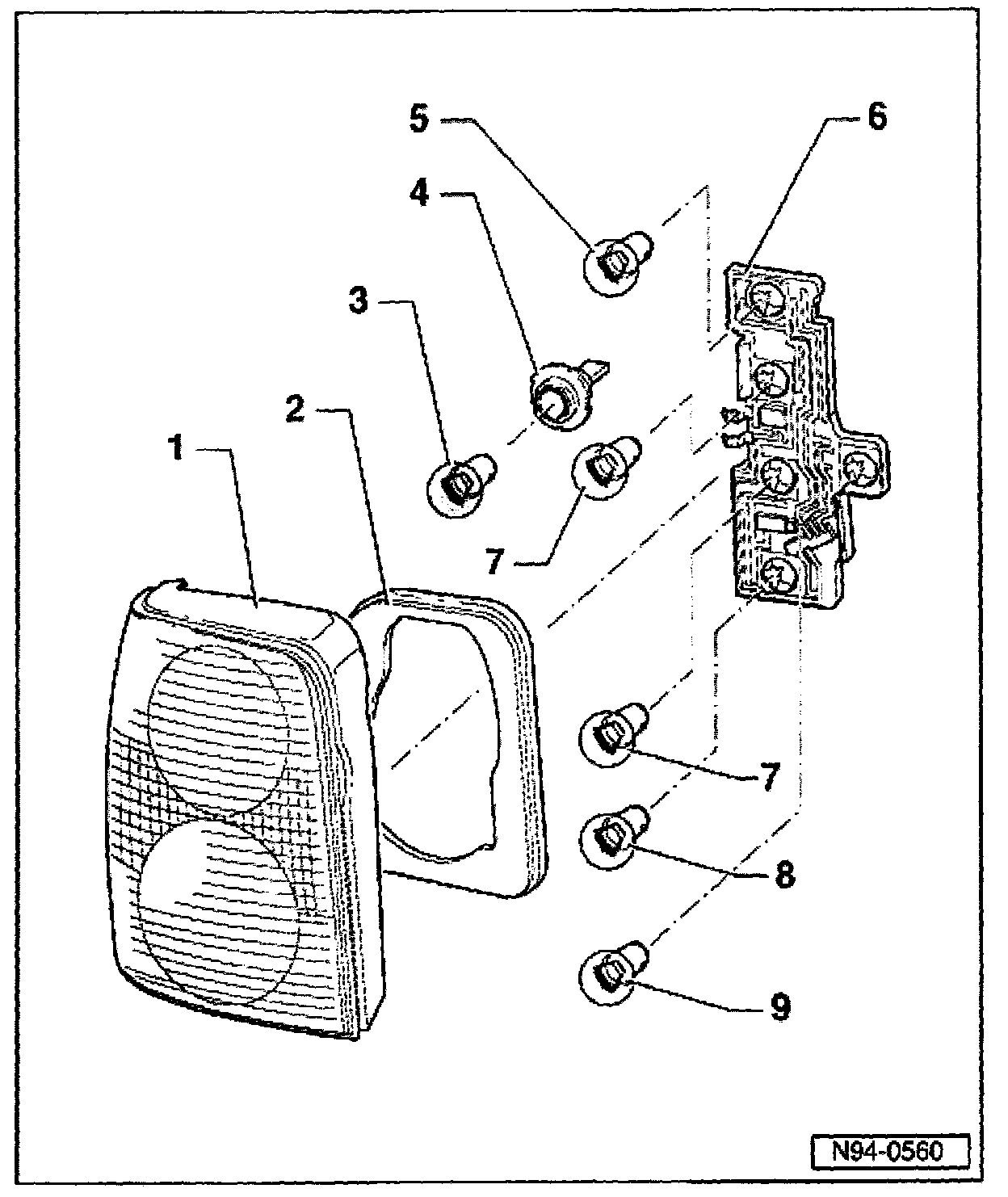

Rear Lights Assembly

CAUTION!
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition off
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio.


1 - Housing
2 - Gasket
- Replace if damaged
3 - Turn signal bulb
12V / 21W
4 - Bulb holder for turn signal bulb
5 - Dual filament bulb for brake and tail light 12V / 21W / 5W
6 - Bulb holder
7 - Dual filament bulb for tail light
12V /21W /5W
- Tail light only 5W
8 - Dual filament bulb for tail light/rear fog light bulb (driver's side only)
12V / 21W
9 - Back-UP light bulb
12V / 21W
