Tail Lamp: Service and Repair

Rear Light Bulb Holder, Removing And Installing

Removing
- Open rear light side storage flap.
- Disconnect electrical connector.

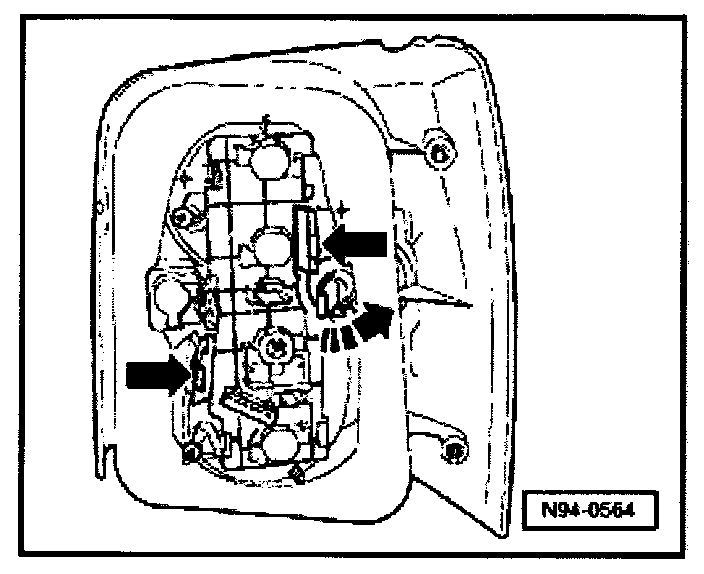

- Depress retainer tabs -arrows- and remove bulb holder to rear.
- To remove turn signal bulb, turn socket counterclockwise -arrow-.

Installing
Installation in reverse order of removal.
