Windshield Washer Hose: Service and Repair

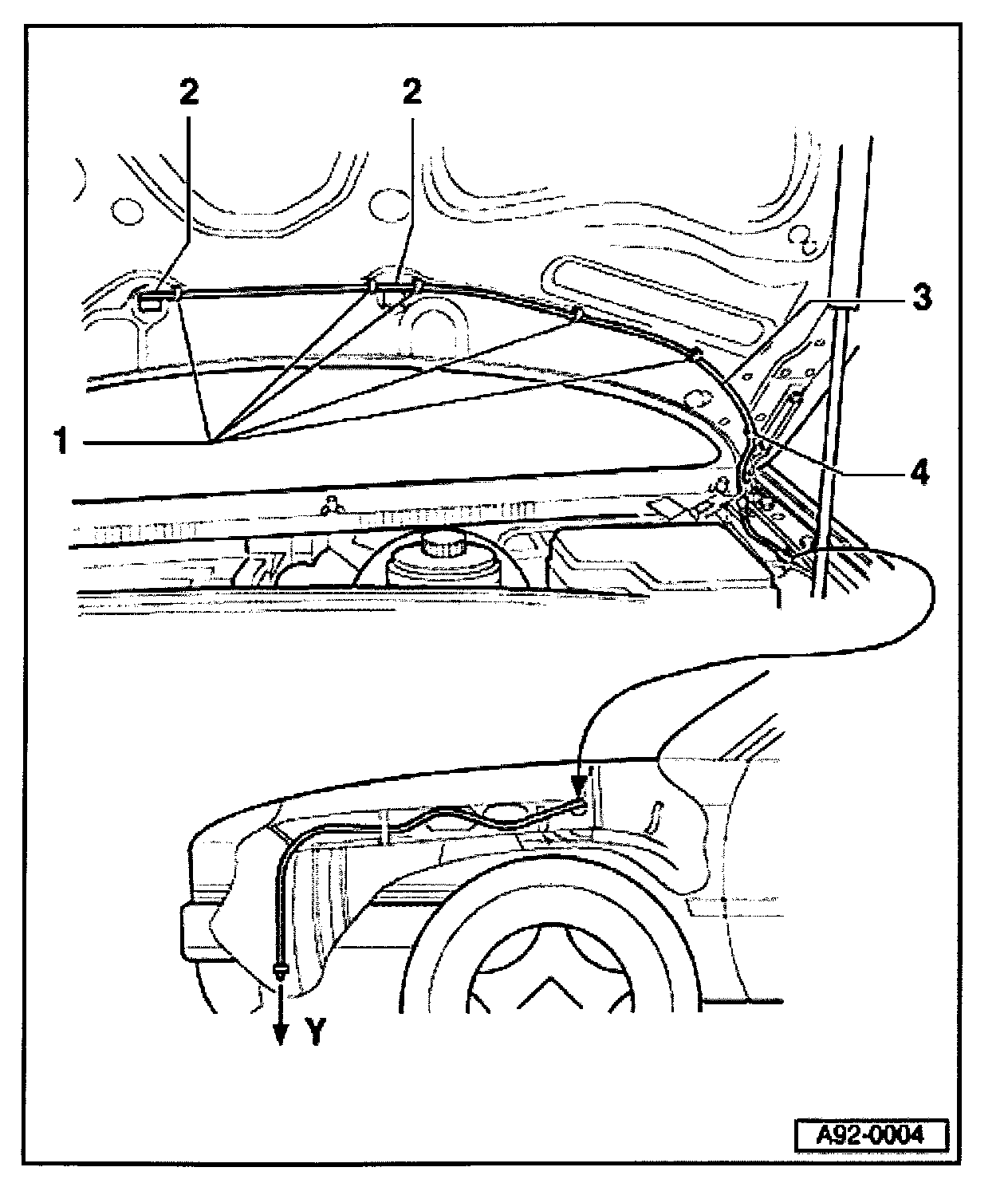

Windshield Washer System, Hose Routing
1 - Hose clip
- Vehicles Up To 10.00 only
2 - Jets
3 - Hose
- Vehicles From 10.00 hose is routed inside front hood
4 - Hose clip
Y - Connection on windshield washer system Pump
