End Output (Function 06)

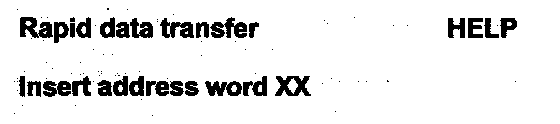

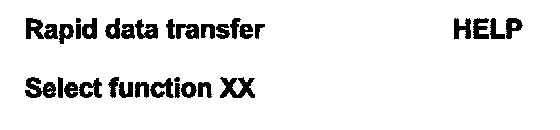

Indicated on display
^ Press buttons -0- and -6- to select "End Output" function 06.

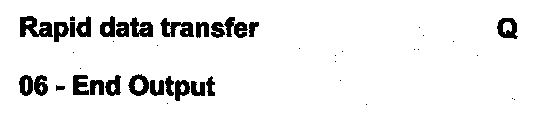

Indicated on display
^ Press -Q- button to confirm input.





Indicated on display
^ Switch Ignition off.
^ Disconnect VAG1551 scan tool from Data Link Connector (DLC).
^ Switch ignition on.

ABS warning light -K47- and warning light for brake system -K118- must go out after approx. 2 seconds.
