Center Mounted Brake Lamp: Service and Repair

High Mount Brake Light

The high-mount brake light is installed in the rear of the rear shelf, directly against the rear window.

Bulb holder, removing and installing

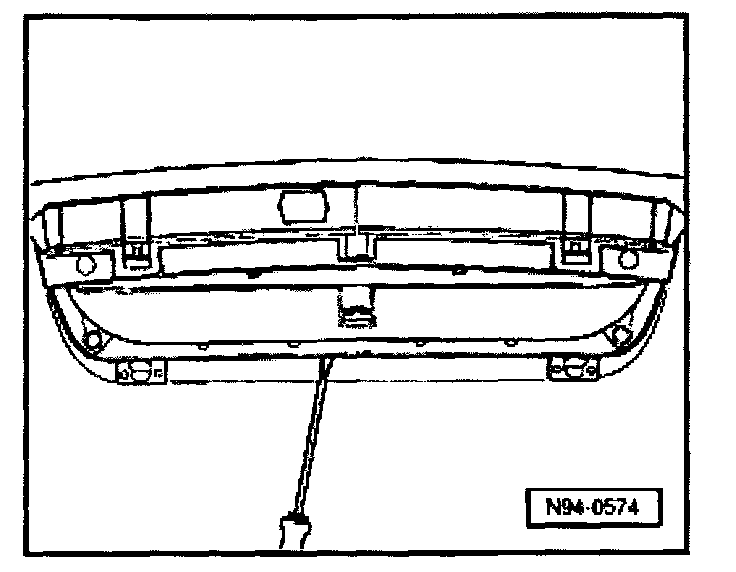

- Using screwdriver, unclip bulb holder from mounting.


NOTE: The bulb holder base plate contains soldered-in light emitting diodes (LEDs) that are not replaceable. In the event of LED malfunction, replace complete bulb holder.
