Wiper Blade: Service and Repair

"Aero-wiper" Blades, Removing And Installing

"Aero-wiper" system installed as a running change during m.y. 2002.

Removing

CAUTION:
- To ensure proper wiper performance, only grab/lift Aero-wiper blades at the mounting pivot on wiper arm when removing and installing.
- Driver and passenger wiper blades are different lengths. Damage will result if wiper blades are interchanged.

- Bring wiper arm to park position.
- Switch off all electrical consumers, switch off ignition and remove ignition key.
- Lift Aero-wiper blade/arm assembly from windshield, noting CAUTION above.

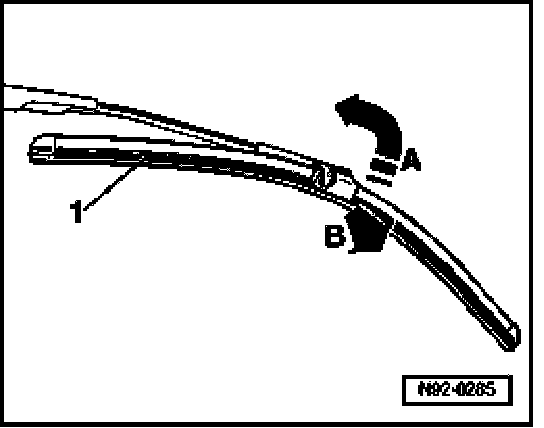

- Tilt wiper blade -1- on mounting pivot in direction of -arrow A- until it reaches stop.
- Detach wiper blade from mounting pivot in direction of -arrow B-.
