Headlamp
High Intensity Gas Discharge (HID) Headlights, engine code BDP, from January 2002
IMPORTANT NOTE
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions
Track 1-14:

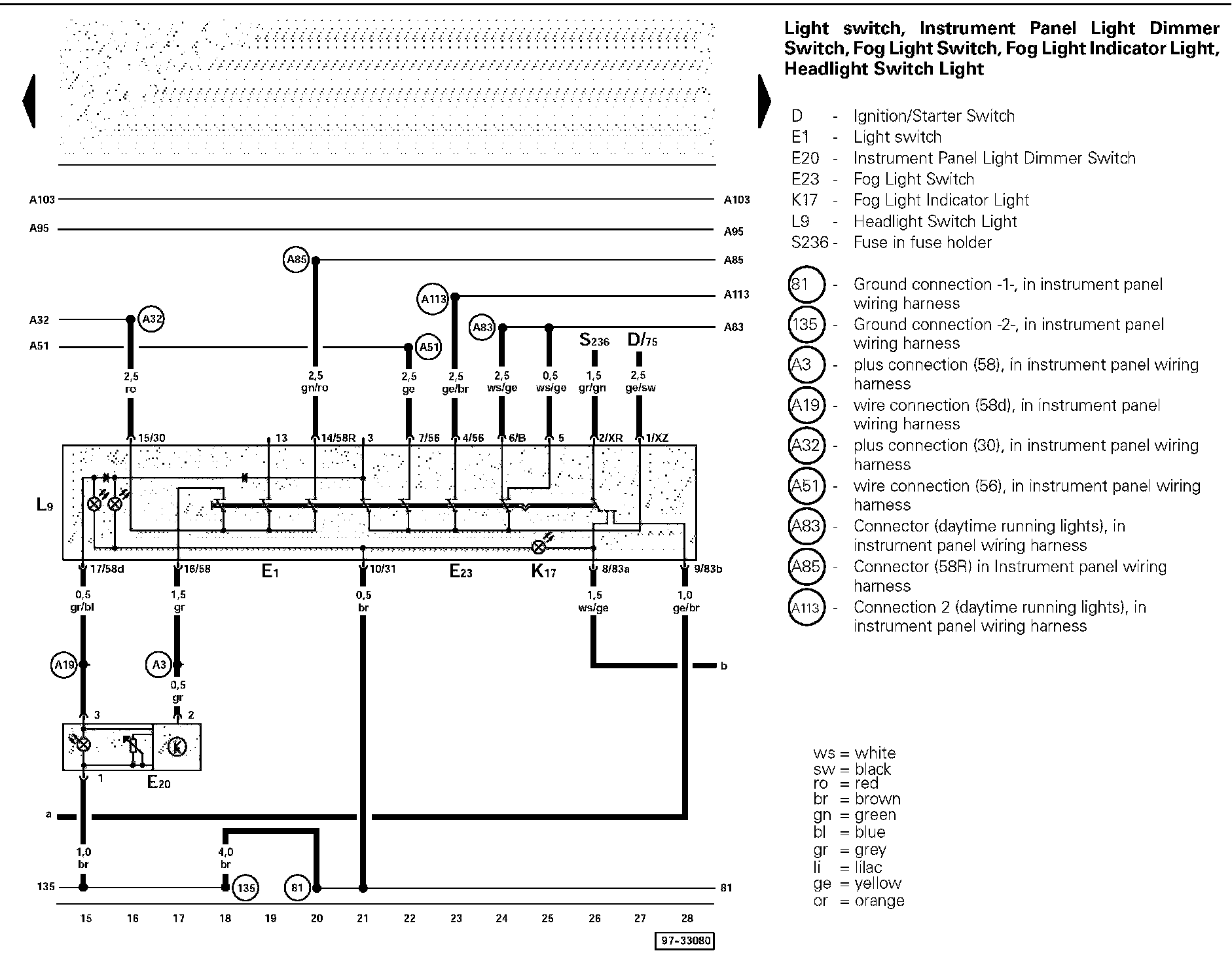

Track 15-28:
Track 29-42:
Track 43-56:

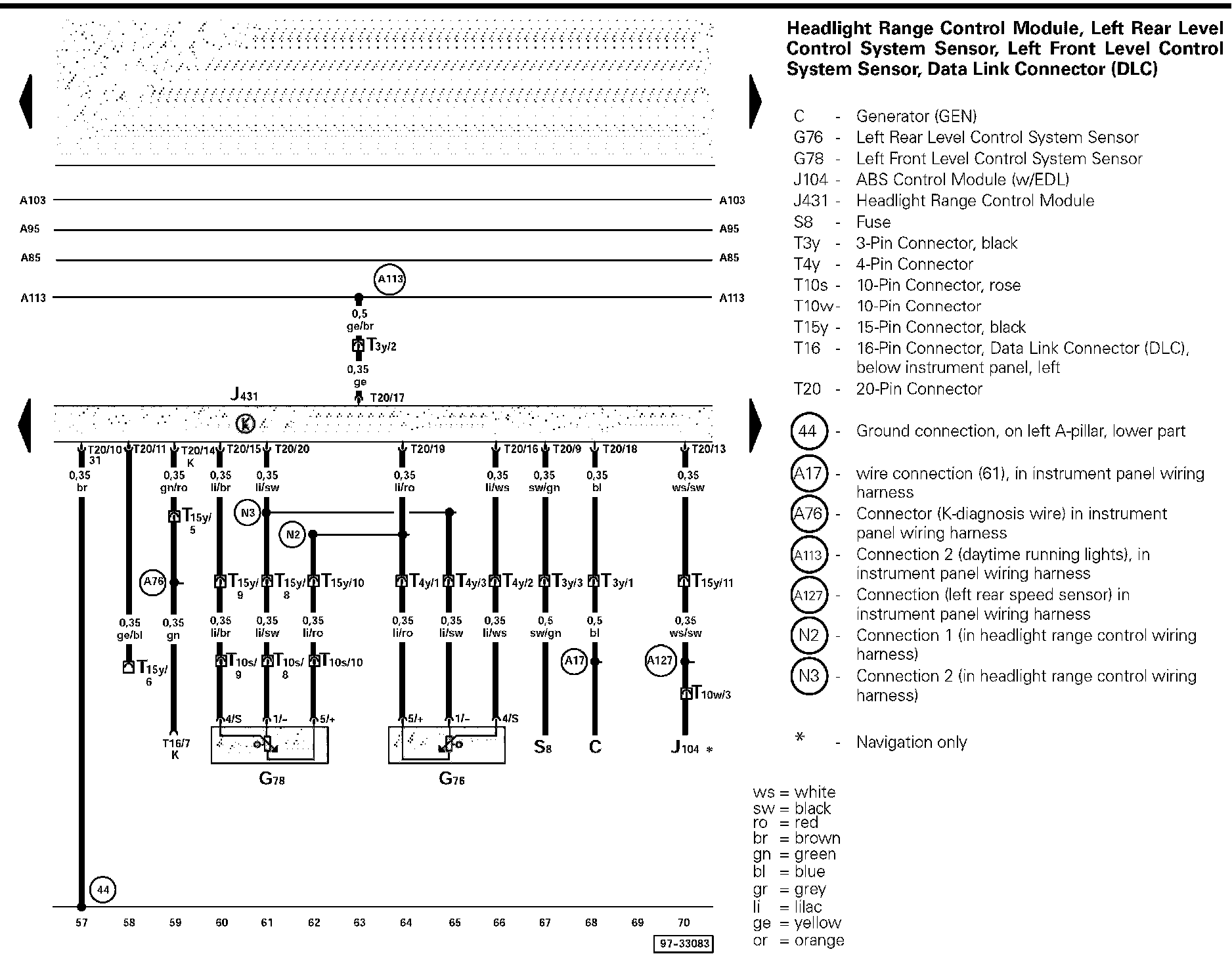

Track 57-70:

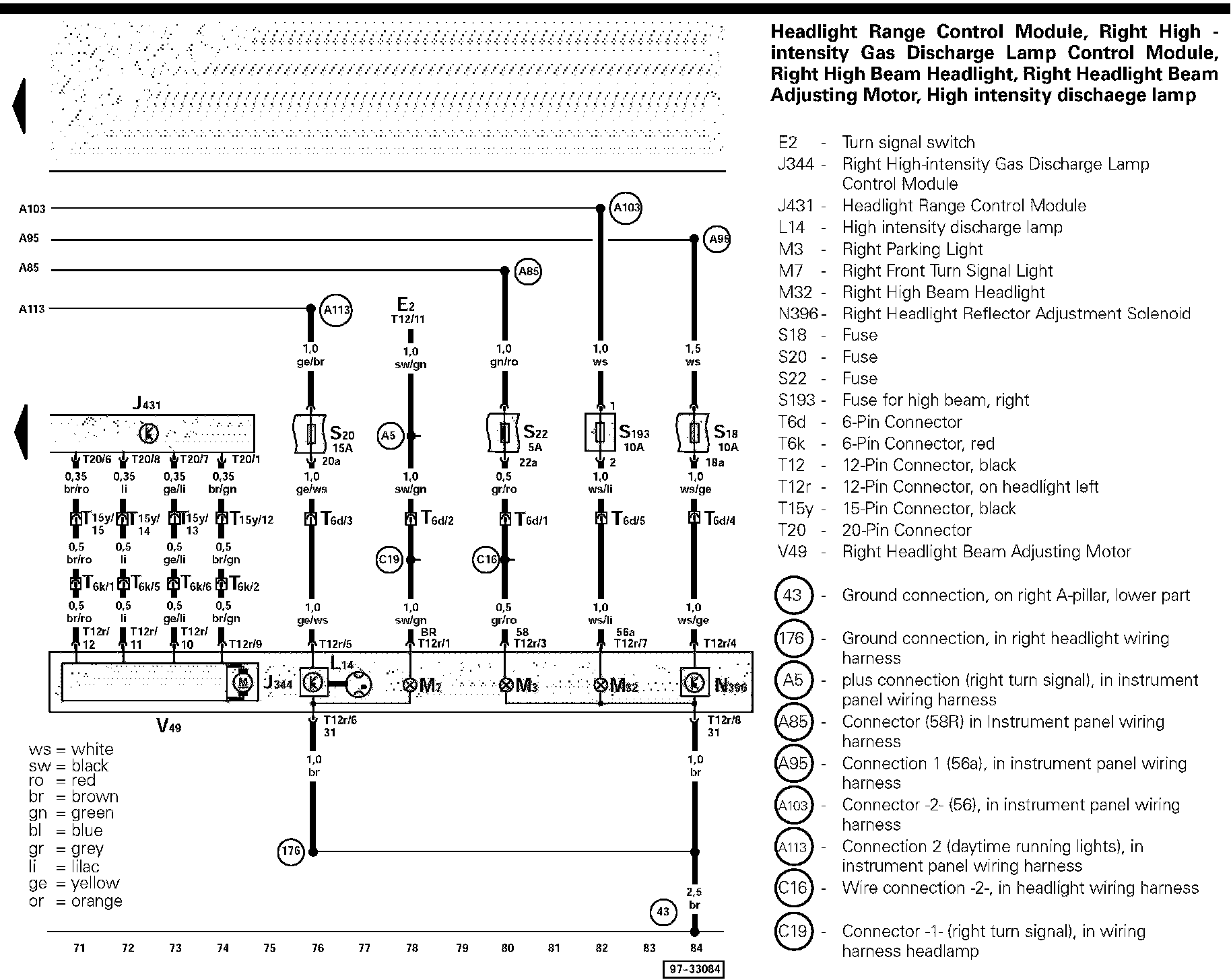

Track 71-84:
