Cooling System Components Assembly Overview, Front Engine Side

Cooling System Components Assembly Overview, Front Engine Side

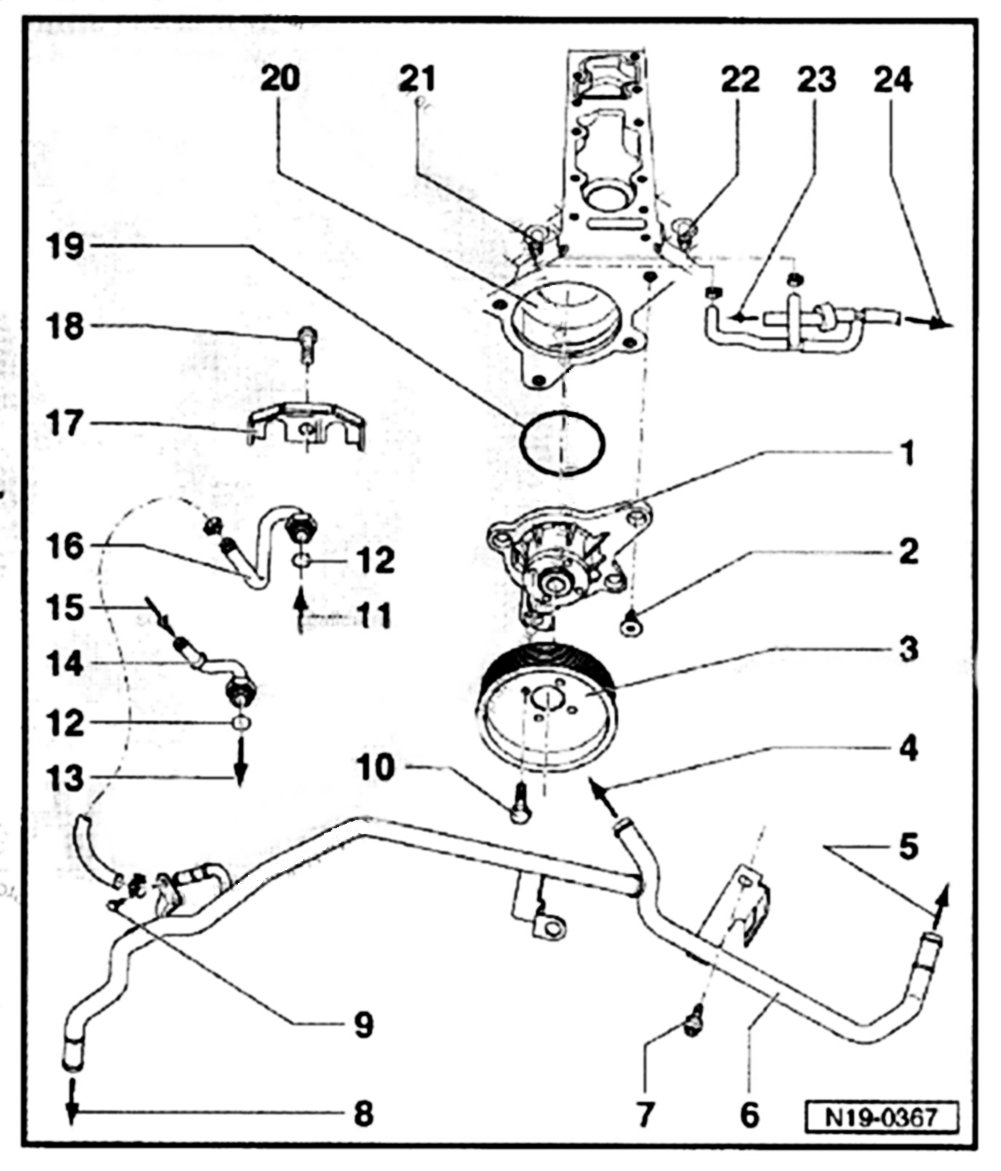

1. Coolant Pump
- Check for ease of movement.
- If damaged or leaking replace completely.

2. 20 Nm

3. Pulley
- For coolant pump.

4. To Coolant Pipe

5. To Expansion Tank

6. Front Expansion Tank

7. 10 Nm

8. To Oil Cooler

9. 10 Nm

10. 15 Nm

11. From Generator

12. O-ring
- Replace.

13. To Generator

14. Coolant Line

15. From Right Coolant Pipe

16. Coolant Line
- On generator.

17. Securing Plate
- For coolant line on generator.

18. 10 Nm

19. O-ring

20. Cylinder block
- With flange for coolant pump.

21. Coolant Connecting Piece
- On right of cylinder head.

22. Coolant Connecting Piece
- Left cylinder head.

23. To Top Coolant Hose

24. To Coolant Hose
