Rear Axle With Four Wheel Drive, Assembly Overview

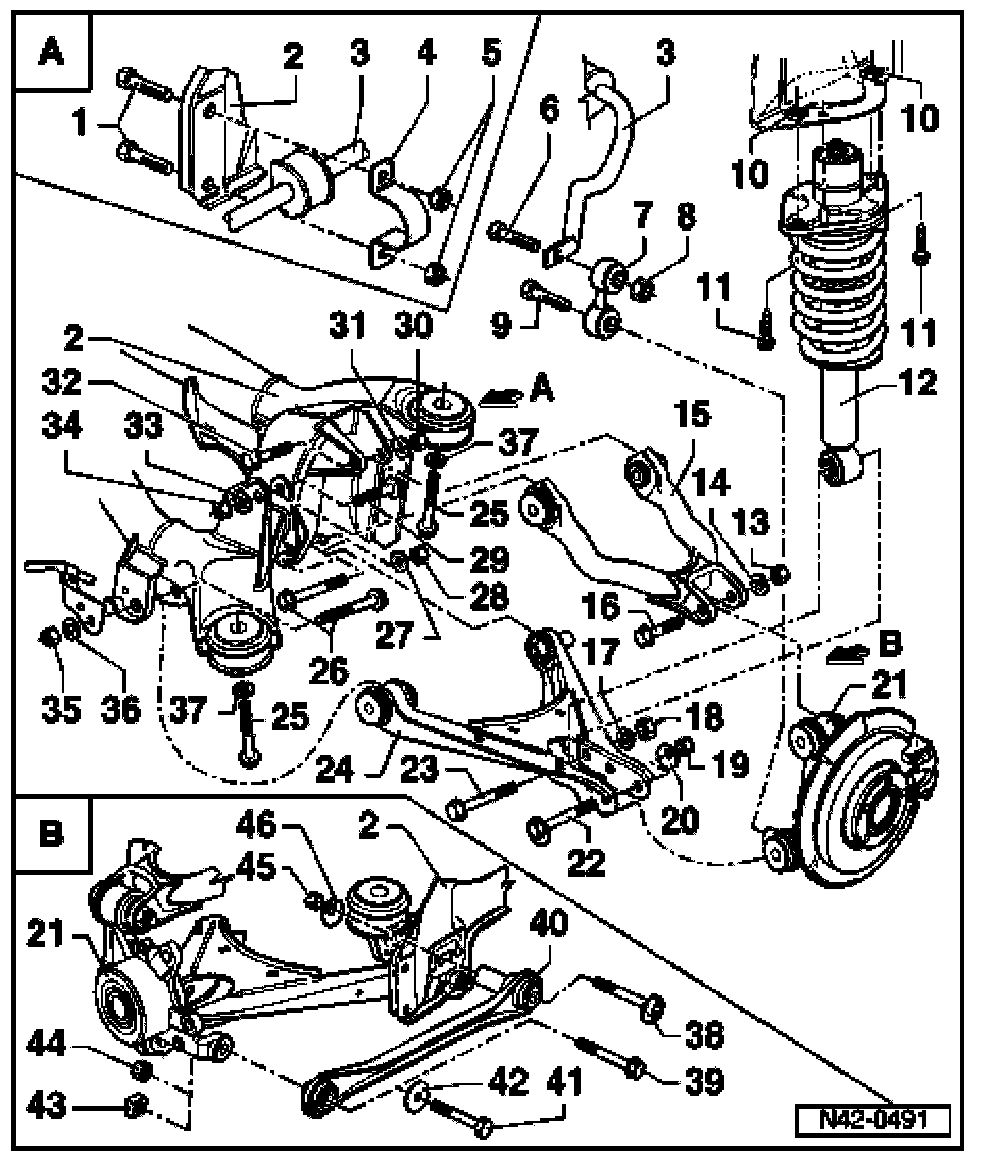

Rear axle with four wheel drive, assembly overview

Note:
- Always replace self-locking nuts and bolts.
- Always replace corroded nuts and bolts.

View A
1. Hex bolt M 8x22
2. Subframe
3. Stabilizer bar
4. Clamp
5. Self-locking nut, 20 Nm
^ Replace each time after removing
Main view
6. Hex bolt M 10x50
7. Coupling rod
8. Self-locking nut, 50 Nm
9. Hex bolt
10. Threads in wheel housing
11. Hex head bolt, 45 Nm
12. Suspension strut
13. Self-locking nut
^ Replace each time after removing
14. Washer
15. Upper control arm
17. Washer
18. Self-locking nut, 70 Nm
^ Replace each time after removing
^ Only tighten nut in curb weight position
19. Self-locking nut, 95 Nm
20. Eccentric washer
21. Wheel bearing housing
22. Eccentric bolt
23. Hex head bolt M 12 x 1.5 x 95
^ Replace each time after removing
24. Lower control arm
25. Hex bolt M 12x 1.5x 110
^ 110 Nm plus an additional 90°(1/4 turn)
^ Replace each time after removing
26. Hex bolt M 12x 1.5x 100
^ 70 Nm plus an additional 90°(1/4 turn)
^ Replace each time after removing
^ Only tighten nut in curb weight position
27. Washer
28. Self-locking nut
^ Replace each time after removing
29. Hex bolt M 12x1.5x85
^ 95 Nm
^ Only tighten nut in curb weight position
30. Self-locking nut, 95 Nm
^ Replace each time after removing
31. Washer
32. Hex bolt M 12x1.5x80
^ 95 Nm
^ Only tighten nut in curb weight position
33. Washer
34. Self-locking nut, 95 Nm
^ Replace each time after removing
35. Self-locking nut
^ Replace each time after removing
36. Washer
37. Washer
View B
38. Eccentric bolt
39. Hex bolt M 12x1.5x85
^ 95 Nm
^ Only for vehicles with 8-cylinder engines
^ Only tighten nut in curb weight position
40. Tie rod
^ The bonded rubber mountings are not available as replacement part
41. Hex bolt M 12x 1.5x 85
^ 95 Nm
^ Only tighten nut in curb weight position
42. Washer
43. Square nut
^ Only for vehicles with 8-cylinder engines
44. Self-locking nut
^ Replace each time after removing
45. Self-locking nut, 95 Nm
^ Replace each time after removing
46. Eccentric washer
