Condenser HVAC: Service and Repair

Condenser, Removing And Installing

CAUTION! Before beginning repairs on the electrical system:
Obtain the antitheft radio security code.
Switch the ignition off
Remove ignition key from ignition switch

NOTE: Before carrying out any work on the A/C refrigerant system, refer to A/C refrigerant system safety measures.
Condenser must only be serviced or replaced after discharging refrigerant system. Use Kent Moore ACR4 or equivalent.
O-rings used on R-134a systems may be red, green, violet or black.
Always plug open refrigerant line connections to prevent dirt and moisture contamination.

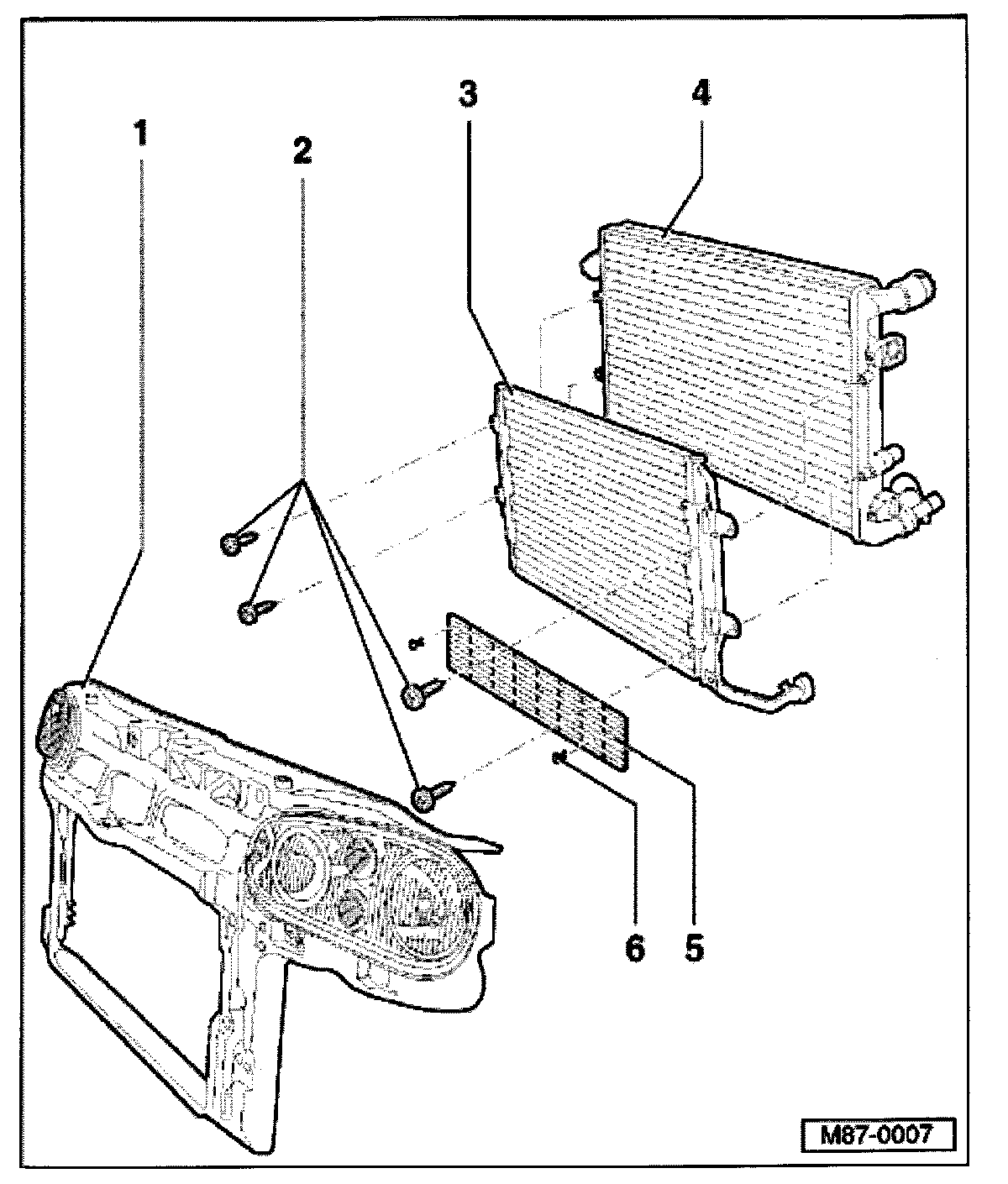

1. Lock carrier

2. Screws
8 Nm (71 inch lb)
Qty. 4

3. Condenser

4. Radiator
Always replace coolant after removal/replacement

4. Grille
Where applicable

5. Clips
Where applicable


Removing
- Discharge refrigerant system, refer to Service and Repair - Procedures Service and Repair
- Remove refrigerant hoses at condenser and seal off.
- Remove lock carrier, refer to Body and Frame - Lock Carrier - Service and Repair - Procedures [1][2]Procedures
- Remove screws -2-.
- Remove clips -6- and grille -5- (where applicable).
