Windshield Washer Reservoir: Service and Repair

Window & Headlight * Washer System Reservoir, Removing And Installing

Removing

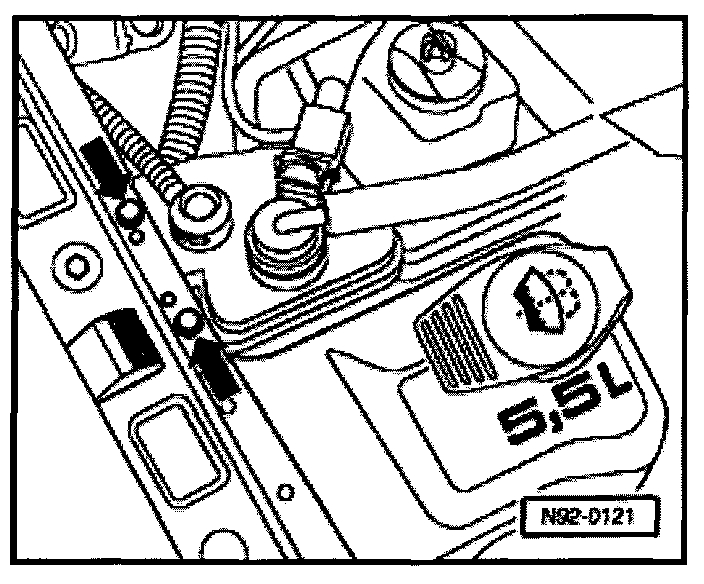

- Remove bolts -arrows- for coolant expansion tank and place tank to side with pipes/hoses still connected.

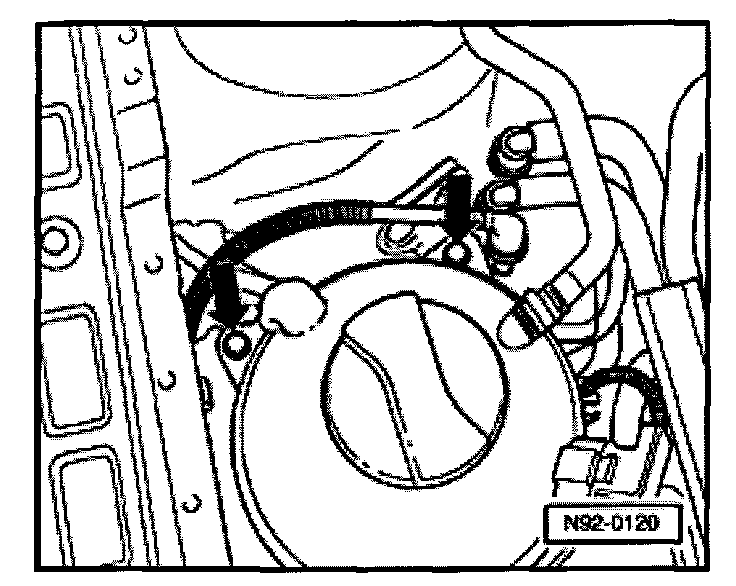

- Remove bolts -arrows- from activated charcoal filter and place activated charcoal filter to side with pipes/hoses still connected.

*) Where applicable

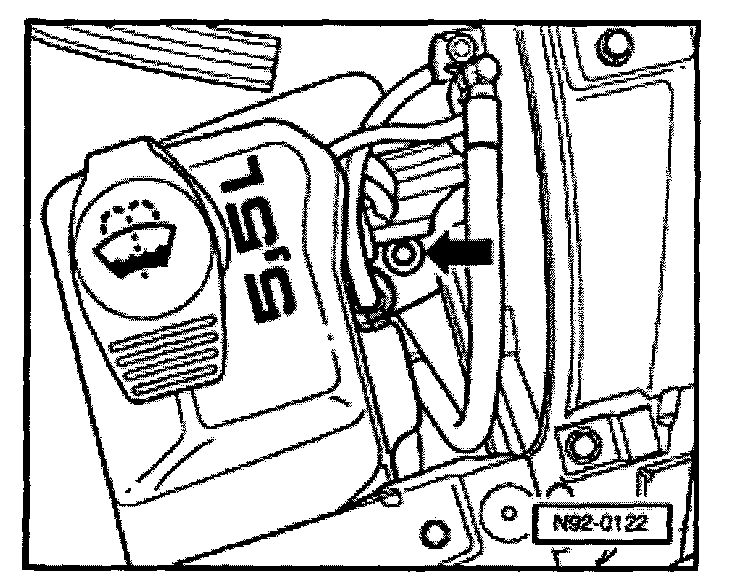

- Remove plastic nut -arrow- from windshield washer fluid reservoir.

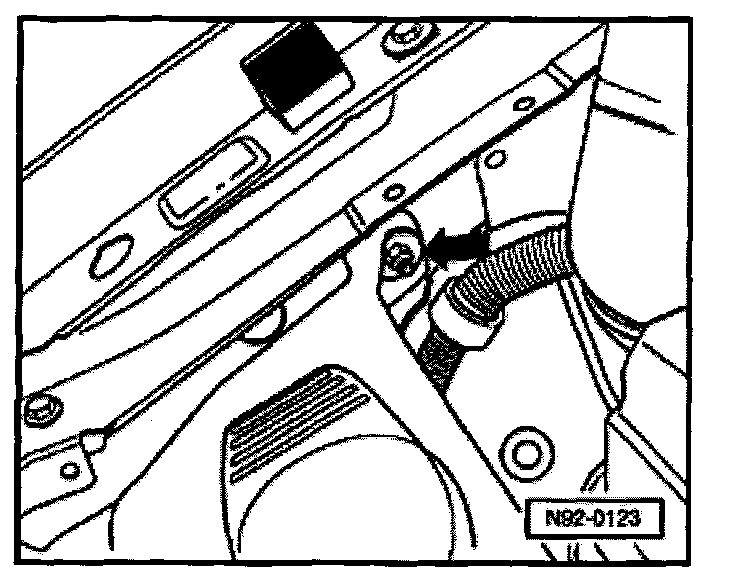

- Remove plastic nut -arrow- from windshield washer fluid reservoir.
- Pull hose and connections from washer pump and remove reservoir.

Installing
Install in reverse order of removal.
