Turbocharger

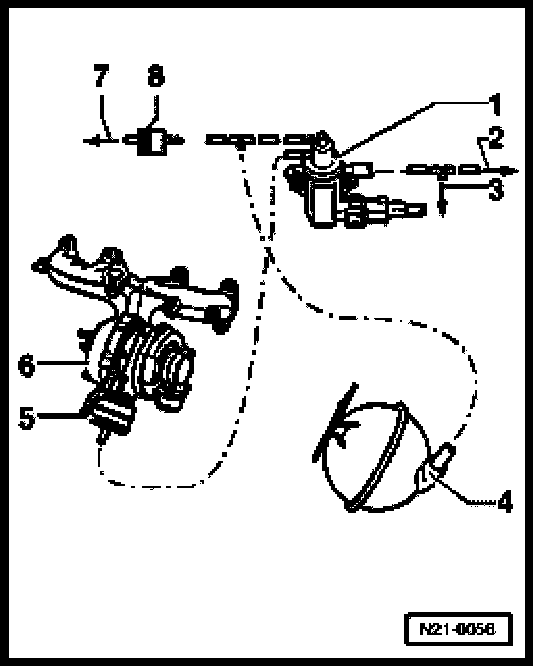

Line Connections Of Turbocharger







1 Wastegate Bypass Regulator Valve -N75-
2 To EGR Vacuum Regulator Solenoid Valve -N18-
3 To air filter
4 Vacuum reservoir
5 Vacuum diaphragm for charge pressure regulator valve
6 Turbocharger
7 To Change-over valve for intake manifold flap -N239-
8 Check valve, white connection faces toward Wastegate Bypass Regulator Valve -N75-
