Drive Belt

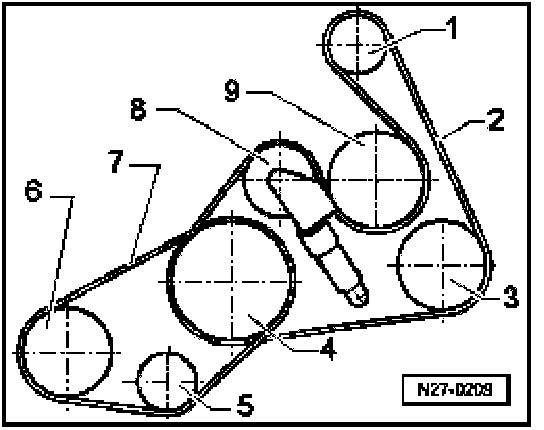

Ribbed Belt, Routing Diagrams







1. Pulley - Generator (GEN)
2. Ribbed belt - generator, power steering pump, crankshaft, tensioning roller and viscous coolant fan
3. Pulley - power steering pump
4. Pulley - crankshaft
5. Tensioning roller
6. Pulley - a/c compressor
7. Ribbed belt - a/c compressor, tensioning roller and crankshaft
8. Tensioning roller
9. Pulley - viscous coolant fan
