License Plate Lamp: Service and Repair

License Plate Light -X-, Removing And Installing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

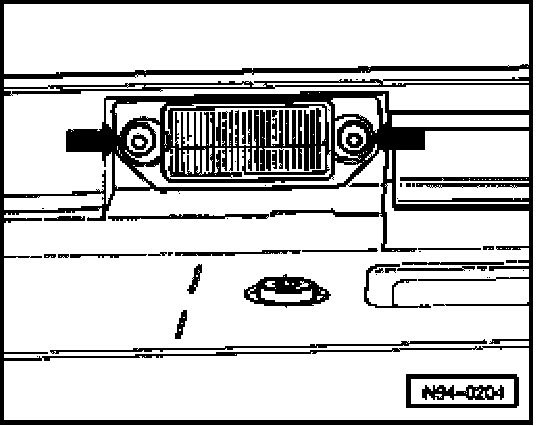

- Remove screws -arrows-.
- Disconnect electrical connector.
- Remove lens.

Installing
- Install in reverse order of removal.
