Engine - Oil Filter/Oil Specifications/Capacities
17 07 07Mar. 29, 2007
2010413, Supersedes Technical Bulletin Group 17 number 05-03 dated August 26, 2005 due to inclusion into ElsaWeb and Metadata.

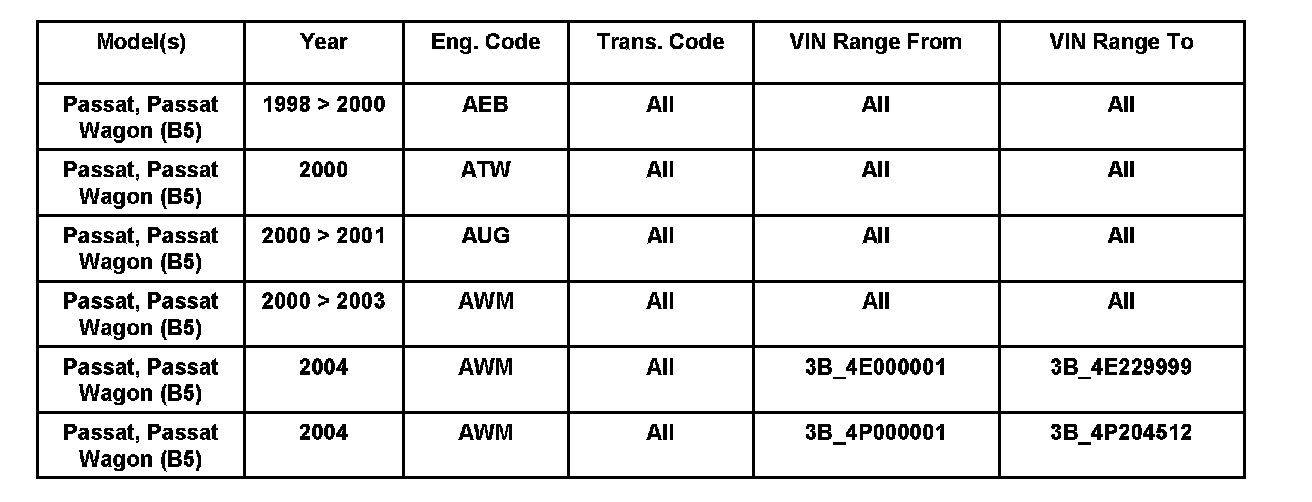

Vehicle Information
Condition
Engine Oil Specifications, Oil Capacity, Oil Filter
The 1.8T engine (Engine codes AEB, ATW, AUG, AWM), should always use engine oil that conforms to Volkswagen Oil Standard VW 502.00 (with viscosities of SAE 5W-40, 5W-30 or 0W-40).
These vehicles should always use engine oil filter Part No. 068115561B.
Technical Background
Not applicable.
Production Solution
Oil filter Part No. 068115561B, installed in vehicles beginning with the following VINs:
3B_4E230000 (Emden)
3B_4P204513 (Mosel)
Service
All scheduled services, should always use engine oil that conforms to Volkswagen Oil Standard VW 502.00 and use engine oil filter Part No. 068115561B.
All topping off of engine oil between services should always use engine oil that conforms to same Volkswagen Oil Standard VW502.00
For a list of approved engine oils, refer to Technical Bulletin "Engine Oils Which Meet Volkswagen Oil Quality Standards VW 502 00 & 505 01", see instance 2012855.
The list can also be found on the websites.
Engine Oil Filter
These vehicles should always use engine oil filter Part No. 068115561B.
Engine Oil Capacity
Engine oil capacity with filter 068115561B is 4.1 liters (4.3 Quarts).
Warranty
Information only.
Required Parts and Tools
No Special Tools required.
No Special Parts required. Always see ETKA for the latest part(s) information.
