Headlamp Washer Reservoir: Service and Repair

Windshield And Headlight Washer Reservoir, Removing And Installing

Removing

Proceed as follows:
- Move lock carrier into service position
- Remove left front wheel housing liner


NOTE:
- On vehicles equipped with 1.8L Turbo engines, it may also be necessary to remove the inter cooler
- It may also be necessary to remove the horns.

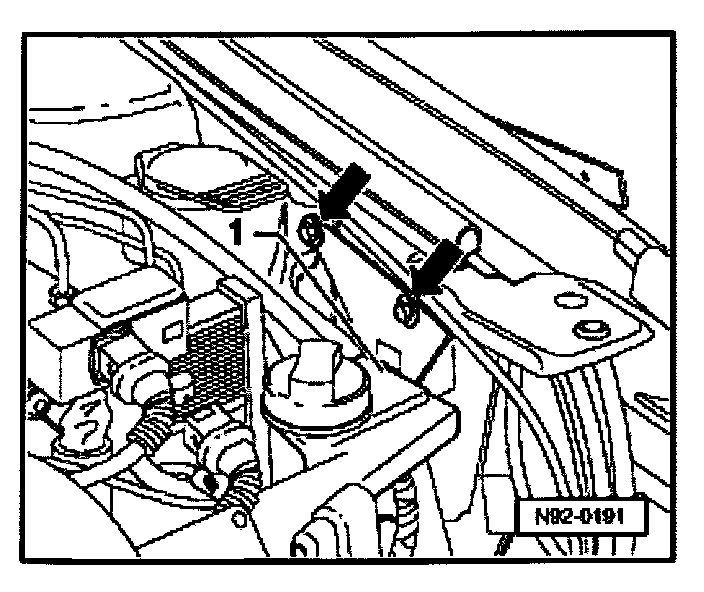

- Remove screws -arrows-, lift out power steering reservoir and carefully lay to one side (hoses remain connected!).

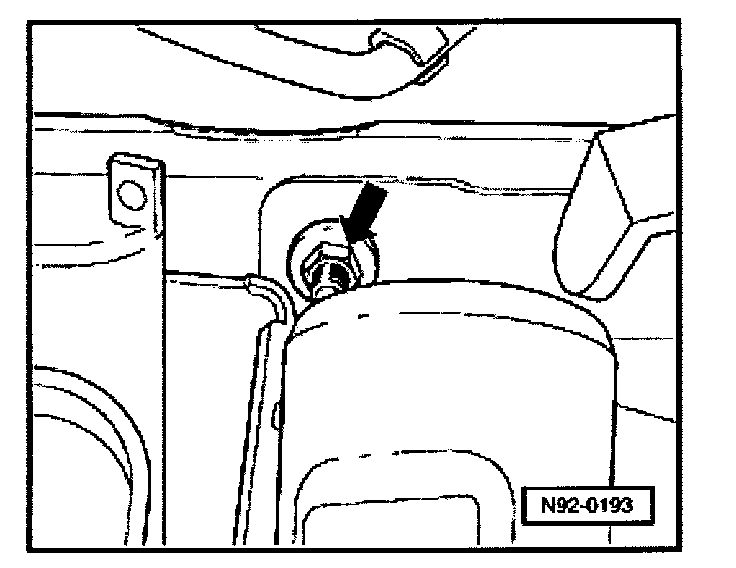

- Remove fastener -arrow- at long member.







- Disconnect electrical connections -1-, -3- and -5-.
- Separate hose coupling -4- from headlight washer -2-.
- Separate hose -7- from windshield washer pump -6-.
- Remove screws -arrows- and remove reservoir assembly.

Installing
Installation is in reverse order of removal.
