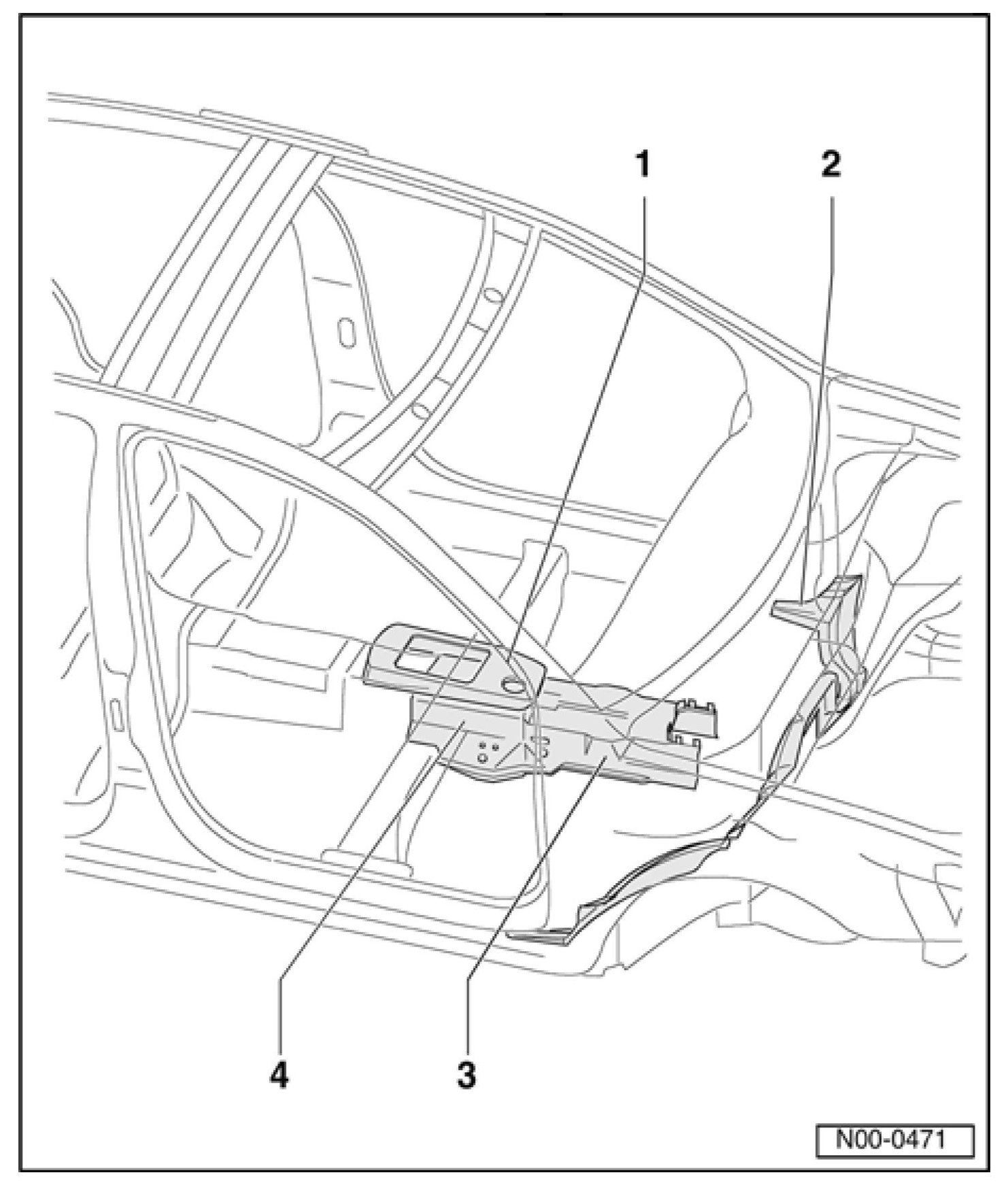

Center Body (Reinforcements)

Body, Center







1. Gear shift housing reinforcement
- Weld in, Straight-line spot weld seam

2. Footwell crossmember
- Weld in, Gas-shielded arc stitch weld seam, Straight-line spot weld seam

3. Tunnel longitudinal member
- Weld in, Straight-line spot weld seam

4. Tunnel reinforcement
- Weld in, Straight-line spot weld seam
