Condenser HVAC: Service and Repair

Condenser, Removing And Installing







CAUTION:
Before beginning repairs:
- Switch off all electrical consumers.
- Switch off ignition.
- Remove ignition key from ignition switch.

NOTE:
- Before carrying out any work on the A/C refrigerant system, refer to A/C refrigerant system safety measures.
- Condenser must only be serviced or replaced after discharging refrigerant system. Use Kent Moore ACR4 or equivalent.
- O-rings used on R-134a systems may be red, green, violet or black.
- Always plug open refrigerant line connections to prevent dirt and moisture contamination.

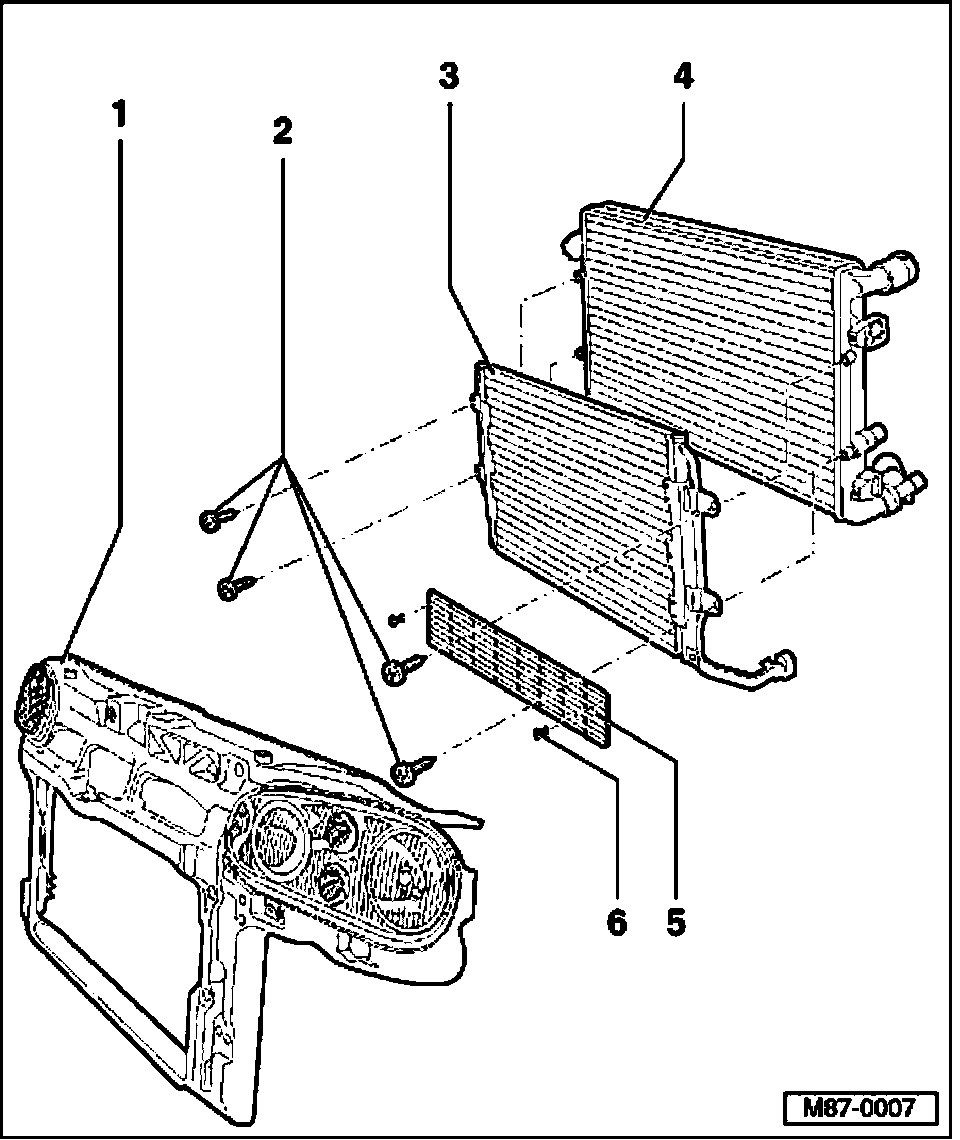

1. Lock carrier
2. Screws
- 8 Nm (71 in. lb)
- Qty. 4
3. Condenser
4. Radiator
- Always replace coolant after removal/replacement
5. Grille
- Where applicable
6. Clips
- Where applicable

Removing
- Discharge refrigerant system
- Remove refrigerant hoses at condenser and seal off.
- Remove lock carrier
- Remove screws -2-.
- Remove clips -6- and grille -5- (where applicable).
