Tail Lamp: Locations

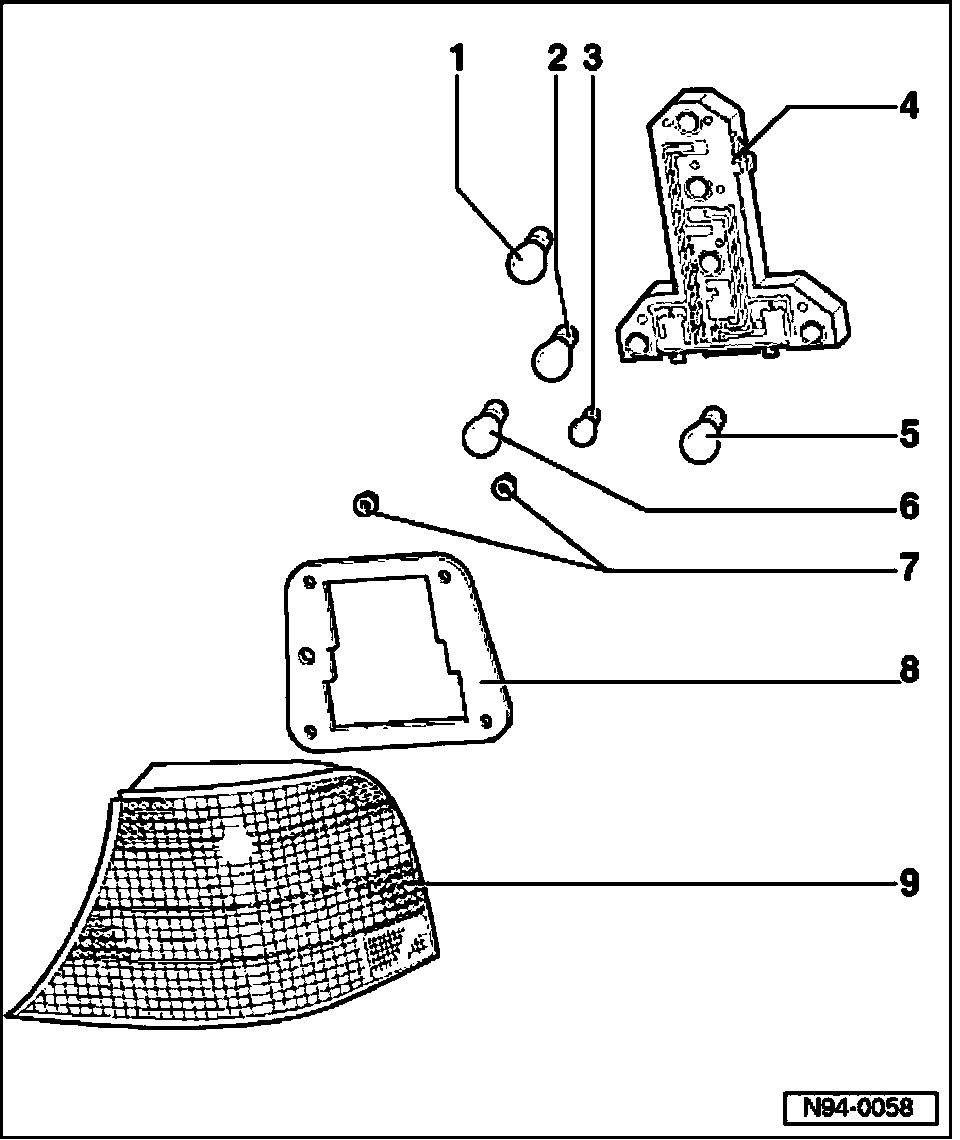

Rear Lights - Golf, Assembly







1. Brake Light bulb -M9- / -M10-
12 V / 21 W
2. Turn Signal bulb -M6- / -M8-
12 V / 21 W
3. Tail Light bulb -M2- / -M4-
12 V / 10 W
4. Bulb holder
5. Back-Up Light bulb -M16- / -M17-
12 V / 21 W
6. Rear Fog Light Bulb -L20-
12 V / 21 W
Where applicable - left side only
7. Hex nuts M5
Qty. 3
8. Gasket
- Replace if damaged
9. Housing
