Load Compensator, Rear Wheel Brakes

Specifications for load dependent brake pressure regulator

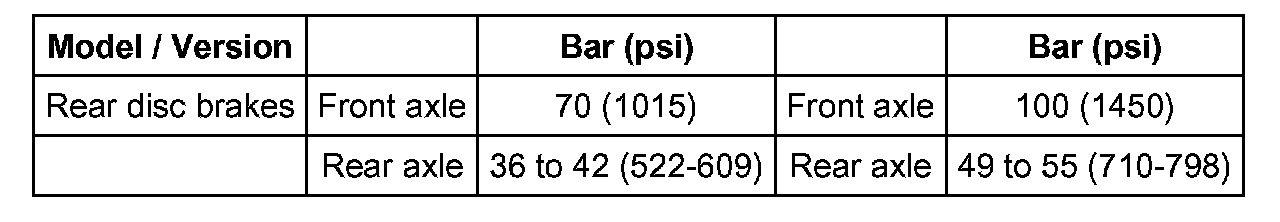

Specifications for load dependent brake pressure regulator:

Adjusting brake pressure regulator
Rear axle test pressure too high:
- Release regulator spring.
Rear axle test pressure too low:
- Increase tension regulator spring.

Note: Do not adjust with brake pedal depressed. Use the following work sequence:

Read off figures:
- Release pedal.
- Adjust spring.
Press pedal again:
- Read off figures and if necessary, readjust.
- Remove pressure gauge and bleed brake system.
