Transmission, Identification

Transmission, identification, 09A, 5 Spd. A/T
The 5 speed automatic transmission 09A is installed in the Golf and Jetta in combination with a 4 or 6-cylinder engine.

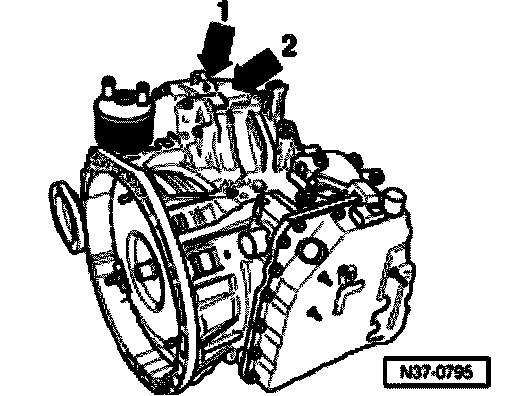

Location on transmission





Code letters (arrow -1-)
5-speed automatic transmission 09A (arrow -2-)

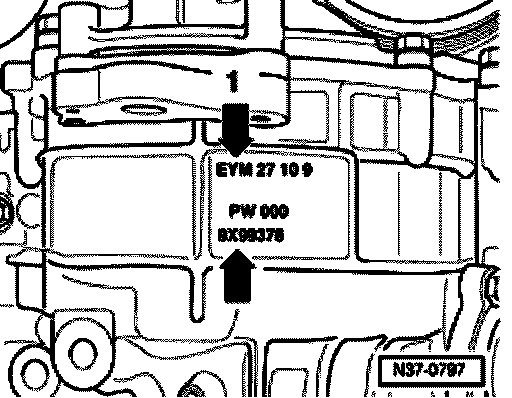

Code letter (arrow -1-)

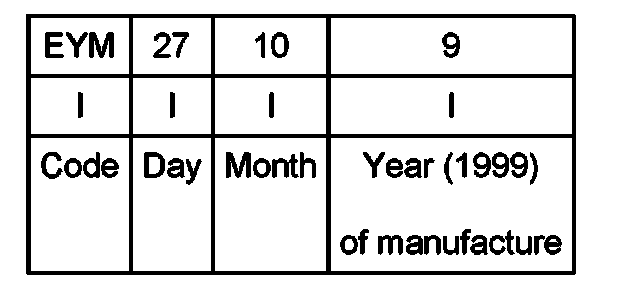

Example:





The code letters of the transmission are also given on the vehicle data plates.

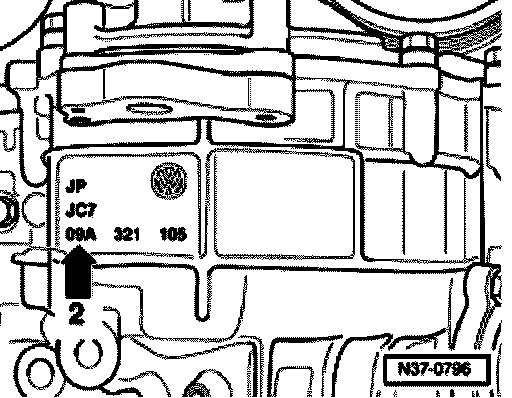

Manufacturer's code (arrow)





5-speed automatic transmission 09A (arrow -2-)
