Evaporative Emissions System: Diagrams

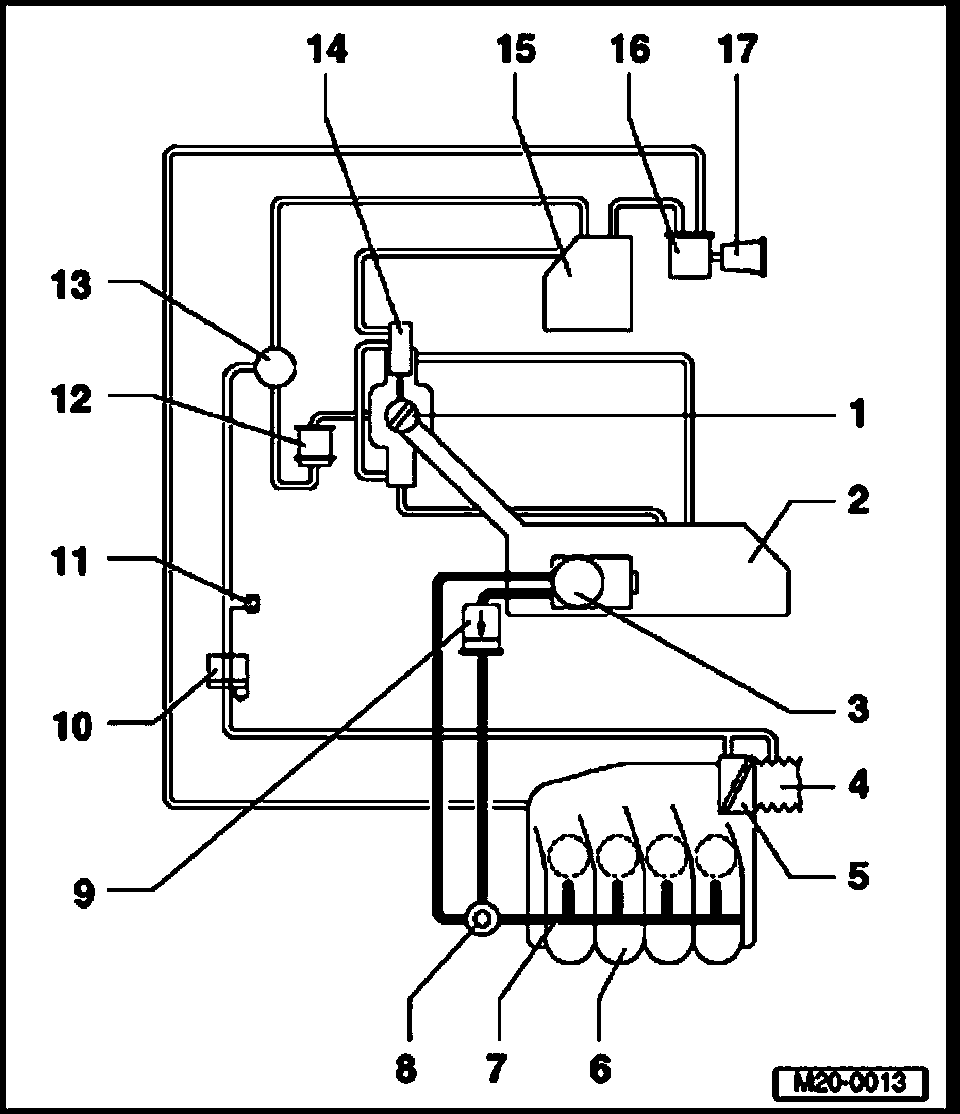

EVAP Canister System, Overview (vehicles With Engine Code AVH)







1. Tank lid unit
- with rubber cap
2. Fuel tank
3. Fuel pump (FP) unit
4. Intake hose
5. Throttle valve control module -J338
6. Upper section of intake manifold
7. Fuel rail with fuel injectors
8. Fuel pressure regulator
9. Fuel filter
- Installation position: Arrow points in direction of flow
10. Evaporative Emission (EVAP) canister purge regulator valve -N80
- Installation position: Arrow points in direction of flow
11. Test connection
12. Gravity valve
13. Pressure retention valve
14. Change-over valve
15. EVAP canister
- Under wheelhousing liner in rear right wheelhousing
16. Leak Detection Pump (LDP) -V144
- Under wheelhousing liner in right rear wheelhousing
17. Air filter for leak detection pump
