Body Control Systems: Locations

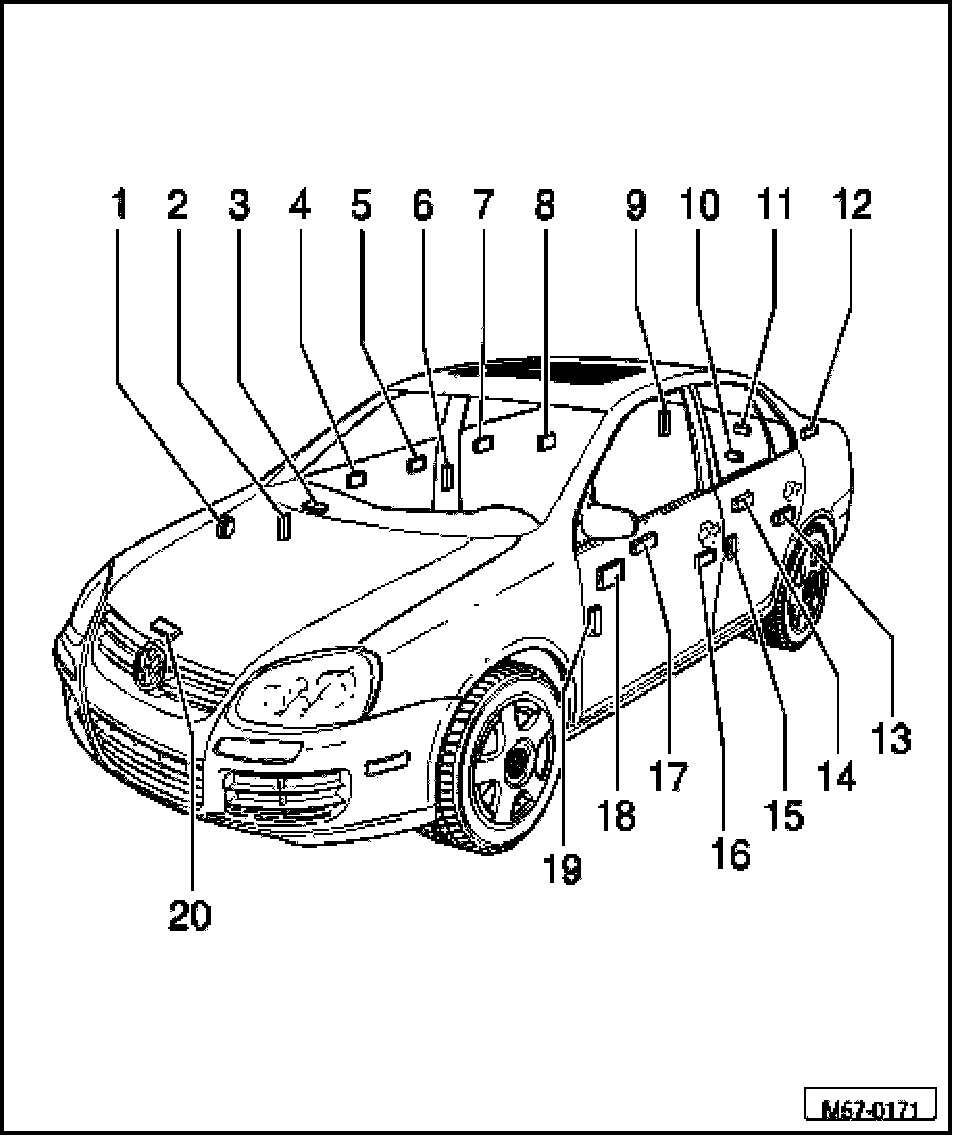

Component Locations Overview Of Components For Central Locking System







1. Alarm signal horn
- Component location: In right front wheelhousing under rear section of wheelhousing liner removing rear section of wheelhousing liner.
2. Connector station
- Component location: A-pillar, right
- To disconnect harness connector, release bellows at A-pillar
3. Comfort System Central Control Module J393
- Component location: Under instrument panel, front passengers side, behind glove compartment removing glove compartment.
4. Front Passengers Door Control Module J387
- Integrated in window regulator motor (removing window regulator motor )
5. Door lock
- Door lock is secured to door inner part (removing door lock )
- Electrical central locking system is integrated in door lock.
6. Connector station
- Component location: B-pillar, right.
- To disconnect harness connector, release bellows at B-pillar
7. Right Rear Door Control Module J389
- Integrated in window regulator motor (removing window regulator motor )
8. Door lock
- Door lock is secured to door inner part (removing door lock )
- Electrical central locking system is integrated in door lock.
9. Fuel Tank Lid Unlock Motor V155
- Component location: Behind right, side luggage compartment trim
10. Rear lid lock
- Component location: Bolted on rear lid.
11. Rear Lid Handle Unlock Switch E234
- not installed on all vehicles
- Integrated into grip piece for rear lid removing grip piece
12. Connector station for rear lid, left
- Component location: Behind left, side luggage compartment trim (removing left, side luggage compartment trim)
13. Door lock
- Door lock is secured to door inner part (removing door lock )
- Electrical central locking system is integrated in door lock.
14. Left Rear Door Control Module J388
- Integrated in window regulator motor (removing window regulator motor )
15. Connector station
- Component location: B-pillar, left
- To disconnect harness connector, release bellows at B-pillar
16. Door lock
- Door lock is secured to door inner part (removing door lock )
- Electrical central locking system is integrated in door lock.
17. Central switch for window regulator
- Component location: installed in door trim
- Removing and installing central switch for window regulator
18. Drivers Door Control Module J386
- Integrated in window regulator motor (removing window regulator motor )
19. Connector station
- Component location: A-pillar, left
- To disconnect harness connector, release bellows at A-pillar
20. Front Hood Switch F266
- Contact switch for anti-theft warning system
- Cannot be replaced individually
- Component location: On lid lock (removing lid lock )
