Parking Assist Control Module

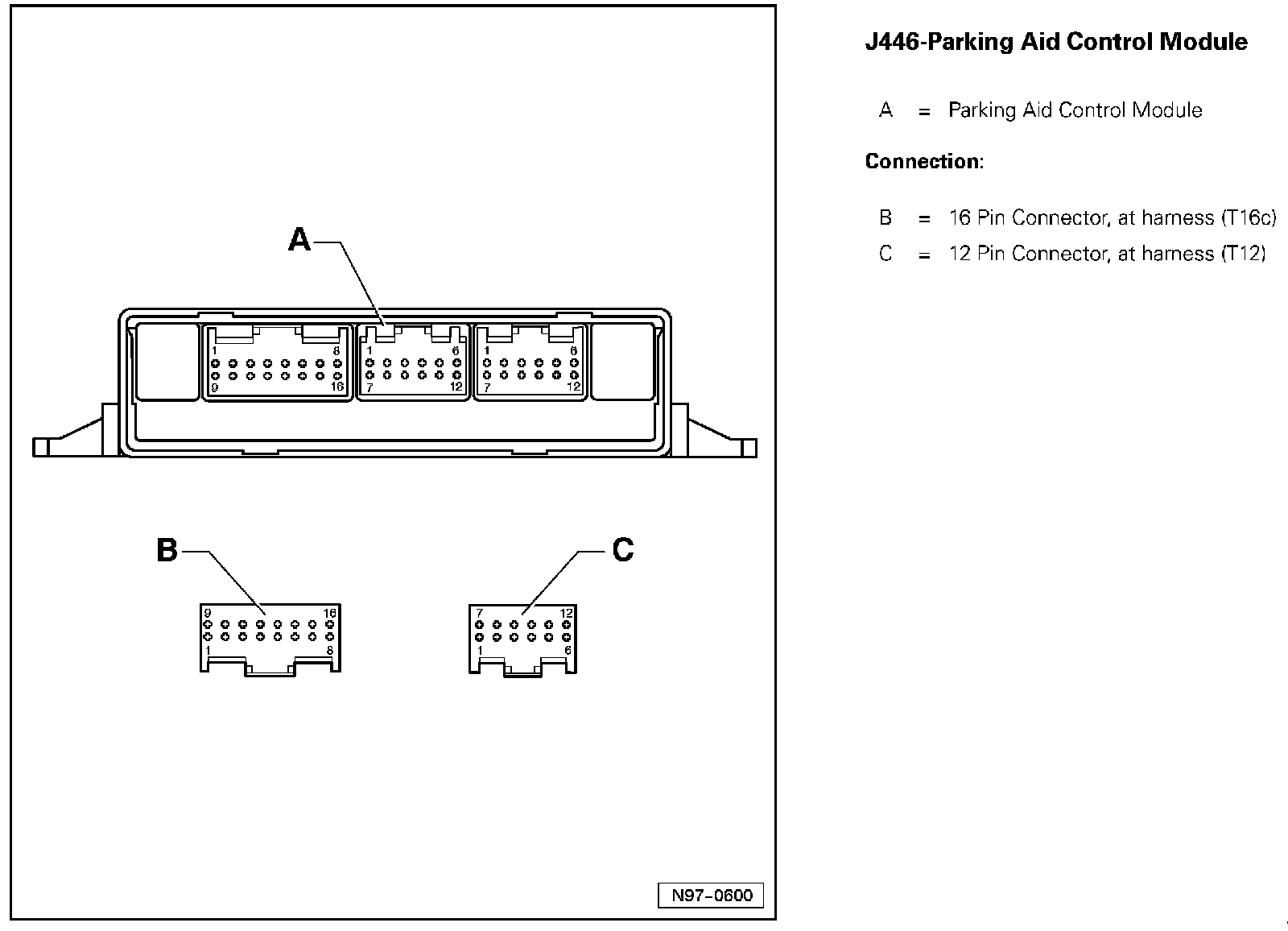

Parking Aid Control Module J446 - Part 1:



Parking Aid Control Module J446 - Part 2:
