Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volkswagen
>>
2005
>>
Jetta Sedan (1K2) L4-1.9L DSL Turbo (BRM)
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>

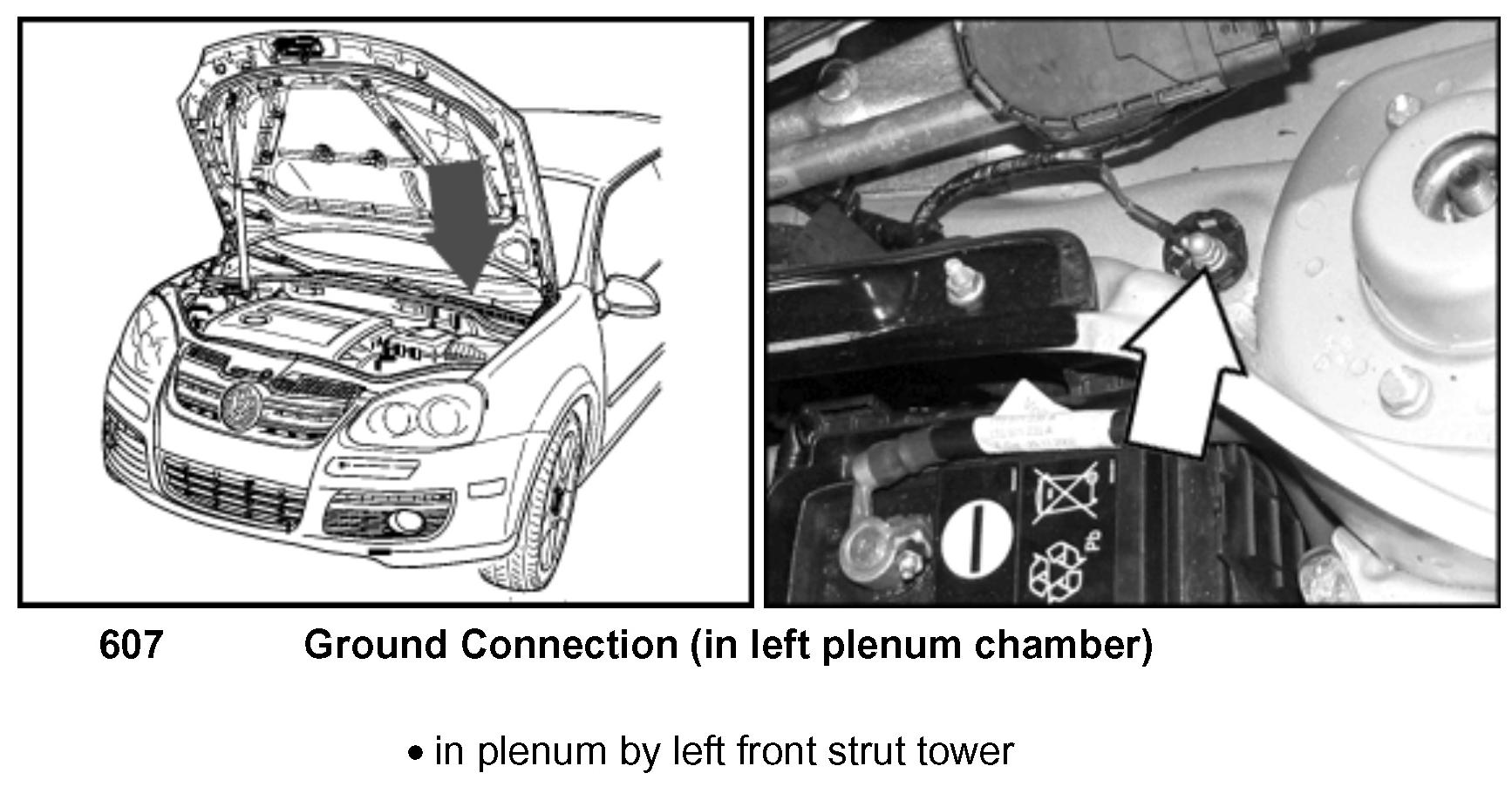

Ground Connection 607 (In Left Plenum Chamber)
Ground Connection 607 (In Left Plenum Chamber)
Ground Connection (in Left Plenum Chamber) 607:
