Turbocharger

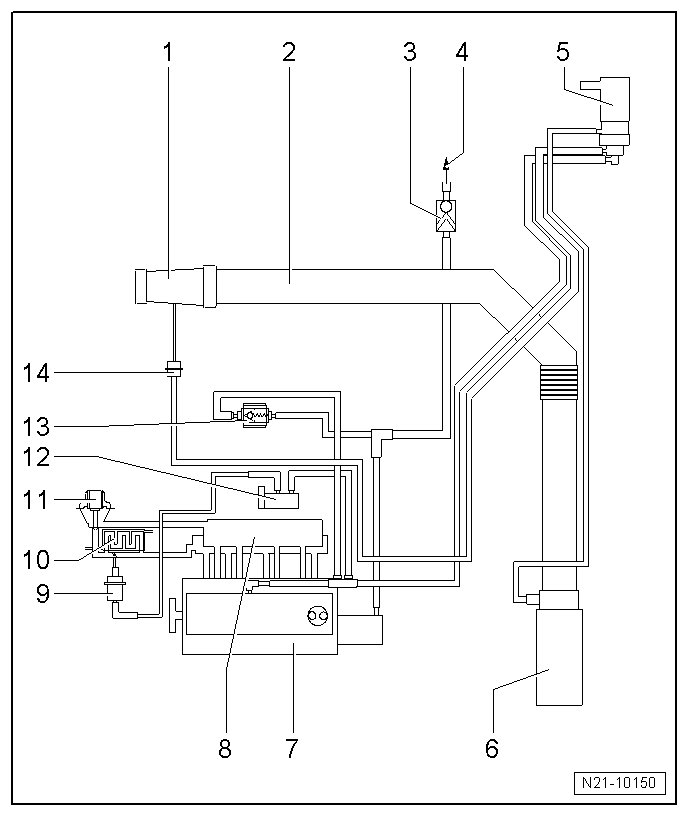

Vacuum Hose Connection Diagram





1 Turbocharger

2 Air filter/turbocharger connecting pipe

3 Non-return valve

• Note installation position

4 To brake booster

5 Wastegate bypass regulator valve (N75)

6 Air filter housing

7 Cylinder head/cylinder block

8 Intake manifold

9 Bypass-flap

• For cooler for Exhaust Gas Recirculation (EGR)

10 Radiator

• For Exhaust Gas Recirculation (EGR) system

11 EGR vacuum regulator solenoid valve (N18)

12 Exhaust Gas Recirculation (EGR) cooler switch-over valve (N345)

13 Non-return valve

• Note installation position

14 Non-return valve

• Note installation position
