Tail Lamp: Locations

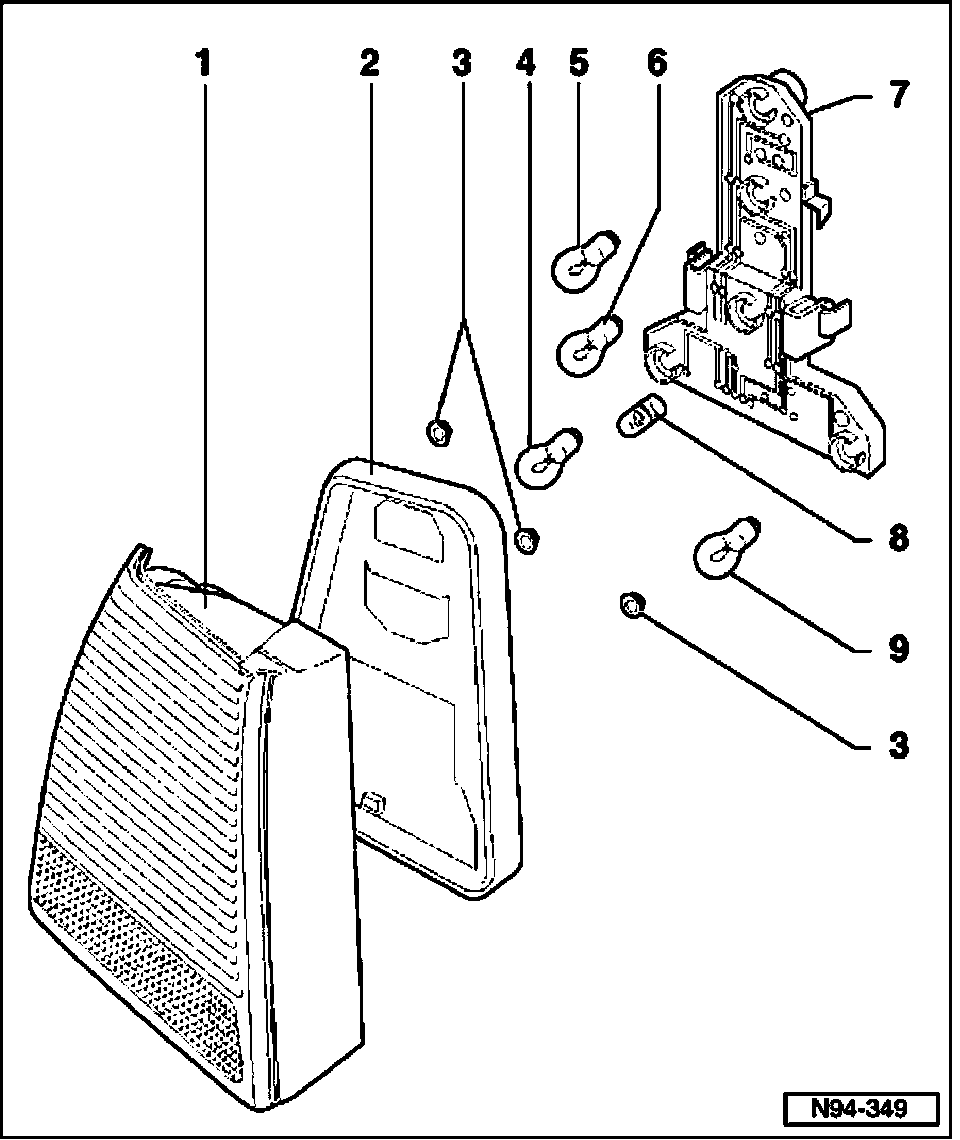

Rear Lights - Jetta, Assembly







1. Housing
2. Gasket
- Replace if damaged
3. Hex nuts M5
Qty. 3
4. Rear Fog Light Bulb -L20-
12 V / 21 W
Where applicable - left side only
5. Brake Light bulb -M9- / -M10-
12V / 21 W
6. Turn Signal bulb -M6- / -M8-
12V / 21 W
7. Bulb holder
8. Tail Light bulb -M2- / -M4-
12 V / 5 W
9. Back-Up Light bulb -M16- / -M17-
12 V / 21 W
