Body - Driver's Door Lock Cylinder is Inoperative (US)

Condition





57 07 03

Feb. 22, 2007

2011272, Supersedes Technical Bulletin Group 57 number 06-01 dated February 1, 2006 to remove Canadian market.

Driver Door Lock Cylinder Inoperative (U.S.)

Technical Background

Tip:

Improved lock cylinders can be rotated 360 if inward pressure is applied to the key. This is a normal function of the anti-theft design. DO NOT replace the lock cylinder for this condition.

Production Solution

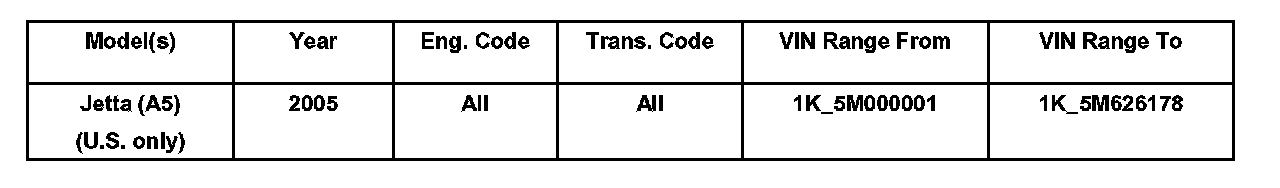

Improved lock cylinders as of VIN: 1K_5M626179.

Service

If customer expresses concerns on this condition:

^ Replace driver's door lock cylinder ONLY. See Required Parts and Tools. (see Repair Manual Body Interior Group 57 - Front doors, Central locking system, Door lock, removing and installing).

Parts Ordering

Order correct door lock cylinder using Red Order Only.

Order must include VIN and Key Code.

Orders will be processed daily and shipped directly to dealerships from the vendor.





Warranty





Required Parts and Tools

Tip:

Part number(s) are for reference only. Always see ETKA for the latest part(s) information.
