Interior - Rear Center Arm Rest Lock Cylinder Noisy (US)

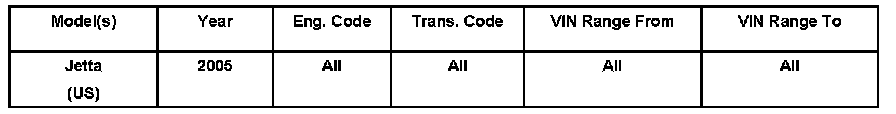

Condition

Rear Center Arm Rest, Lock Cylinder Noisy (US)





74 06 02 Nov. 10, 2006, 2010475, Supersedes Technical Bulletin Group 74 number 05-02 dated April 14, 2005 due to inclusion into ElsaWeb.

Technical Background





Rear center armrest lock cylinder noisy.

Production Solution
Beginning C/W 09 of 2005: lock assembly has been optimized.

Service
Lubricate the contact surface around lock cylinder, where cylinder meets arm rest using Part No.G052142A2 as follows:

Tip: Lubricant Part No: G052142A2 is considered shop supply.

DO NOT apply lubricant into the cylinder.

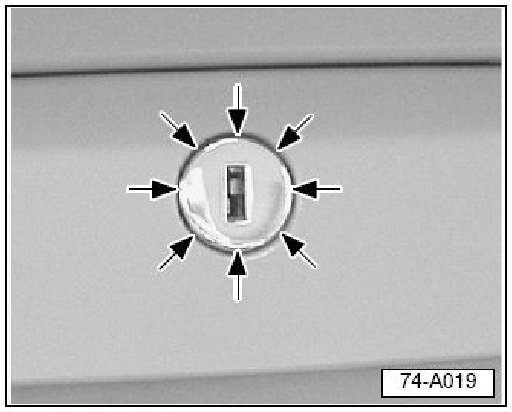

- Using a small applicator, pack lubricant into gap (arrows) between the lock cylinder and the opening in the armrest for the lock cylinder as shown.
- Operate release handle several times.
- Ensure noise has been eliminated.
- Clean all excess lubricant from lock cylinder and release handle.

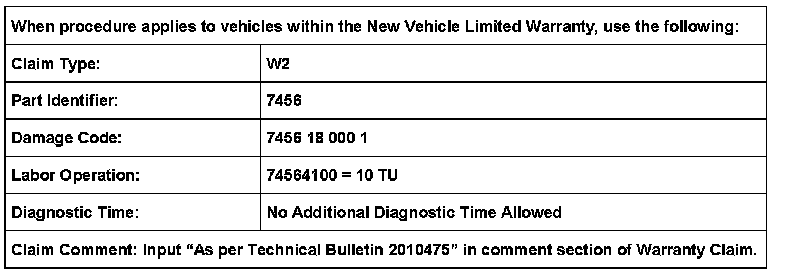

Warranty

Required Parts and Tools





Tip: Part number(s) are for reference only.Always see ETKA for the latest part(s) information.
