Interior - Rear Center Arm Rest Lock Cylinder Noisy
Group: 74Number: 05-02
Date: Apr. 14, 2005
Subject:
Rear Center Arm Rest, Lock Cylinder Noisy
Model(s):
U.S New Jetta 2005
Canada New Jetta 2006
Condition
Rear center armrest lock cylinder noisy.
Production
Beginning C/W 09 of 2005: lock assembly has been optimized.
Service

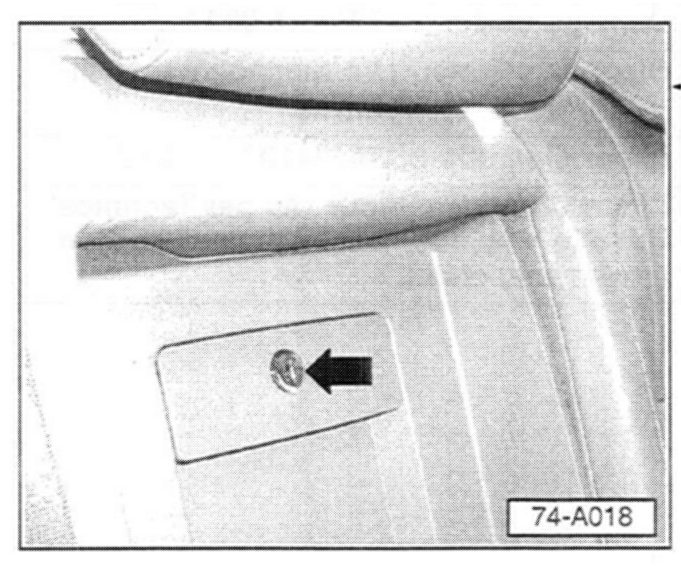

Lubricate the contact surface around lock cylinder, where cylinder meets arm rest using Part No. G 052 142 A2 as follows:
Tip:
^ Lubricant Part No:. G 052 142 A2 is considered shop supply
^ Part numbers listed in this bulletin are for reference only.
Always check with your Parts Dept for the latest parts information.
^ DO NOT apply lubricant into the cylinder.

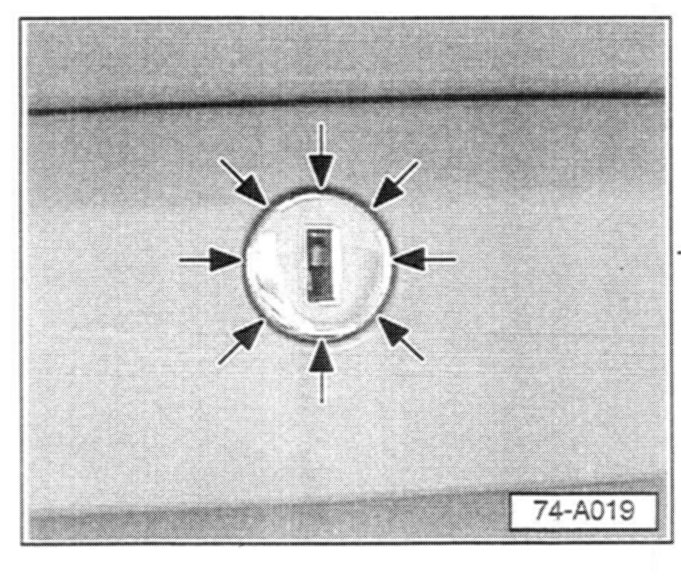

- Using a small applicator, pack lubricant into gap (arrows) between the lock cylinder and the opening in the armrest for the lock cylinder as shown.
- Operate release handle several times.
- Ensure noise has been eliminated.
- Clean all excess lubricant from lock cylinder and release handle.
When procedure applies to vehicles within the New Vehicle Limited Warranty, use the table.
