Paint - 'Klavierlack' Paint, Application Instructions
50 12 03April 24, 2012
2005874 Supersedes Technical Bulletin V500703 dated February 22, 2007 to include all Phaeton vehicles.

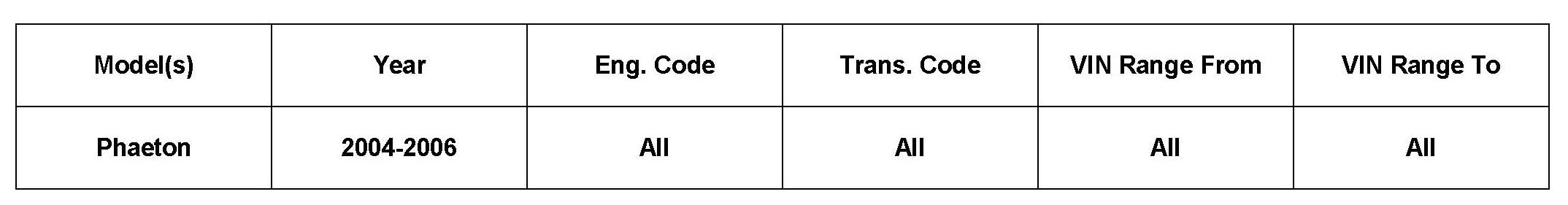

Vehicle Information
Condition
" Klavierlack" Paint, Application Instructions
Technical Background
Not applicable.
Production Solution
Not applicable.
Service
When refinishing a vehicle with " Klavierlack" (Piano Finish) high gloss finish paint:

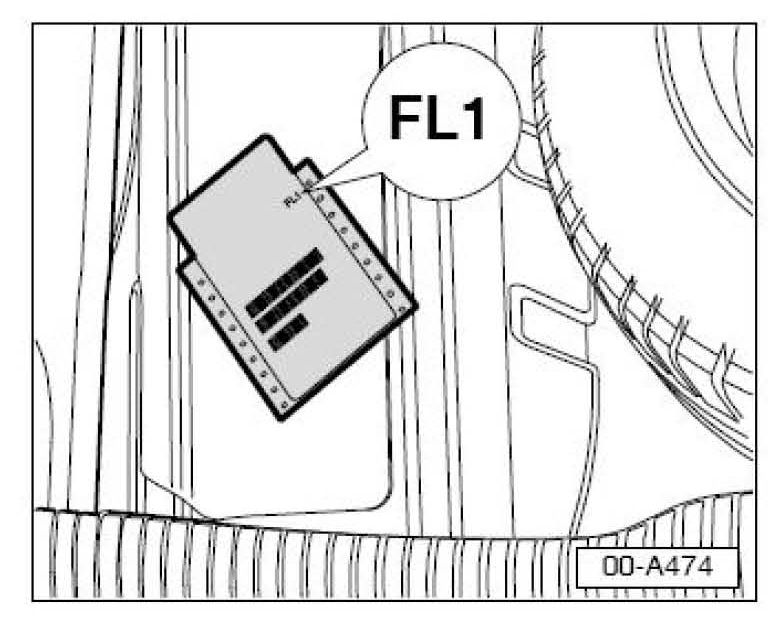

^ " Klavierlak" paint finish is an additional option
identified by " FL1" after the paint code on the
vehicle data sticker (located in the trunk of the
vehicle as shown).
^ Use instructions provided by the manufacturer of the system you are using.

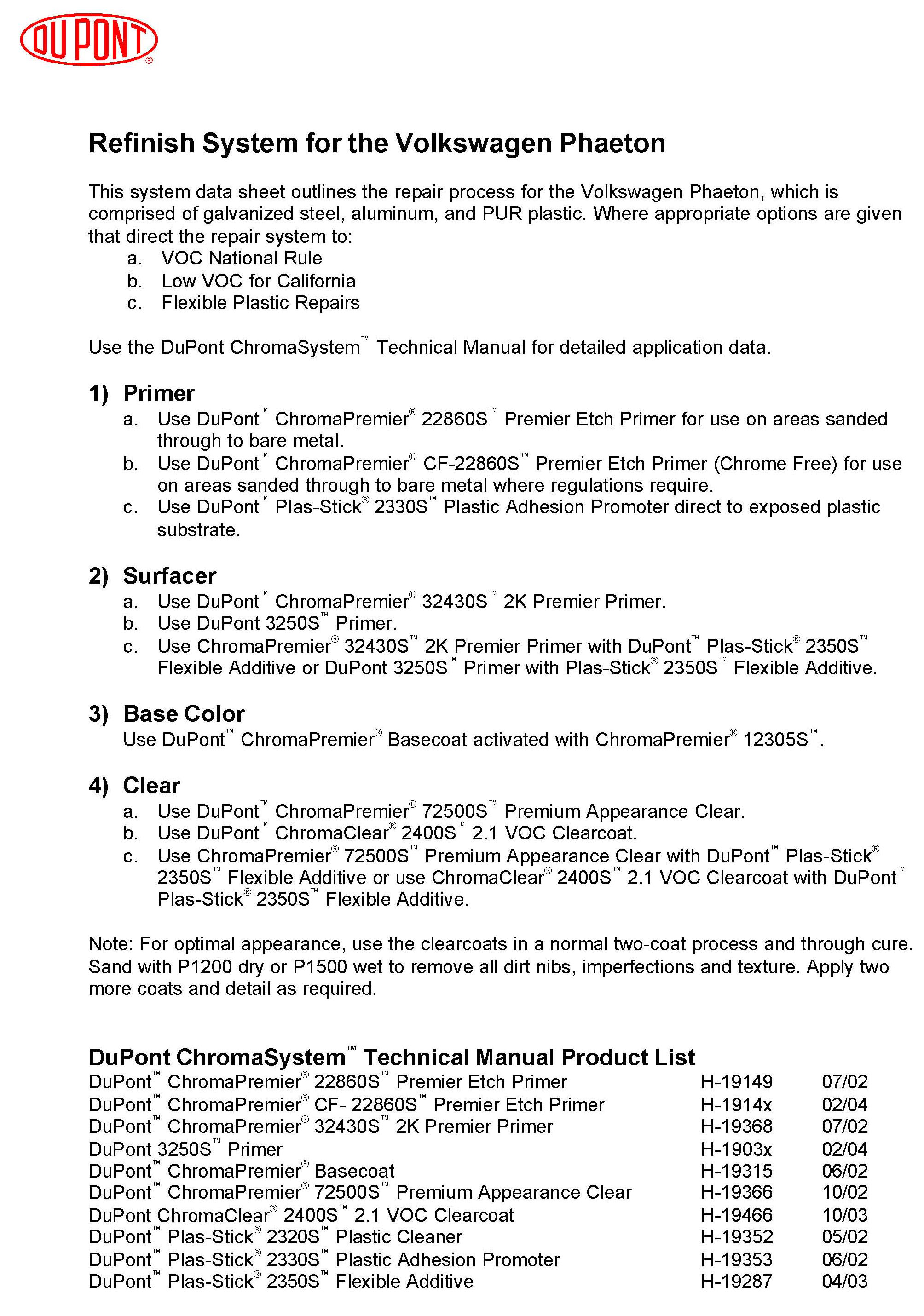

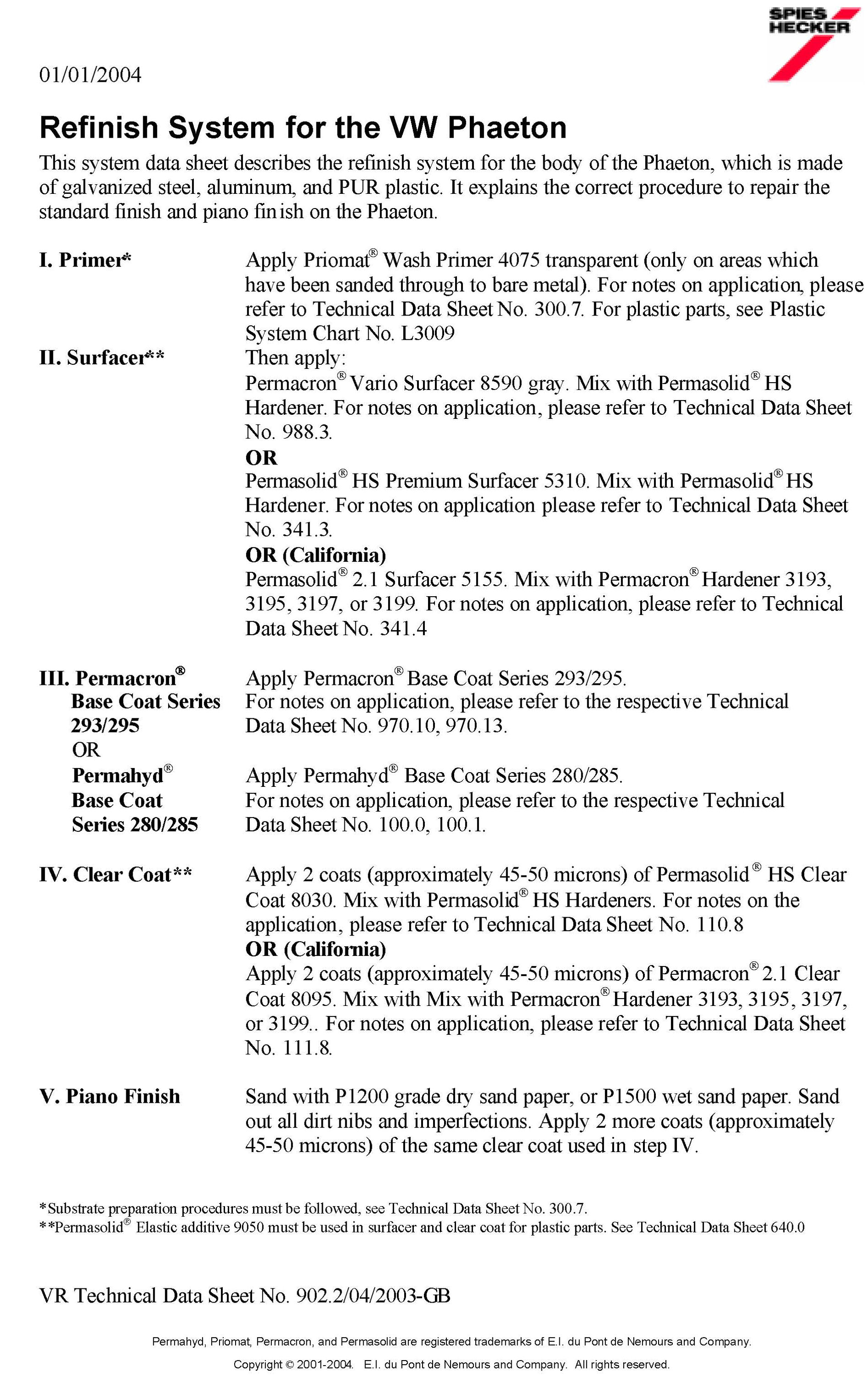

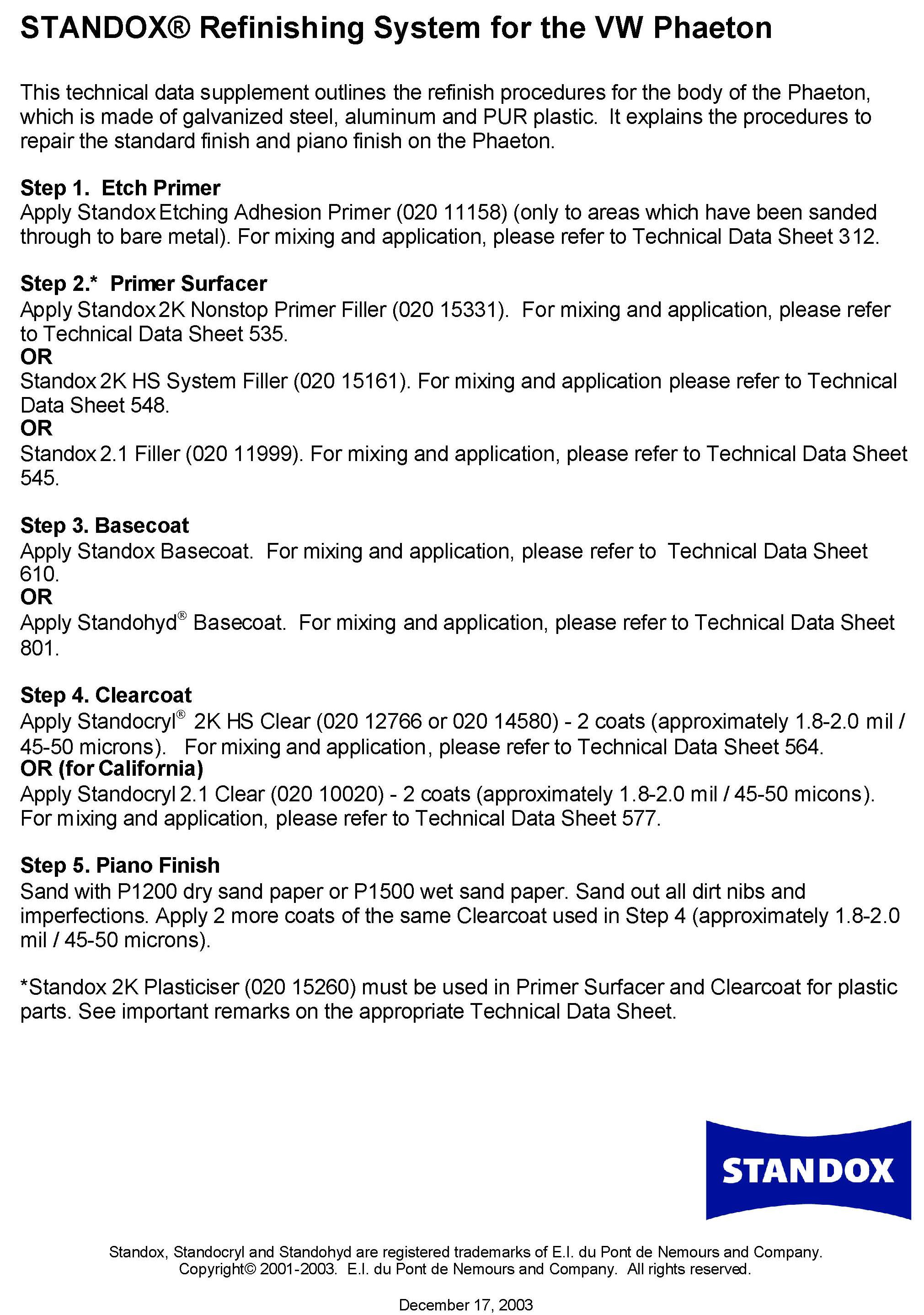

Attached are three approved systems.
For questions or technical support regarding these products or their instruction sets:
^ Contact the Manufacturer at the following:
Spies Hecker \01 www.spieshecker.com / Tel.: 1-888-371-3313
Standox \01 www.standox.com / Tel.: 1-800-551-9296
DuPont \01 www2.dupont.com/DuPont_Home/en_US/index.html / Tel.: 1-800-438-3876
For questions or technical support regarding other approved systems or their instruction sets:
^ Contact the manufacturer of that system.
Warranty
Information only.
Required Parts and Tools
No Special Tools required.
No Special Parts required.
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
