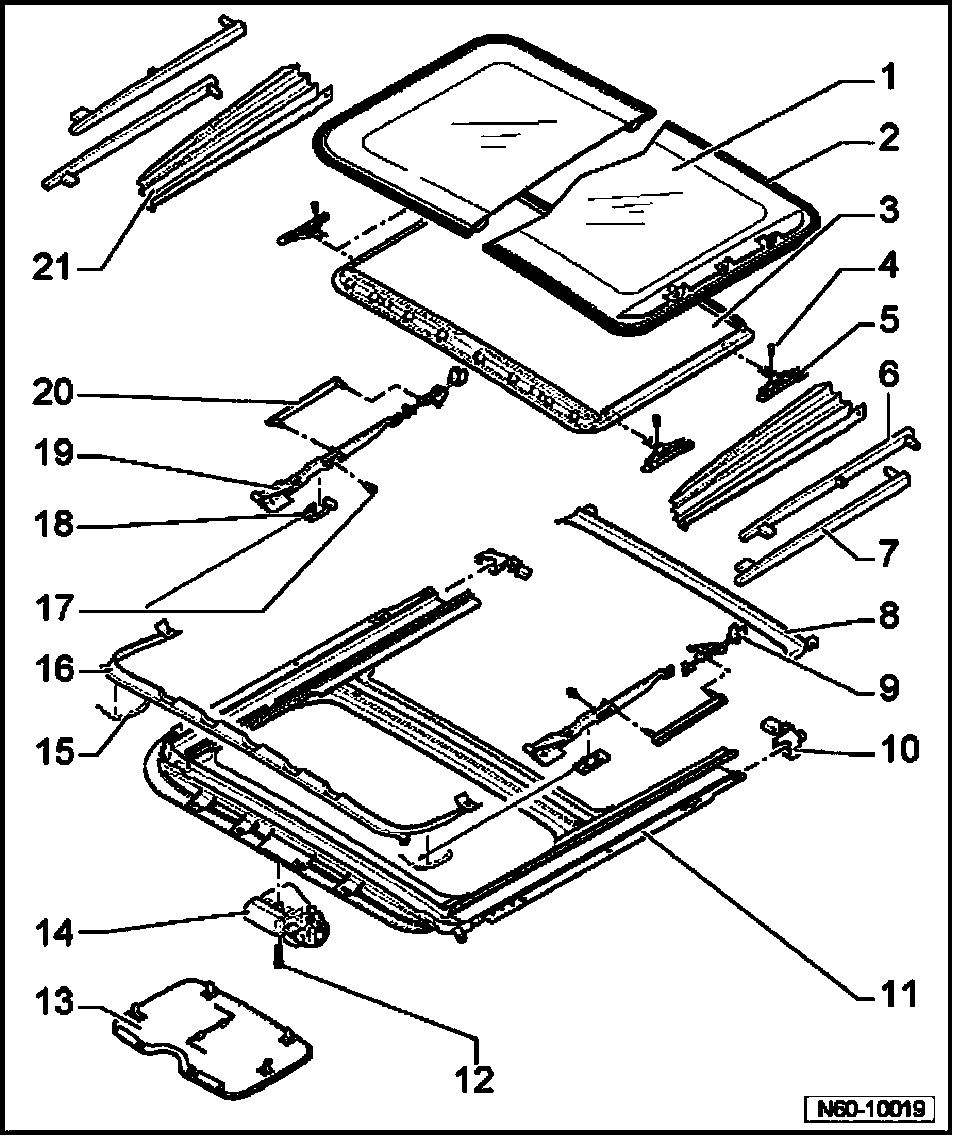

Sunroof With Glass Panel, Assembly Overview

Sunroof With Glass Panel, Assembly Overview







1. Glass panel for sunroof (single pane safety glass)
- Removing glass panel for sunroof.
- Installing glass panel for sunroof.
- Adjusting glass panel for sunroof.
2. Panel seal
- Adjusting panel seal.
- Seal join at center in rear area
- Panel seal, replacing.
3. Sliding headliner
- Removing and installing sliding headliner.
4. Countersunk screws (micro encapsulated)
- Always use new countersunk screws
- 3.5 Nm
5. Slider
6. Upper trim
- Up to calender week 35 2002 (CW 35/02)
7. Lower trim
- Up to calender week 35 2002 (CW 35/02)
8. Water channel
- Removed together with slotted guide rail
9. Guide locking hook
10. End piece
- Use Butyl adhesive sealing cord AKL 450 005 05 for sealing
11. Installation unit
- Removing and installing installation unit
- if necessary use special grease G 000 450 02 exclusively to grease guide channels, otherwise functions cannot be guaranteed.
12. Bolt
- 3.5 Nm
13. Hex wrench for emergency operation
- Clipped in on drive motor cover
14. Drive motor
- Adjusting drive motor (zero position).
15. Spring
16. Wind deflector
17. Torx screw
- Torx T25
- 4.5 Nm
18. Rear guide
- Removed together with slotted guide rail
19. slotted guide rail
20. Gap bracket
- Removed together with slotted guide rail
21. Trim piece
- From calender week 36 2002 (CW 36/02) on

NOTE: Trim piece and trim must not be replaced against each other. Clearance for mechanical components is otherwise not guaranteed.
