Home >> Volkswagen >> 2006 >> GTI (1J1) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Master Diagram Index >> Sensors and Switches Only

Sensors and Switches Only



A/C - Em:

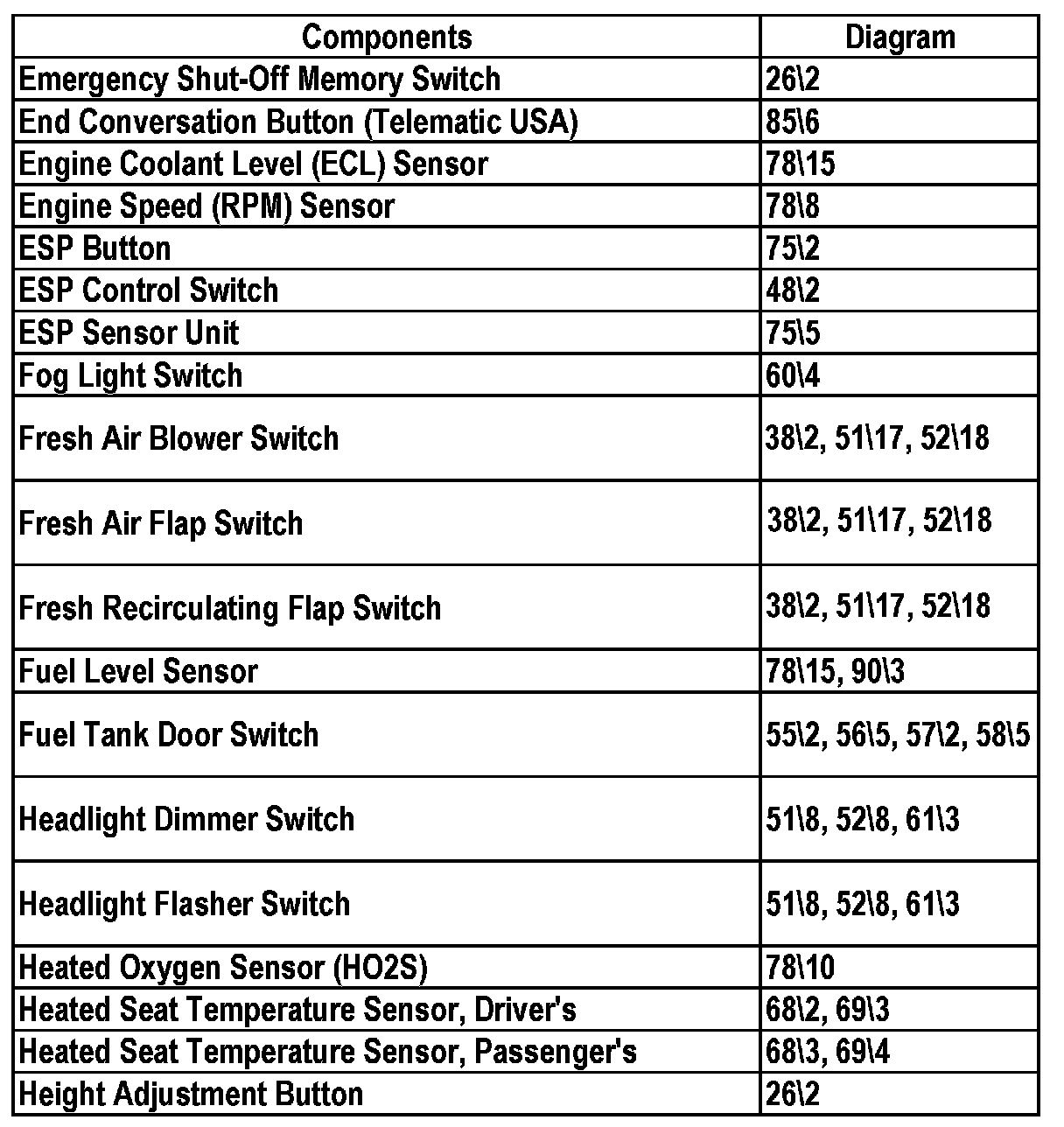

Em - He:

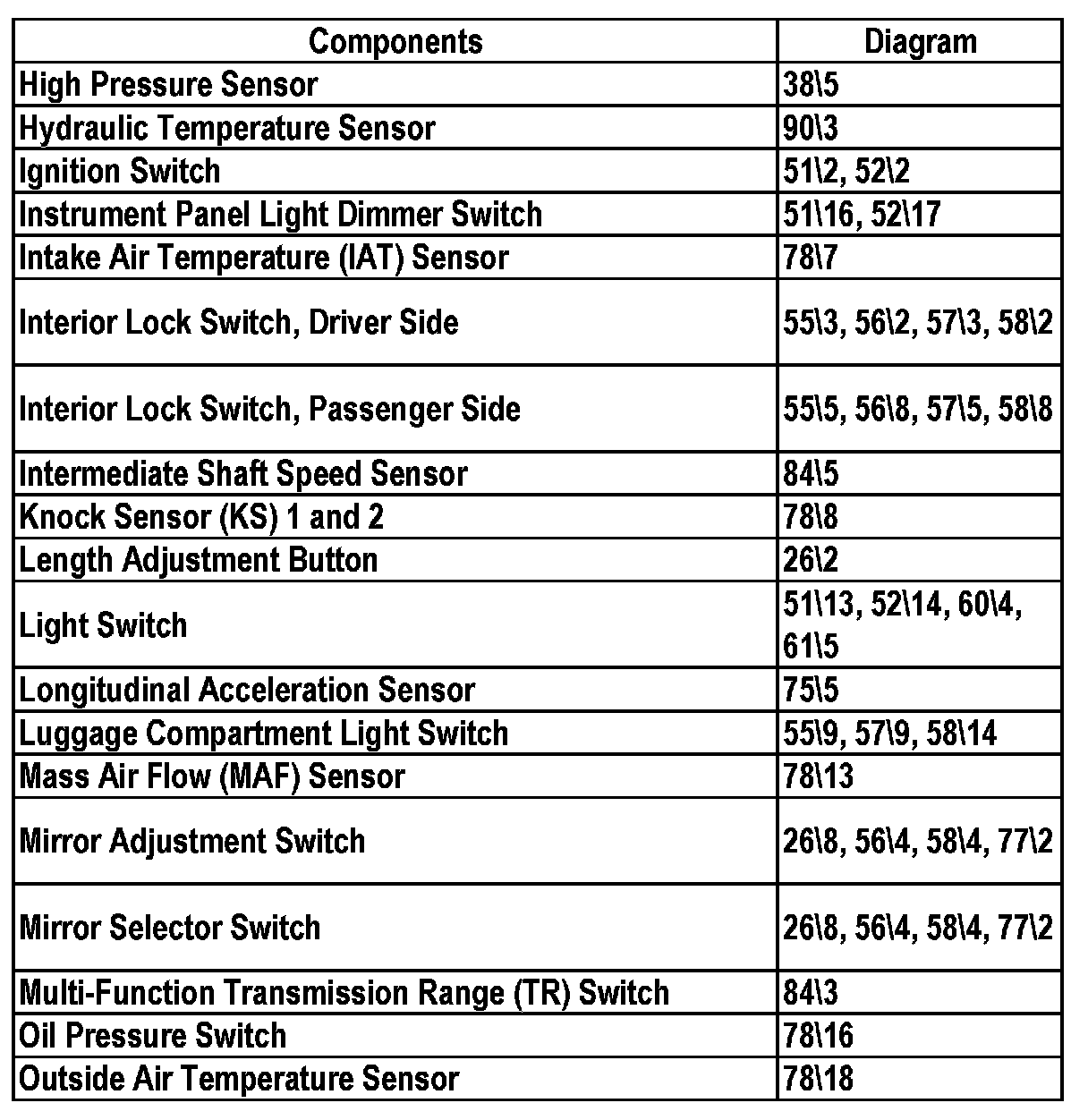

Hi - Ou:




Ou - Sw:

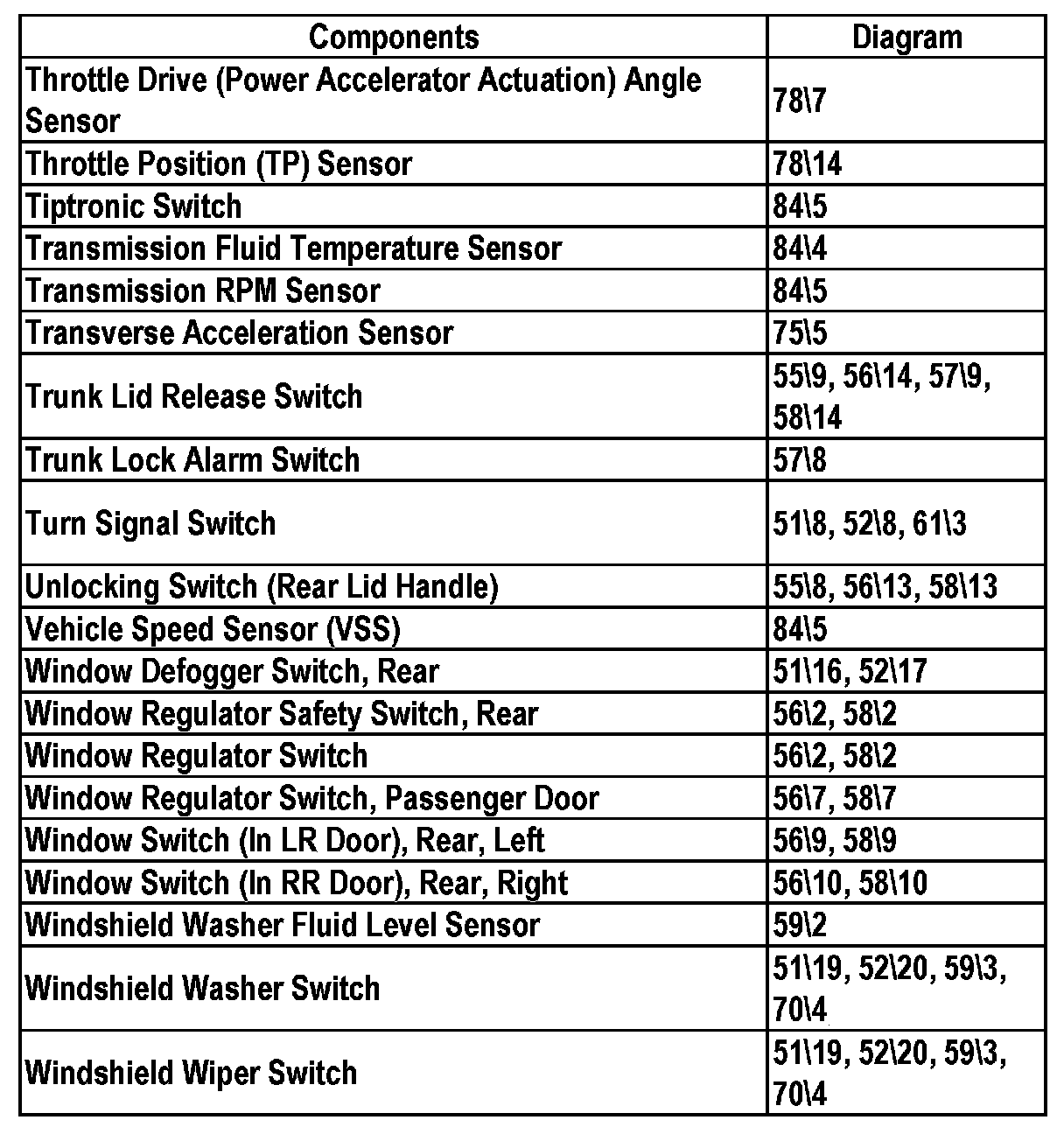

Th - Wi:
