Brake Lamp: Service and Repair

Stoplight, Removing And Installing

Installing

CAUTION:
- Primer dries very fast and permanently stains painted surfaces.
- If any visible part of the vehicle gets stained with primer, clean it thoroughly before primer dries.

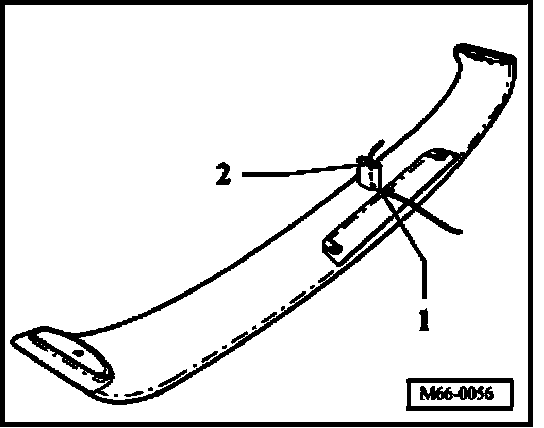

- Slide stoplight wiring harness through hole in stoplight support - 1 -.
- Route wiring harness through drill hole in spoiler and pull wiring harness from support base - 2 -.

NOTE: Make sure that stoplight is pulled tight to support, and if needed adjust slack in wiring harness.

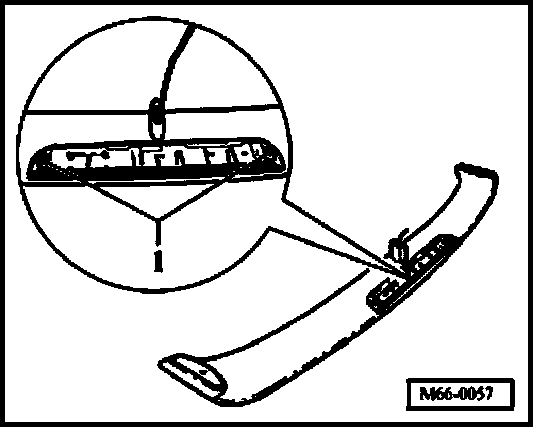

- Attach stoplight to spoiler by screwing stoplight - 1 - into spoiler support base.







- Insert wiring harness into grommet - 1 -.
- Pull grommet toward spoiler support base - arrow -.

Removing
- Removal of stoplight once spoiler has been installed to vehicle is impossible, in that case, whole spoiler kit has to be replaced
- If spoiler has not yet been installed remove in reverse order of installing
