Map Light: Service and Repair

Rear Reading Lights -W11- & -W12-, Removing And Installing

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

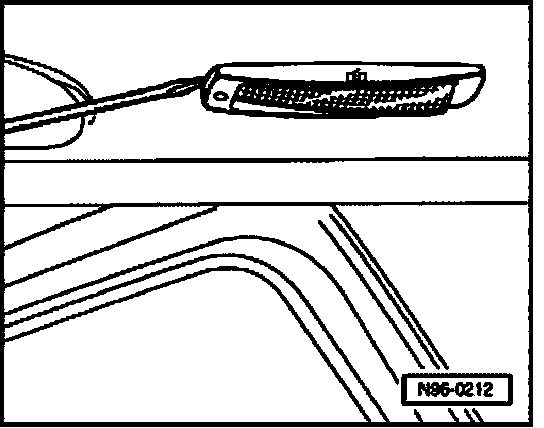

- Insert screwdriver into lens recess and carefully pry reading light out of mounting frame.
- Disconnect electrical connection.

Installing
Install in reverse order of removal.
