Marker Lamp: Service and Repair

Door Warning Lights -M27- & -M28-, Removing And Installing

NOTE: The procedure for removing and installing the door warning lights is the same for all doors.

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

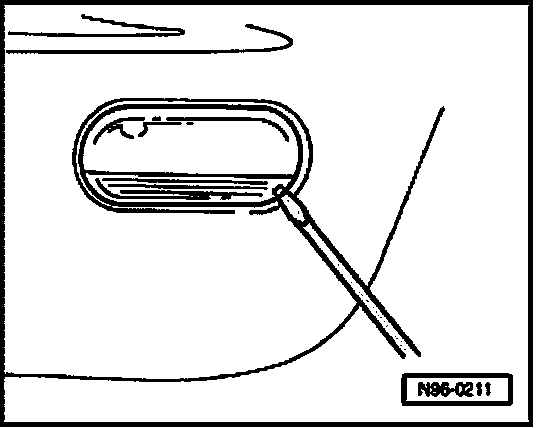

- Insert screwdriver behind lens and carefully pry outward.
- Disconnect electrical connection.

Installing
Install in reverse order of removal.
