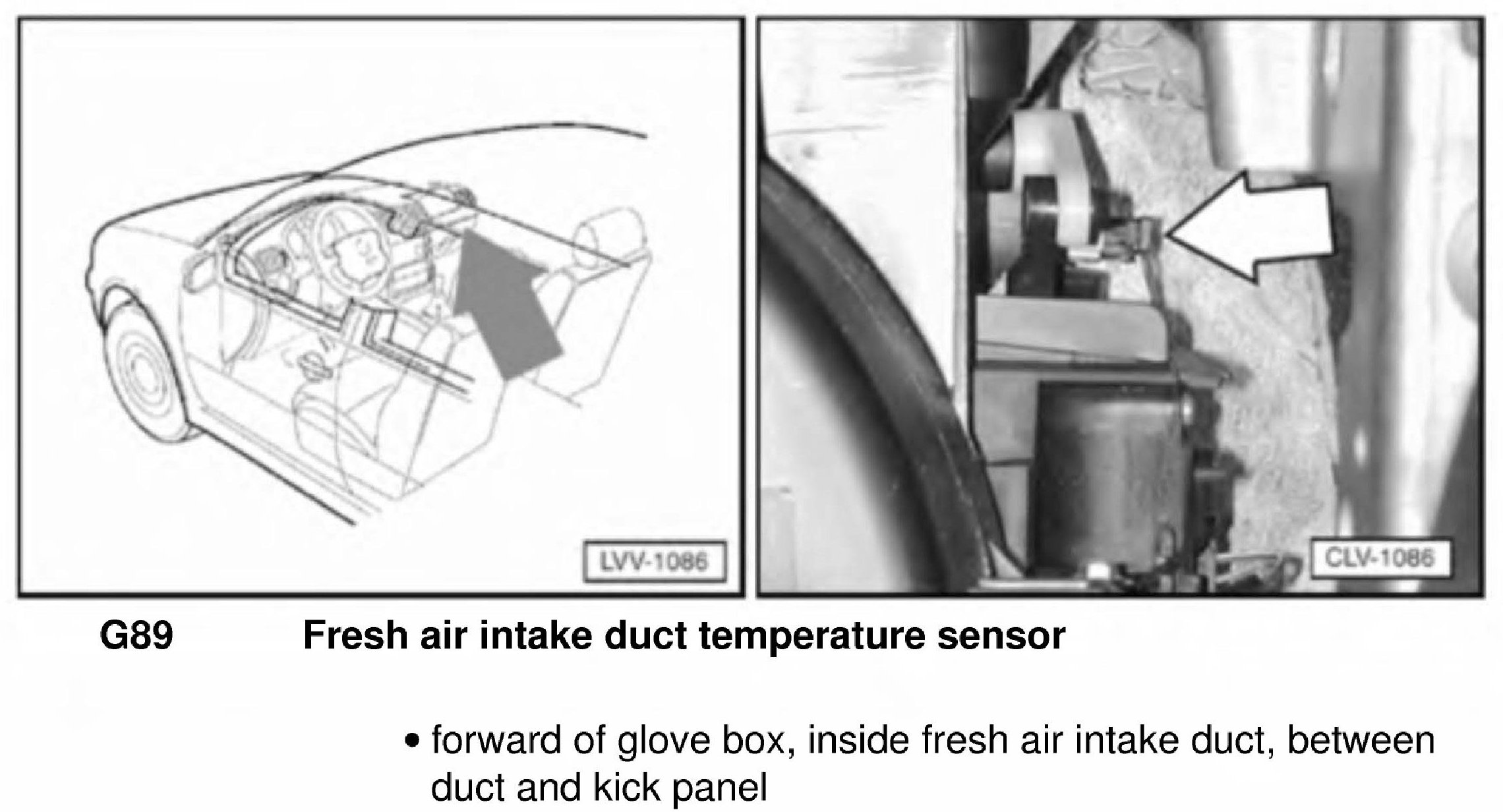

Fresh Air Intake Duct Temperature Sensor G89
Fresh Air Intake Duct Temperature Sensor G89
Fresh Air Intake Duct Temperature Sensor G89:
