Evaporative Emissions System: Diagrams

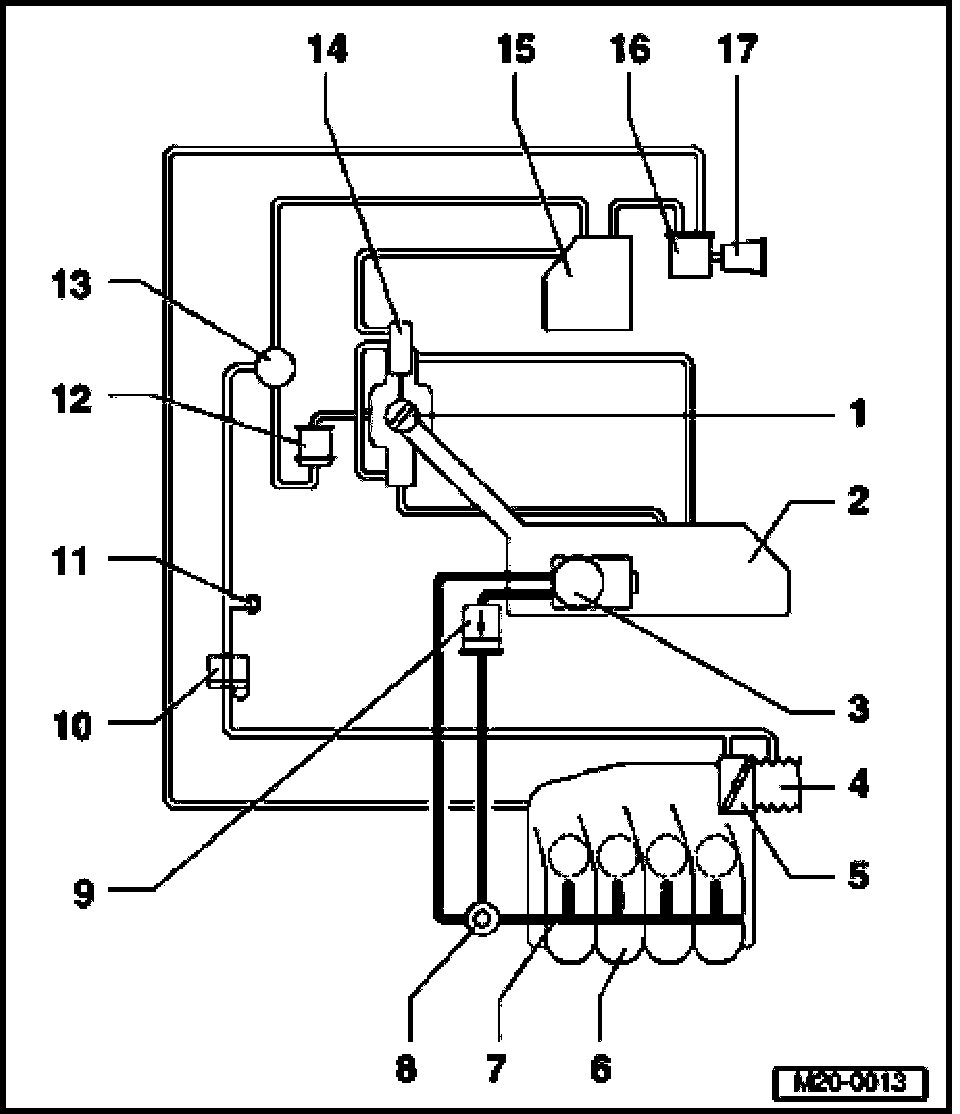

EVAP Canister System, Overview







1. Tank lid unit
2. Fuel tank
3. Fuel pump
4. Intake hose
5. Throttle Valve Control Module -J338-
6. Intake manifold
7. Fuel rail with fuel injectors
8. Fuel pressure regulator
9. Fuel filter
- Installation position: Arrow points in direction of flow
10. Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
- Installation position: Arrow points in direction of flow
- Checking function.
11. Test connection
12. Gravity/overflow valve
13. Pressure retention valve
14. Change-over valve
15. EVAP canister
- Under wheel housing liner in right rear wheel housing
16. Leak detection pump (LDP) -V144-*
- Under wheel housing liner in right rear wheel housing
17. Air filter for diagnostic pump
