Headlamp Washer Reservoir: Service and Repair

Window & Headlight Washer System Reservoir, Removing And Installing

NOTE: Headlight washer system where applicable.

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

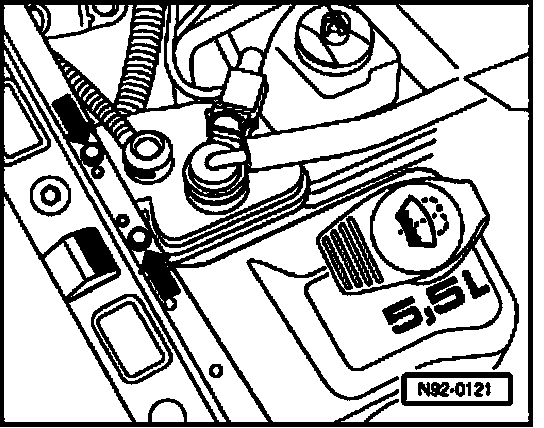

- Remove bolts -arrows- for coolant expansion tank and place tank to side with pipes/hoses still connected.







- Remove bolts -arrows- from activated charcoal filter and place activated charcoal filter to side with pipes/hoses still connected.

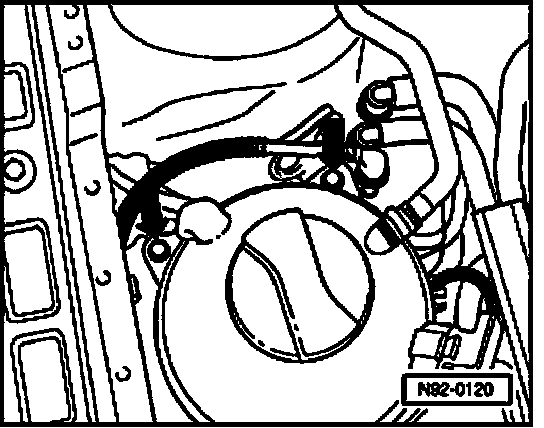

- Remove plastic nut -arrow- from windshield washer fluid reservoir.







- Disconnect washer pump electrical connection.

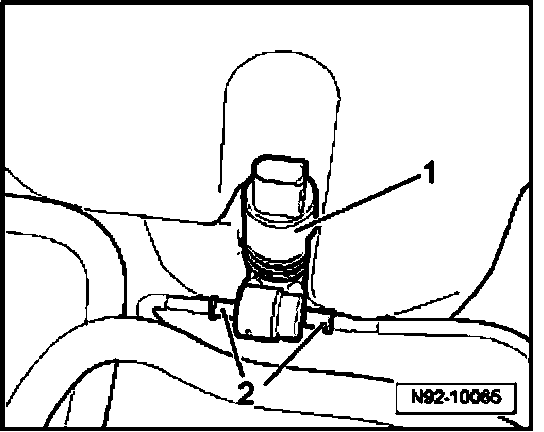

- Remove washer hoses -2- from washer pump -1-.
- Allow any remaining washer fluid to drain into suitable container.
- Where applicable, disconnect headlight washer pump electrical connection.

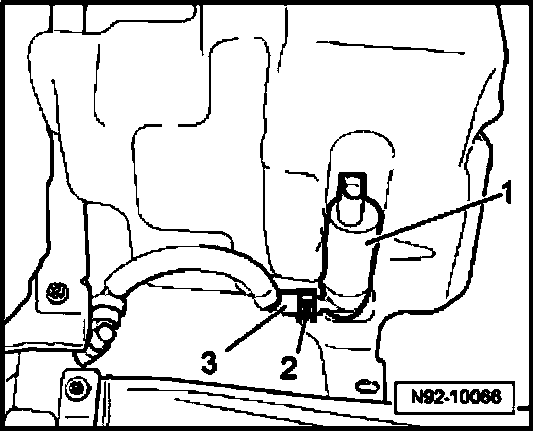

- Release clamp -2- for washer hose connection -2-.
- Remove washer hose connection -2- from washer pump -1-.
- Remove washer reservoir from vehicle.

Installing
Install in reverse order of removal.
